Description

Overview
Dimensions
139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1″)
WiFi Standard WiFi 5
Spatial Streams 4
Coverage Area 25 m² (270 ft²)
Max. Client Count 250+
Uplink GbE

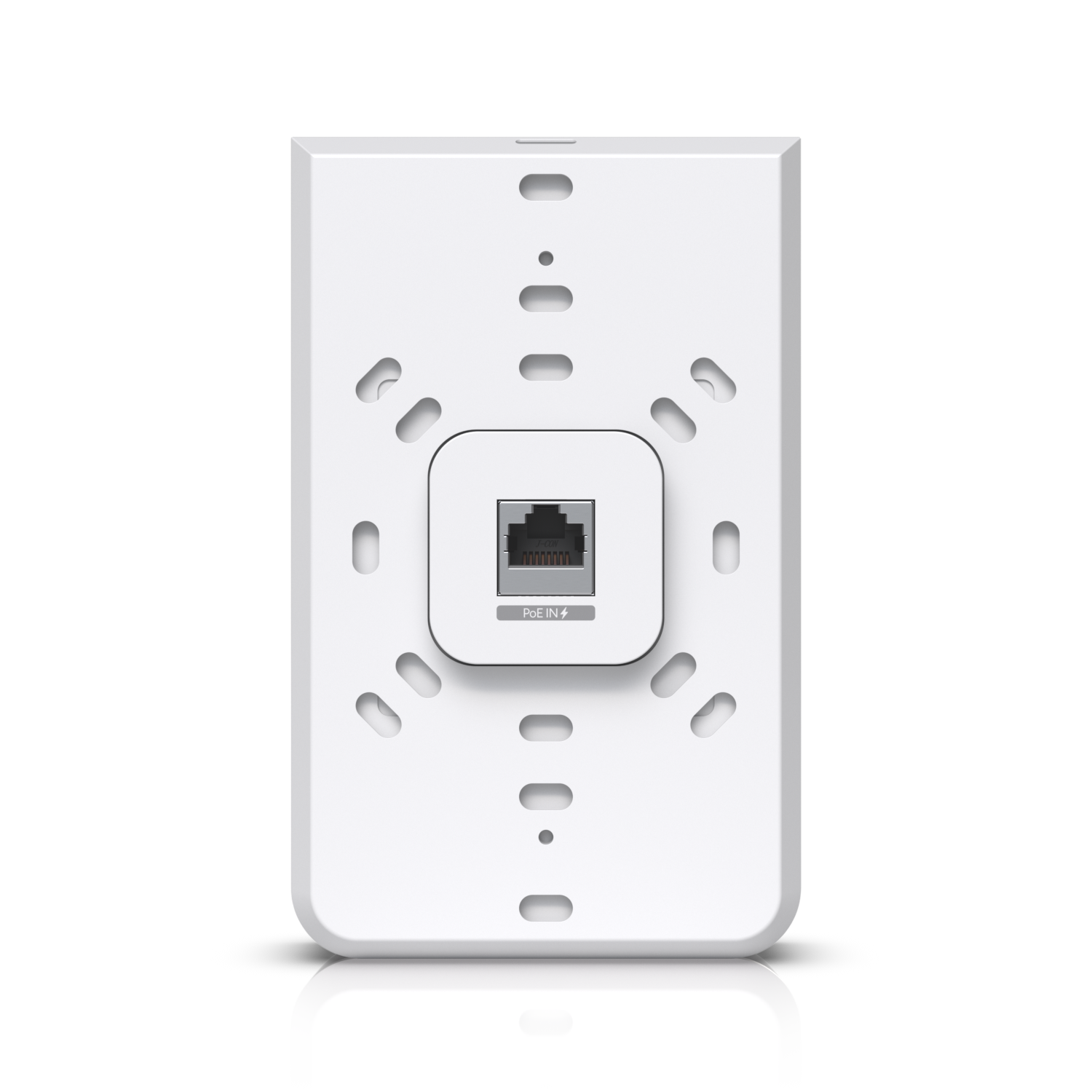

Mounting Wall (Mount Included)
Power Method PoE PoE+ (Required for PoE passthrough)

Performance
MIMO
5 GHz 2 x 2 (DL MU-MIMO)
2.4 GHz 2 x 2 (DL MU-MIMO)
Max. Data Rate
5 GHz 867 Mbps (BW80)
2.4 GHz 300 Mbps (BW40)
Antenna Gain
5 GHz 2 dBi
2.4 GHz 1 dBi
Max. TX Power
5 GHz 20 dBm
2.4 GHz 20 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11ac (WiFi 5) 6.5 Mbps to 867 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 – MCS23, HT 20/40)

Features
Wireless Meshing ✓
Band Steering ✓
802.11v BSS Transition Management ✓
802.11r Fast Roaming ✓
802.11k Radio Resource Management (RRM) ✓
Advanced Radio Management ✓
Passpoint (Hotspot 2.0) ✓

Captive Hotspot Portal
Custom Branding Landing Page ✓
Voucher Authentication ✓
Payment-Based Authentication ✓
External Portal Server Support ✓
Password Authentication ✓
Guest Network Isolation ✓
Private Pre-Shared Key (PPSK) ✓
WiFi Speed Limiting ✓
Client Device Isolation ✓
WiFi Schedules ✓
RADIUS over TLS (RadSec) ✓
Dynamic RADIUS-assigned VLAN ✓

Hardware
Max. Power Consumption 7W (Excluding PoE output)
Supported Voltage Range 44–57V DC

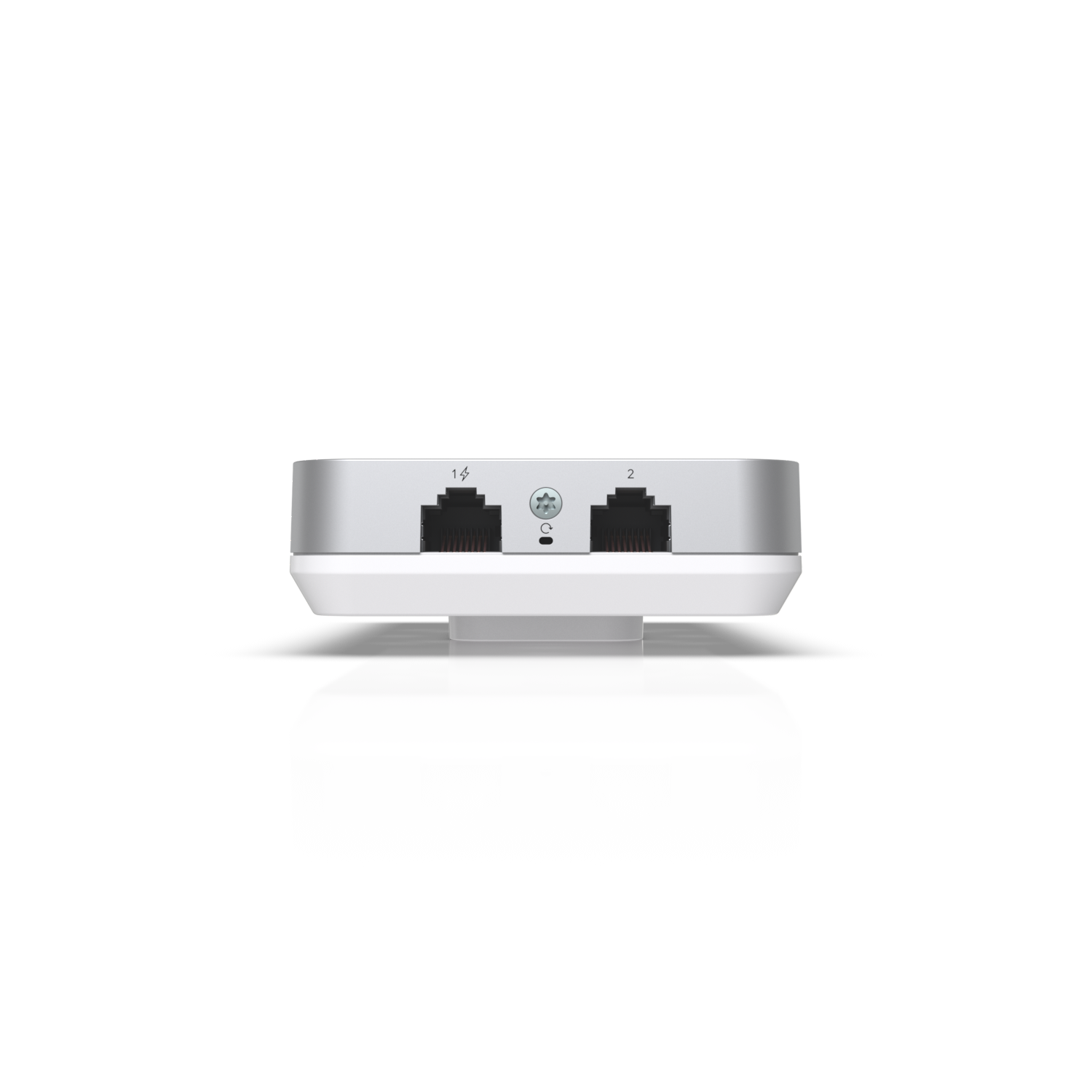

Networking Interface (3) GbE RJ45 ports
Weight 200 g (7.1 oz)
Management Ethernet
Enclosure Material Polycarbonate
LEDs
System Status
Channel Bandwidth
HT 20/40, VHT 20/40/80 (MHz)
NDAA Compliant ✓

Certifications
CE, FCC, IC, Anatel: 04399-18-08356
Operating Frequency
US/CA:
2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz

Worldwide:
2400 – 2483.5 MHz
5150 – 5850 MHz
Ambient Operating Temperature
-10 to 50° C (14 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing

Software
Application Requirements
UniFi Network Version 6.0.45 and later
