| System |
|
| Main Processor |
Industrial-grade embedded processor |
| Operating System |
Embedded Linux |
| Operation Interface |
Web; Local GUI |
| AI |
|
| AI by Camera |
Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map |
| AI by Device |
Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection |
|
| Performance by Device |
2 channels |
| Performance by Camera |
8 channels |
| Face Detection |
|
| Face Attributes |
6 attributes: Gender; age group (6); glasses; expressions (8); mouth mask; beard |
| Performance by Device (1080P) |
1 channel (up to 12 face images/s) |
| Performance by Camera |
8 channels |
| Face Recognition |
|
| Face Database Capacity |
Up to 10 face databases with 20,000 images |
| Performance by Device (1080P) |
1 channel (up to 4 face images/s) |
| Performance by Camera |
8 channels |
| SMD Plus |
|
| SMD Plus by Device |
4 channels |
| SMD Plus by Camera |
16-channel SMD Plus; detects tripwire and intrusion of humans or vehicles; filters false alarms caused by leaves, raindrops, and brightness changes |
| ANPR |
|
| ANPR by Camera |
4 channels |
| Video |
|
| Access Channel |
32 channels |
| Network Bandwidth |
AI Off: 256 Mbps access, 256 Mbps storage, 256 Mbps forwarding; AI On: 160 Mbps access, 160 Mbps storage, 160 Mbps forwarding |
| Resolution |
16MP; 12MP; 8MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability |
AI Off: 1×16MP@20fps; 1×12MP@20fps; 2×8MP@30fps; 4×5MP@30fps; 5×4MP@30fps; 10×1080p@30fps. AI On: 1×16MP@20fps; 1×12MP@20fps; 2×8MP@30fps; 3×5MP@30fps; 4×4MP@30fps; 8×1080p@30fps |
| Video Output |
1×VGA + 1×HDMI; simultaneous/heterogeneous video source output configurable |
| Multi-screen Display |
1st Screen: 1/4/8/9/16/25/36; 2nd Screen: 1/4/8/9 |
| Third-Party Camera Access |
Panasonic; Sony; Samsung; Axis; Pelco; Arecont; ONVIF; Canon; RTSP |
| Compression |
|
| Video |
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
| Audio |
PCM; G.711A; G.711U; G.726 |
| Network |
|
| Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; P2P; Auto Register |
| Mobile Phone Access |
Android; iOS |
| Interoperability |
ONVIF (Profile T/S/G); CGI; SDK |
| Browser |
Chrome; IE9 or later; Firefox |
| Record Playback |
|
| Multi-channel Playback |
Up to 16 channels |
| Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent) |
| Storage Method |
Local HDD; network |
| Backup |
USB device |
| Playback Function |
Play; pause; stop; fast forward; fast backward; rewind; play by frame; full screen; backup; partial enlarge; audio on/off |
| Alarm |
|
| General Alarm |
Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm |
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; cybersecurity exception |
| Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage |
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |

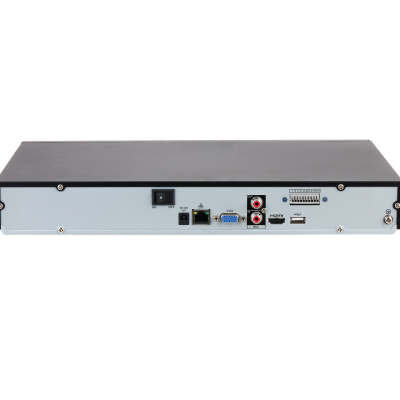

| External Port |
|
| HDD |
4 SATA ports, up to 10TB each |
| USB |
1×Front USB 2.0; 1×Rear USB 3.0 |
| HDMI |
1 (Max. 4K resolution) |
| VGA |
1 |
| Network |
2×RJ-45 10/100/1000 Mbps self-adaptive Ethernet ports |
| RCA Input |
1 |
| RCA Output |
1 |
| Alarm Input |
16 channels |
| Alarm Output |
4 channels |
| RS-232 |
1 channel; debugging and serial data pass-through |
| RS-485 |
1 channel; PTZ control with multiple protocols |
| General |
|
| Power Supply |
100–240V AC, 50/60Hz |
| Power Consumption |
≤8W (without HDD) |
| Net Weight |
4.25 kg (9.35 lb) |
| Gross Weight |
6.48 kg (18.41 lb) |
| Product Dimensions |
440.0 × 415.6 × 76.0 mm (17.32 × 16.36 × 2.99″) (W × L × H) |
| Package Dimensions |
529.0 × 499.0 × 211.0 mm (20.83 × 19.65 × 9.31″) |
| Operating Conditions |
–10°C to +55°C (+10°F to +131°F) |
| Storage Conditions |
0°C to +40°C (32°F to +104°F) |
| Operating Humidity |
10%–93% |
| Storage Humidity |
30%–85% |
| Operating Altitude |
3,000 m (9,842.52 ft) |
| Installation |
Desktop / Rack mount |
| Certifications |
FCC Part 15, Subpart B, Class A; CE-EMC; CE-LVD |
