Description
Hardware Features
| Feature | Details |
|---|---|

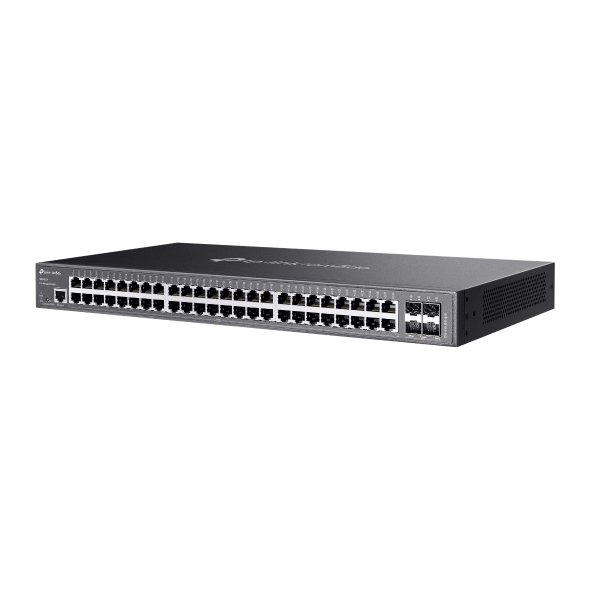

| Interface | • 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan | Fanless |
| Physical Security Lock | √ |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Dimensions (W × D × H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 32.72 W (110V/60Hz) |
| Max. Heat Dissipation | 111.65 BTU/h (110V/60Hz) |
Performance
| Feature | Details |
|---|---|
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.94 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
Quality of Service (QoS)
| Feature | Details |
|---|---|
| Priority Queues | 8 |
| QoS Standards | 802.1p CoS / DSCP Priority |
| Queue Scheduling | SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR |
| Bandwidth Control | Port / Flow-Based Rate Limiting |
| QoS Actions | 802.1P Remark, DSCP Remark |
| Performance | Smoother Performance |
L2 & L2+ Features
| Feature | Details |
|---|---|
| IP Interfaces | 128 IPv4/IPv6 Interfaces |
| Static Routing | 48 IPv4/IPv6 Static Routes |
| ARP | 128 Static ARP Entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP |
| DHCP | DHCP Server, DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay |
| Link Aggregation | Supported |
| Spanning Tree | Supported |
| Loopback Detection | Supported |
| Flow Control | IEEE 802.3x Flow Control |
| Port Mirroring | Supported |
L2 Multicast
| Feature | Details |
|---|---|
| IGMP Groups | Supports 1000 IPv4/IPv6 Groups |
| IGMP Features | IGMP Snooping, IGMP Authentication |
| MVR | Multicast VLAN Registration |
| MLD Snooping | Supported |
| Multicast Filtering | 256 Profiles, 16 Entries per Profile |
Advanced Features
| Feature | Details |
|---|---|
| Omada Features | Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrade, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule |
| ISP Features | L2PT, DLDP, PPPoE ID Insertion, ERPS, IEEE 802.3ah Ethernet Link OAM, DDM, sFlow |
VLAN Features
| Feature | Details |
|---|---|
| VLAN Groups | Up to 4K VLAN Groups |
| VLAN Standards | 802.1Q Tagged VLAN |
| MAC VLAN | 30 Entries |
| Protocol VLAN | 16 Protocol Templates, 16 Protocol VLANs |
| Private VLAN | Supported |
| GVRP | Supported |
| VLAN VPN | VLAN Mapping, VLAN Replace |
| Voice VLAN | Supported |
Access Control List (ACL)
| Feature | Details |
|---|---|
| ACL Types | Time-Based ACL, MAC ACL, IP ACL, IPv6 ACL, Combined ACL, Packet Content ACL |
| MAC ACL | Source/Destination MAC, VLAN ID, User Priority, Ether Type |
| IP ACL | Source/Destination IP, Fragment, Protocol, TCP Flags, TCP/UDP Ports, DSCP/IP ToS |
| Policy Actions | Mirroring, Redirect, Rate Limit, QoS Remark |
| ACL Binding | Port & VLAN |
Security Features
| Feature | Details |
|---|---|
| IP-MAC-Port Binding | 512 Entries |
| IPv6-MAC-Port Binding | 512 Entries |
| DHCP Security | DHCP Snooping, DHCPv6 Snooping, DHCP Filter |
| ARP & ND | ARP Inspection, ND Detection, ND Snooping |
| Source Guard | IPv4 Source Guard (100 Entries), IPv6 Source Guard (100 Entries) |
| DoS Protection | Supported |
| Port Security | Static/Dynamic, Up to 64 MAC Addresses per Port |
| Storm Control | Broadcast, Multicast & Unicast (kbps/ratio/pps) |
| Authentication | IEEE 802.1X, MAB, Guest VLAN, VLAN Assignment, AAA (Including TACACS+), RADIUS |
| Secure Management | HTTPS (SSLv3/TLS 1.2), SSHv1/SSHv2 |
| Port Isolation | Supported |
| Access Control | IP / Port / MAC-Based |
IPv6 Features
| Feature | Details |
|---|---|
| IPv6 Support | Dual IPv4/IPv6 Stack |
| IPv6 Routing | Static IPv6 Routing |
| IPv6 ACL | Supported |
| MLD Snooping | Supported |
| Neighbor Discovery | Supported |
| Path MTU Discovery | Supported |
| ICMPv6 | Supported |
| TCP/UDP | TCPv6 / UDPv6 |
| IPv6 Applications | DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP |
MIB Support
| Feature | Details |
|---|---|
| Supported MIBs | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting (RFC2620), Radius Authentication (RFC2618), Remote Ping & Traceroute (RFC2925), TP-Link Private MIB |
Management Features
| Feature | Details |
|---|---|
| Omada App | Yes (Requires Omada Controller) |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Supported |
| Zero-Touch Provisioning | Supported |
| Management Interfaces | Web GUI, CLI (Console & Telnet), SNMP v1/v2c/v3 |
| Monitoring | RMON, CPU Monitoring, Cable Diagnostics |
| Additional Features | LLDP/LLDP-MED, DHCP AutoInstall, SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, EEE, Password Recovery, SNTP, System Log |
Others
| Feature | Details |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | SG3452X Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10–90% RH (Non-Condensing) |
| Storage Humidity | 5–90% RH (Non-Condensing) |
