Description
Hardware Features
| Feature | Details |
|---|---|

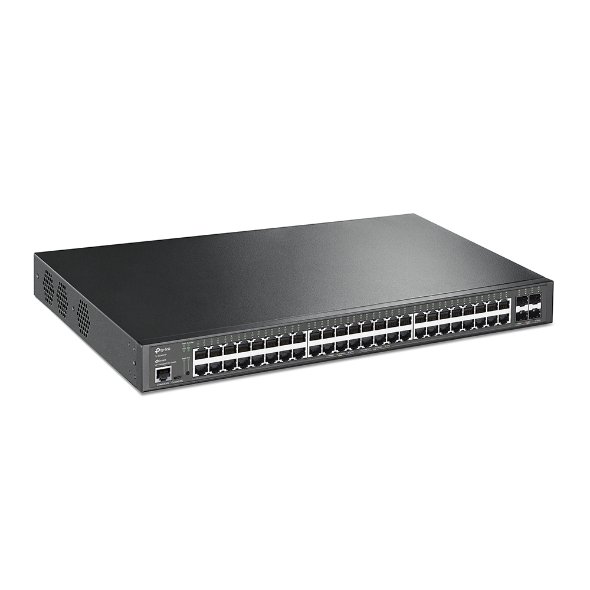

| Model | TL-SG3452XP |
| Interface | • 48× 10/100/1000 Mbps PoE+ RJ45 Ports • 4× 10G SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Power Supply | 100–240V AC, 50/60Hz |
| PoE Standard | IEEE 802.3af/at Compliant |
| PoE Ports | 48× PoE+ Ports (Up to 30W per Port) |
| Total PoE Budget | 500W |
| Dimensions (W × D × H) | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 49.19W (No PD Connected) 635.7W (With 500W PD Connected) |
| Max. Heat Dissipation | 167.85 BTU/hr (No PD Connected) 2169.2 BTU/hr (With 500W PD Connected) |
Performance
| Feature | Details |
|---|---|
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
Quality of Service (QoS)
| Feature | Details |
|---|---|
| Priority Standards | 802.1p CoS / DSCP |
| Priority Queues | 8 |
| Queue Scheduling | SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR |
| Bandwidth Control | Port / Flow-Based Rate Limiting |
| Flow Actions | Mirroring, Redirect, Rate Limit, QoS Remark |
| Additional Features | Smoother Performance |
L3 Features
| Feature | Details |
|---|---|
| IP Interfaces | 128 IPv4/IPv6 Interfaces |
| Static Routing | 48 IPv4/IPv6 Static Routes |
| Static ARP | 128 Entries |
| ARP Features | Proxy ARP, Gratuitous ARP |
| DHCP Features | DHCP Server, DHCP Relay, DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay |
L2 & L2+ Features
| Feature | Details |
|---|---|
| Link Aggregation | Static Link Aggregation, IEEE 802.3ad LACP (Up to 8 Groups, 8 Ports per Group) |
| Spanning Tree | STP (802.1D), RSTP (802.1W), MSTP (802.1S), TC Protect, BPDU Filter, Root Protect |
| Loopback Detection | Port-Based & VLAN-Based |
| Flow Control | IEEE 802.3x Flow Control, HOL Blocking Prevention |
| Mirroring | Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both |
Multicast Features
| Feature | Details |
|---|---|
| IGMP Snooping | IGMP v1/v2/v3, Fast Leave, Querier, Authentication |
| MLD Snooping | MLD v1/v2, Fast Leave, Querier, Static Group Configuration |
| MVR | Supported |
| Multicast Filtering | 256 Profiles, 16 Entries per Profile |
| Limited IP Multicast | Supported |
VLAN Features
| Feature | Details |
|---|---|
| VLAN Capacity | Up to 4K VLAN Groups |
| VLAN Standard | IEEE 802.1Q Tagged VLAN |
| MAC VLAN | 30 Entries |
| Protocol VLAN | 16 Templates / 16 VLANs |
| Private VLAN | Supported |
| QinQ | Port-Based QinQ, Selective QinQ |
| GVRP | Supported |
| Voice VLAN | Supported |
Access Control List (ACL)
| Feature | Details |
|---|---|
| ACL Types | Time-Based, MAC, IP, IPv6, Combined & Packet Content ACL |
| Policy Actions | Mirroring, Redirect, Rate Limit, QoS Remark |
| ACL Binding | Port & VLAN |
Security Features
| Feature | Details |
|---|---|
| IP-MAC-Port Binding | 512 Entries |
| DHCP Security | DHCP Snooping, ARP Inspection |
| IPv4 Source Guard | 100 Entries |
| IPv6-MAC-Port Binding | 512 Entries |
| DHCPv6 Snooping | Supported |
| ND Detection | Supported |
| IPv6 Source Guard | 100 Entries |
| DoS Protection | Supported |
| Port Security | Static/Dynamic (Up to 64 MAC Addresses per Port) |
| Storm Control | Broadcast, Multicast & Unicast |
| 802.1X Authentication | Port-Based, MAC-Based, VLAN Assignment, MAB, Guest VLAN, RADIUS |
| AAA | TACACS+ Support |
| Port Isolation | Supported |
| Secure Management | HTTPS (SSLv3/TLS 1.2), SSHv1/SSHv2 |
| Access Control | IP / Port / MAC-Based |
IPv6 Features
| Feature | Details |
|---|---|
| IPv6 Support | Dual IPv4 / IPv6 Stack |
| Static IPv6 Routing | Supported |
| IPv6 ACL | Supported |
| MLD Snooping | Supported |
| Neighbor Discovery | Supported |
| Path MTU Discovery | Supported |
| ICMPv6 | Supported |
| TCP/UDP | TCPv6 / UDPv6 |
| IPv6 Applications | DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP |
MIB Support
| Feature | Details |
|---|---|
| Supported MIBs | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping & Traceroute MIB (RFC2925), TP-Link Private MIB |
Management Features
| Feature | Details |
|---|---|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller, OC300, OC200, Omada Software Controller |
| Cloud Access | Supported |
| Zero-Touch Provisioning | Supported |
| Management Interface | Web GUI, CLI (Console/Telnet), SNMP v1/v2c/v3 |
| Monitoring | SNMP Trap/Inform, RMON, CPU Monitoring, Cable Diagnostics |
| Additional Features | SDM Template, DHCP/BOOTP Client, LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, EEE, Password Recovery, SNTP, System Log |
Package Contents
| Feature | Details |
|---|---|
| Included Items | TL-SG3452XP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
Environmental Specifications
| Feature | Details |
|---|---|
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10–90% RH (Non-Condensing) |
| Storage Humidity | 5–90% RH (Non-Condensing) |
| System Requirements | Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux |
