Description
Hardware Features
| Specification | Details |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Interface | • 24× 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 2× Combo Gigabit Uplink RJ45/SFP Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Physical Security Lock | Yes |
| PoE Budget | 250 W |
| Dimensions (W × D × H) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | • V4.2: 286.7 W (220 V / 50 Hz with 250 W PD connected); 18.8 W (220 V / 50 Hz with no PD connected) • V5: 293.6 W (110 V / 60 Hz) (with 250 W PD connected) • V6: 291.6 W (110 V / 60 Hz) (with 250 W PD connected) |
| Max. Heat Dissipation | • V4.2: 977.6 BTU/h (220 V / 50 Hz with 250 W PD connected); 64.1 BTU/h (with no PD connected) • V5: 1001.2 BTU/hr (110 V / 60 Hz) (with 250 W PD connected) • V6: 995.09 BTU/hr (110V/60Hz) (with 250 W PD connected) |
Performance
| Specification | Details |
|---|---|
| Switching Capacity | 12.8 Gbps |
| Packet Forwarding Rate | 9.5 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 9216 Bytes |
Software Features
| Specification | Details |
|---|---|
| Quality of Service | • 802.1p CoS / DSCP Priority • 8 Priority Queues • SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Port/Flow Based Rating Limit • Smoother Performance • Flow Actions: Mirror, Redirect, Rate Limit, QoS Remark • Storm Control (Broadcast/Multicast/Unknown-Unicast) |
| L3 Features | • 16 IPv4/IPv6 Interfaces • 48 Static Routes • 128 Static ARP Entries • 316 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay (Interface & VLAN) • DHCP L2 Relay |
| L2 Features | • Static Link Aggregation • Up to 8 Aggregation Groups / 8 Ports per Group • 802.3ad LACP • STP/RSTP/MSTP • STP Security: Loopback Detection, TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection (Port/VLAN Based) • 802.3x Flow Control • HOL Blocking Prevention • Port Mirroring (One-to-One, Many-to-One, Tx/Rx/Both, CPU Mirroring) |
| L2 Multicast | • Supports 511 (IPv4/IPv6) IGMP Groups • IGMP Snooping v1/v2/v3 • Fast Leave • IGMP Snooping Querier • IGMP Authentication • MVR • MLD Snooping v1/v2 • Static Group Config • Limited IP Multicast • Multicast Filtering (256 Profiles, 16 Entries per Profile) |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| VLAN | • Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN (12 Entries) • Protocol VLAN (16 Templates / 16 VLANs) • Private VLAN • GVRP • VLAN VPN (Port-Based QinQ, Selective QinQ) • Voice VLAN |
| Access Control List | • Time-Based ACL • MAC ACL • IP ACL • Combined ACL • Packet Content ACL • IPv6 ACL • Policy (Mirroring, Redirect, Rate Limit, QoS Remark) • ACL Applied to Port/VLAN |
| Security | • IP-MAC-Port Binding • DHCP Snooping • ARP Inspection • IPv4 Source Guard • IPv6-MAC-Port Binding • DHCPv6 Snooping • ND Detection • IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security (Up to 64 MAC Addresses per Port) • Storm Control • IP/Port/MAC Based Access Control • 802.1X Authentication • MAB • Guest VLAN • AAA (TACACS+) • Port Isolation • HTTPS (SSLv3/TLS 1.2) • SSHv1/SSHv2 |
| IPv6 | • Dual IPv4/IPv6 Stack • MLD Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • Neighbor Discovery (ND) • Path MTU Discovery • ICMPv6 • TCPv6/UDPv6 • DHCPv6 Client • Ping6 • Tracert6 • Telnet (v6) • IPv6 SNMP • IPv6 SSH • IPv6 SSL • HTTP/HTTPS • IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • TP-Link Private MIBs |
Management Features
| Specification | Details |
|---|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • CLI through Telnet • SNMP v1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 Groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log |
Others
| Specification | Details |
|---|---|
| Certification | CE, FCC, RoHS |

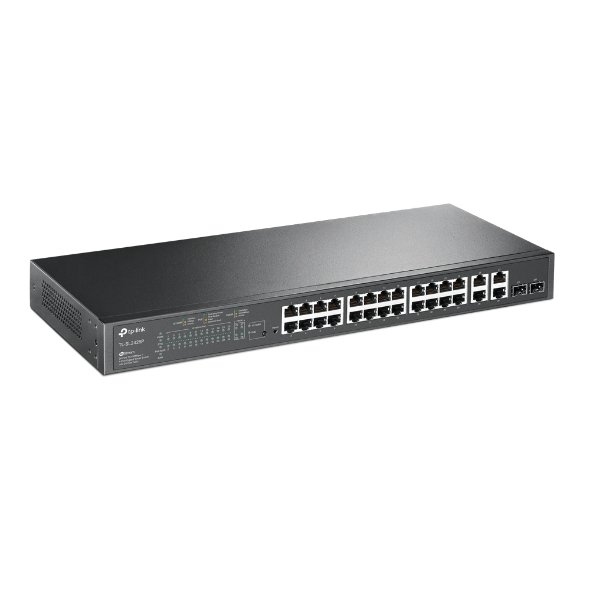

| Package Content | • TL-SL2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, MAC® OS, NetWare®, UNIX®, or Linux |
| Environment | • Operating Temperature: 0℃~50℃ (32℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
