Description
The TP-Link Archer C64 AC1200 Dual Band Gigabit WiFi Router is built with a MediaTek 1.2 GHz CPU, delivering better wireless performance on the 2.4GHz band at 400Mbps than most routers on the market, which typically max out at 300Mbps. The TP-Link Archer C64 AC1200 Dual Band Gigabit WiFi Router lets users connect more devices and stream simultaneously across its dual 2.4GHz and 5GHz bands, with the 5GHz band reaching speeds up to 867Mbps for bandwidth-intensive tasks like video streaming and online gaming.

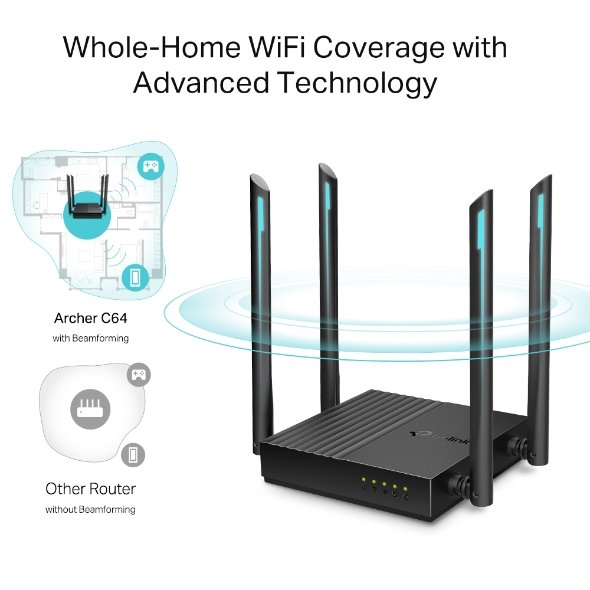

With 4 high-performance external antennas, the Archer C64 boosts WiFi signal throughout the home, while Beamforming technology detects connected devices and concentrates wireless signal strength directly toward them — particularly useful for previously hard-to-reach corners of a house. AC1200 WiFi with MU-MIMO establishes multiple simultaneous connections, reducing bandwidth congestion and latency so every connected device gets a smoother, lag-free experience.
On the wired side, the TP-Link Archer C64 AC1200 Dual Band Gigabit WiFi Router includes Gigabit Ethernet ports (1 WAN + 4 LAN) delivering speeds up to 10x faster than standard Ethernet connections, ideal for plugging in PCs, smart TVs, and game consoles. It supports the latest WPA3 security protocol for stronger encryption and better protection against brute-force attacks, and it’s EasyMesh-compatible, allowing it to connect with other EasyMesh routers to form a seamless whole-home mesh network. The router can also switch from standard router mode into Access Point mode, transforming an existing wired network into a wireless one. Below are the full technical specifications.
TP-Link Archer C64 WIRELESS |
|
|---|---|
| Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | Medium
Dual-Band MU-MIMO Airtime Fairness |
| Working Modes | Router Mode Access Point Mode |
TP-Link Archer C64 SECURITY |
|
|---|---|
| Network Security | SPI Firewall Access Control IP and MAC Binding |
| Guest Network | 1× 2.4 GHz Guest Network 1× 5 GHz Guest Network |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
TP-Link Archer C64 HARDWARE |
|
|---|---|
| Processor | 1.2 GHz CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 12V = 1A |
TP-Link Archer C64 SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE(Dual Access) PPTP(Dual Access) L2TP(Dual Access) |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering UPnP DMZ |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Server DHCP Client List Address Reservation |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
TP-Link Archer C64 OTHER |
|
|---|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DHCP Server App management Alexa service |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-Link Archer C64 TEST DATA |
|
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5 GHz) |
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm |
TP-Link Archer C64 PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |

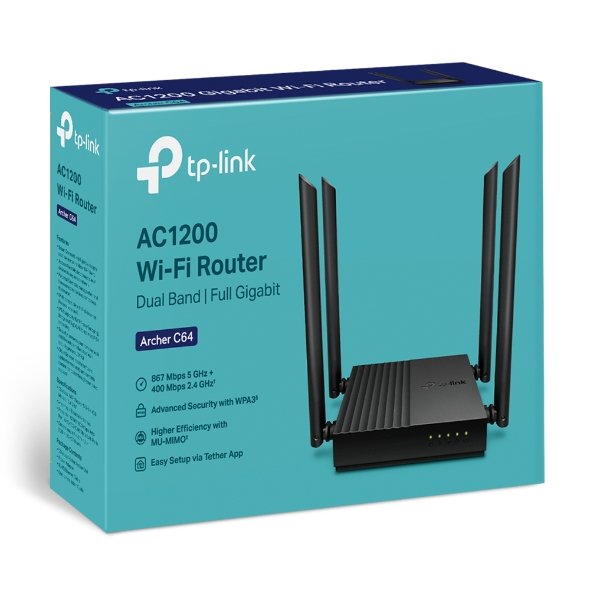

| Package Content | Wireless Router Archer C64 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
