Description

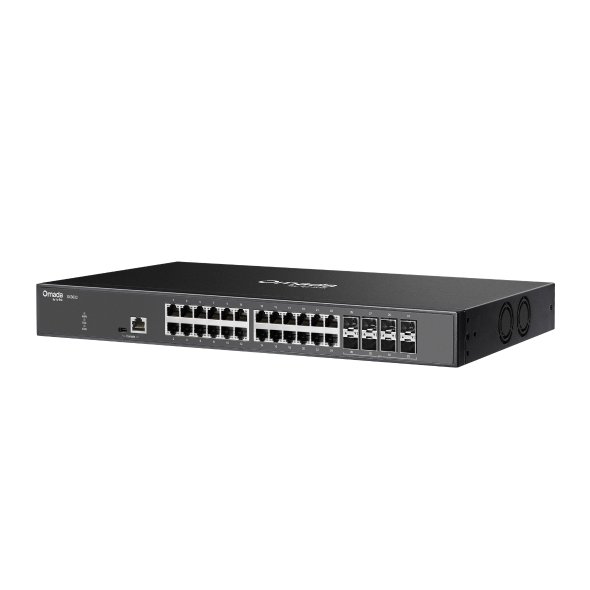

The TP-Link SX3832 Omada Access Max 24-Port 10GBASE-T Switch with 8x 10G SFP+ Slots is a powerful network switch designed for robust performance and reliability in enterprise environments. With features like centralized cloud management, high switching capacity, and versatile port options, it ensures seamless connectivity and efficient data handling for businesses of any size.
Featuring 24 1/2.5/5/10 Gbps RJ45 ports, the TP-Link SX3832 provides multiple high-speed connectivity options, accommodating a variety of devices and ensuring optimal networking performance, particularly for multi-gigabit Wi-Fi 7 and Wi-Fi 6 access points.
Rounding out its connectivity, 8 1/10 Gbps SFP+ slots enhance flexibility and scalability for fiber connectivity, supporting high-speed network environments and giving administrators a dedicated backbone for aggregation-layer deployments.
Performance is backed by serious hardware, with the switch delivering a 640 Gbps switching capacity and 240 Mpps packet forwarding rate, ensuring efficient data transfer and minimal latency, making it ideal for high-demand applications and large, busy networks.
Management is centralized through TP-Link’s Omada Software Defined Networking (SDN) platform, allowing administrators to manage their network seamlessly via the web or the Omada app for enhanced control and monitoring, alongside standalone management options through web, CLI, SNMP, and RMON.
Static Routing helps route internal traffic for higher efficiency, giving the TP-Link SX3832 the intelligence to handle more complex network layouts and reduce unnecessary hops across larger deployments.
The switch supports a comprehensive set of advanced features, including VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM, giving administrators the tools they need to segment traffic, prioritize sensitive applications, and monitor the health of SFP modules connected across the network.
Network resilience is well handled, as ERPS supports rapid protection and recovery in a ring topology, keeping traffic flowing even if a link in the network fails, an important feature for enterprise and ISP deployments where downtime carries real business cost.
Built with a durable metal casing and rack-mountable design, the TP-Link SX3832 is well suited to server rooms, equipment closets, and other professional installation environments where reliability matters most.
With its multi-gigabit RJ45 ports, extensive 10G SFP+ uplinks, and comprehensive Omada SDN integration, the TP-Link SX3832 is a strong foundation for enterprises building fast, scalable, and secure network infrastructure.
TP-Link SX3832 Hardware Features
| Specification | Details |
|---|---|
| Interface | • 24× 10Mbps/100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 8× 1/10G SFP+ Slots** • 1× RJ45 Console Port • 1× USB Type-C Console Port |
| Fan Quantity | 2 |
| Physical Security Lock | √ |
| Power Supply | 100–240 V~ 50/60 Hz |
| Dimensions (W × D × H) | 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm) |
| Surge Protection | 6 kV |
| Mounting | Rack Mountable |
| Max. Power Consumption | • 104.9 W (@110V/60Hz) • 106.5 W (@220V/50Hz) |
| Max. Heat Dissipation | • 357.81 BTU/hr (@110V/60Hz) • 363.23 BTU/hr (@220V/50Hz) |
TP-Link SX3832 Performance
| Specification | Details |
|---|---|
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
TP-Link SX3832 Software Features
| Specification | Details |
|---|---|
| Quality of Service (QoS) | • 8 Priority Queues • 802.1p CoS / DSCP Priority • Queue Scheduling: SP, WRR, SP+WRR • Port/Flow-Based Bandwidth Control • QoS Remark (802.1P, DSCP) |
| L2 & L2+ Features | • 128 IPv4/IPv6 Interfaces • Static Routing (48 IPv4/IPv6 Routes) • Static ARP (128 Entries) • 510 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay (Interface/VLAN) • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Port Mirroring |
| L2 Multicast | • Supports 4,000 IPv4/IPv6 IGMP Groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering (256 Profiles, 16 Entries/Profile) |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†ISP Features: • L2PT (Layer 2 Protocol Tunneling) • DLDP • PPPoE ID Insertion • ERPS • IEEE 802.3ah Ethernet Link OAM • DDM |
| VLAN | • Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN (256 Entries) • Protocol VLAN (16 Templates / 12 VLANs) • Private VLAN • GVRP • VLAN VPN (Mapping, Replace) • Voice VLAN |
| Access Control List (ACL) | • Time-Based ACL • MAC ACL • IP ACL • Combined ACL • Packet Content ACL • IPv6 ACL • Policy (Mirror, Redirect, Rate Limit, QoS Remark) • ACL Applies to Port/VLAN |
| Security | • IP-MAC-Port Binding (512 Entries) • DHCP Snooping • ARP Inspection • IPv4 Source Guard (96 Entries) • IPv6-MAC-Port Binding (512 Entries) • DHCPv6 Snooping • ND Detection & Snooping • IPv6 Source Guard (95 Entries) • DoS Defense • DHCP Filter • Static/Dynamic Port Security (Up to 64 MACs per Port) • Storm Control • 802.1X Authentication • AAA (TACACS+) • Port Isolation • HTTPS (SSLv3/TLS 1.2) • SSHv1/SSHv2 • IP/Port/MAC-Based Access Control |
| IPv6 | • Dual IPv4/IPv6 Stack • MLD Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • ND • Path MTU Discovery • ICMPv6 • TCPv6/UDPv6 • DHCPv6 Client • Ping6 • Tracert6 • Telnet (v6) • IPv6 SNMP • IPv6 SSH • IPv6 SSL • HTTP/HTTPS • IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping/Traceroute MIB (RFC2925) • TP-Link Private MIB |
TP-Link SX3832 Management Features
| Specification | Details |
|---|---|
| Omada App | Yes. Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes |
| Zero-Touch Provisioning | Yes. Requires Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • CLI (Console Port, Telnet) • SNMP v1/v2c/v3 (Trap/Inform, RMON 1,2,3,9) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • IEEE 802.3az Energy Efficient Ethernet (EEE) • Password Recovery • SNTP • System Log |
Others
| Specification | Details |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • SX3832 Switch • Power Cord • Console Cable • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: -5–50 ℃ (23–122 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH (Non-condensing) Storage Humidity: 5–90% RH (Non-condensing) |
