Description
Hardware Features
| Feature | Specification |
|---|---|
| Interface | 5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP Category 3, 4, 5 Cable (Maximum 100m) EIA/TIA-568 100Ω STP (Maximum 100m) 100BASE-TX: UTP Category 5, 5e Cable (Maximum 100m) 1000BASE-T: UTP Category 5, 5e, 6 or Above Cable (Maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 48VDC / 1.25A) |
| PoE Ports (RJ45) | Standard: 802.3af Compliant PoE Ports: Port 1–Port 4 Power Supply: 56W |
| Backbound Bandwidth | 10Gbps |
| MAC Address Table | 2K |
| Dimensions (W × D × H) | 3.9 × 3.9 × 1.0 in. (100 × 98 × 25 mm) |
| Max. Power Consumption | 4.0W (No PD Load) 64.4W (With 56W PD Load) |
| Max. Heat Dissipation | 13.5BTU/h (No PD Load) 219.9BTU/h (With 56W PD Load) |
Software Features
| Feature | Specification |
|---|---|
| Advanced Features | Compatible With IEEE 802.3af Compliant PDs Priority Function MAC Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
Others
| Feature | Specification |
|---|---|
| Certification | FCC, RoHS |

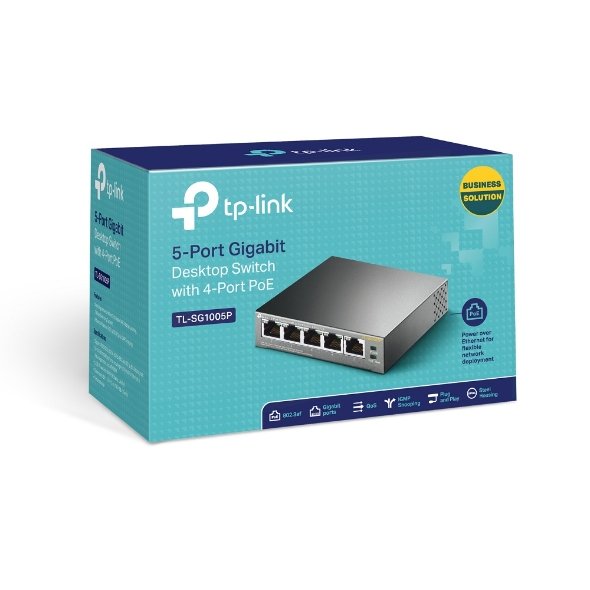

| Package Content | TL-SG1005P Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH Non-Condensing Storage Humidity: 5%~90%RH Non-Condensing |
