Description

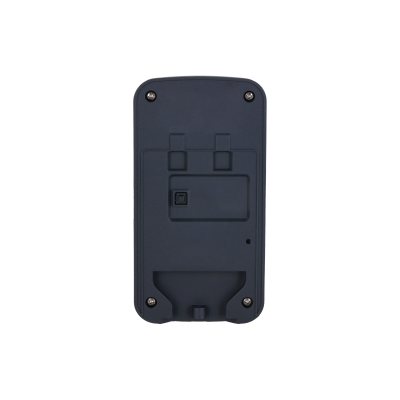

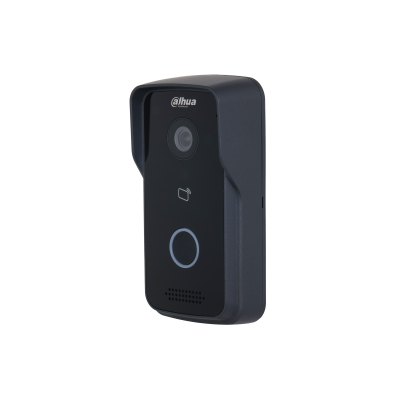

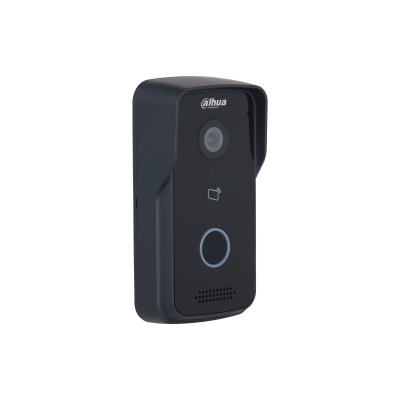

The Dahua VTO2111D-P-S3 is an IP villa door station built for single-family homes needing a reliable, weatherproof video intercom entry point. As part of Dahua’s Lite Series, it combines a megapixel camera, built-in card reader, and flexible unlocking methods in a genuinely compact outdoor unit.

Delivering a 2MP camera with a 1/2.8″ CMOS sensor, the Dahua VTO2111D-P-S3 captures clear video at up to 1080p, supported by WDR and 3D-NR technology that help maintain image clarity in challenging lighting conditions, from bright daylight to low-light evenings.

Night vision is well handled through built-in IR illumination with auto ICR switching, ensuring visitors remain clearly visible even after dark, without needing supplemental exterior lighting at the entryway.

Access control is a defining strength of this door station. With a built-in card reader module supporting up to 10,000 cards, residents can unlock the door via card, from the indoor monitor, or remotely through the Dahua app, giving households genuine flexibility in how they manage entry.

Locking control extends further than most villa stations, with the ability to control two separate locks through its device ports, useful for properties with multiple secured entry points managed from a single door station.

Communication is handled through built-in two-way audio, using G.711a, G.711u, and PCM voice codecs alongside echo and noise suppression, letting residents talk clearly with visitors either through the indoor monitor or the mobile app from anywhere.

Built for the outdoors, the VTO2111D-P-S3 carries an IP65 weatherproof rating (silicone sealant required during installation per the quick start guide), ensuring dependable performance through rain, dust, and everyday outdoor exposure.

Connectivity is genuinely flexible, powered by either a 12VDC 1A power supply or standard PoE, and supporting 1-channel RS485 alongside ONVIF and CGI interoperability, easily integrating with the broader Dahua video intercom and surveillance ecosystem.

Management is centralized and remote-capable, letting the door station be managed through Dahua’s management platform, with support for voice calls directly between the app and the door station itself, no matter where the resident happens to be.

Altogether, the Dahua VTO2111D-P-S3 combines a sharp 2MP camera, flexible multi-method unlocking, and rugged IP65 durability, making it a smart, dependable choice for villa and single-family home installations needing a complete, weatherproof video intercom entry point.
