Description

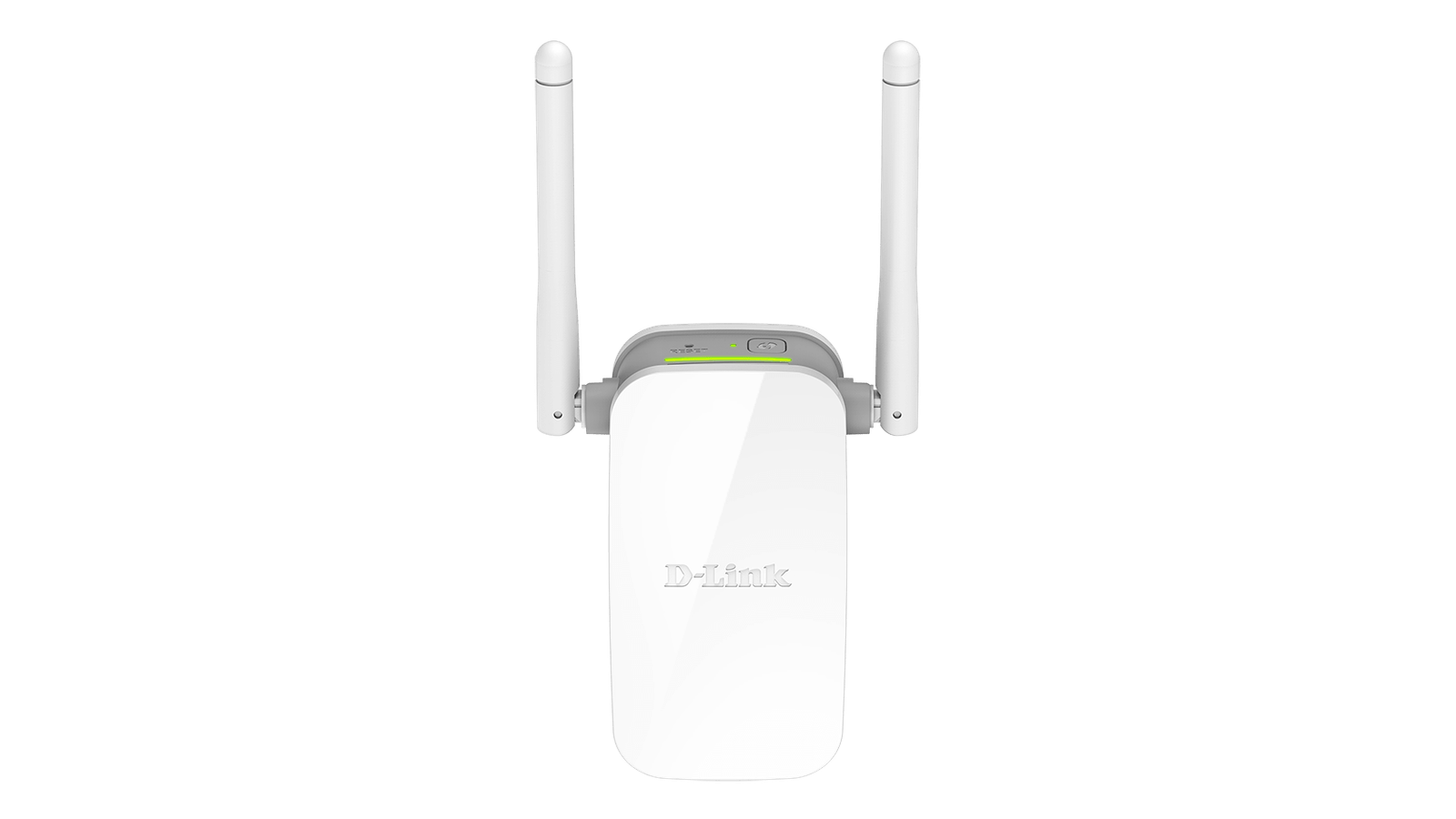

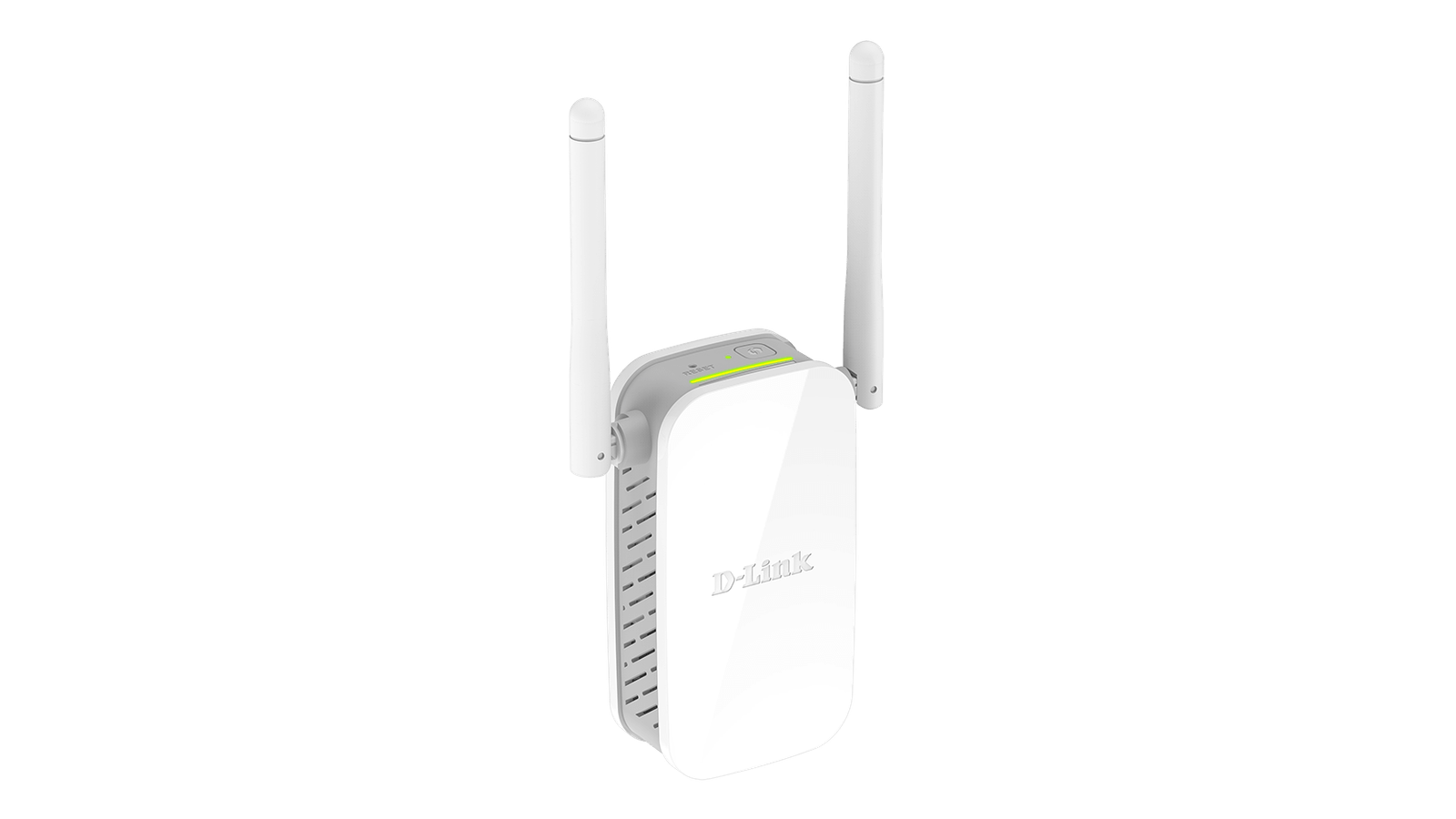

The D-Link DAP-1325 is a compact, plug-in Wi-Fi range extender designed to eliminate dead zones and improve wireless coverage throughout a home or office. It connects to your existing router and rebroadcasts its signal, extending reliable Wi-Fi into rooms, floors, or corners the main network struggles to reach.
Featuring two external antennas, the extender delivers Wireless N speeds of up to 300 Mbps on the 2.4 GHz band, making it suitable for everyday browsing, video streaming, and online gaming. It’s compatible with any router brand and supports 802.11g/b/n networking standards, so it works alongside most existing home or office setups without compatibility concerns.
One of the standout features of this range extender is its Smart Signal LED technology, which takes the guesswork out of placement. Instead of struggling to gauge connection strength, users get instant visual feedback, making it easy to test different locations and quickly find the spot with the best signal between the extender and the main router.
Setup is straightforward thanks to WPS push-button support, letting compatible devices connect securely with a single press. A built-in setup wizard also allows configuration through the D-Link Wi-Fi app on a mobile device, so a computer isn’t required to get the extender running. Once configured, the unit can simply be moved to the ideal spot in the home for reliable coverage.
Security is well covered, with support for WPA and WPA2 encryption protecting the extended network from unauthorized access. A single Ethernet LAN port is also included, allowing a wired device without built-in Wi-Fi — such as a smart TV, game console, or desktop PC — to connect through the extender and join the network.
Physically, the unit has a compact, sleek design that blends easily into most environments without taking up much space or cluttering an outlet. It also holds RoHS certification, reflecting a more environmentally conscious build compared to some competing range extenders.
Overall, this range extender offers a dependable, budget-friendly way to solve weak Wi-Fi coverage in specific rooms. With its combination of dual antennas, Smart Signal LED placement guidance, WPS one-touch setup, and solid 300 Mbps performance, it’s a practical option for anyone looking to extend their existing wireless network without added complexity.
D-Link DAP-1325 Product Overview
| Specification |
Details |
| Dimensions |
97.9 × 50.7 × 48.7 mm (3.85 × 2.00 × 1.91 inches) |
| Weight |
97 g (3.42 oz) |
| Power Input |
110 to 240 V AC, 50/60 Hz |
| Plug Type |
Region Dependent |
D-Link DAP-1325 Device Interfaces
| Specification |
Details |
| Wireless LAN |
802.11n/g Wireless LAN |
| Ethernet Port |
1 × 10/100 Fast Ethernet Port |
| Buttons |
Reset Button, WPS Button |
D-Link DAP-1325 LED Indicators
| Indicator |
Details |
| Status/WPS |
Yes |
| Wi-Fi Signal Strength Indicator |
3-Segment Indicator |
D-Link DAP-1325 Wireless Standards
D-Link DAP-1325 Wireless Security
| Specification |
Details |
| Wi-Fi Security |
Wi-Fi Protected Access (WPA/WPA2) |
| WPS |
WPS (PBC) |
D-Link DAP-1325 Features
| Feature |
Availability |
| D-Link One-Touch Extender Setup |
Yes |
D-Link DAP-1325 Device Management
| Specification |
Details |
| Mobile App Support |
QRS Mobile App for iPhone, iPad, iPod touch, and Android Devices |
| Management Interface |
Web UI |
D-Link DAP-1325 Environmental
| Specification |
Details |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
| Operating Humidity |
10% to 90% Non-condensing |
| Storage Humidity |
5% to 90% Non-condensing |
D-Link DAP-1325 Certifications
| Specification |
Details |
| Certifications |
FCC, IC, CE, RCM, IDA, CB, LVD, UL, WPS, Wi-Fi Certified, RoHS |
