The HSGQ-G02 2 Port GPON OLT is a small-capacity cassette-style Optical Line Terminal built to meet ITU-T G.984/G.988 standards, along with the relevant China Telecom and China Unicom GPON specifications. This makes the HSGQ-G02 2 Port GPON OLT a dependable choice for ISPs, system integrators, and installers who need more downlink capacity than a single-port model while still keeping the deployment compact and budget-friendly.

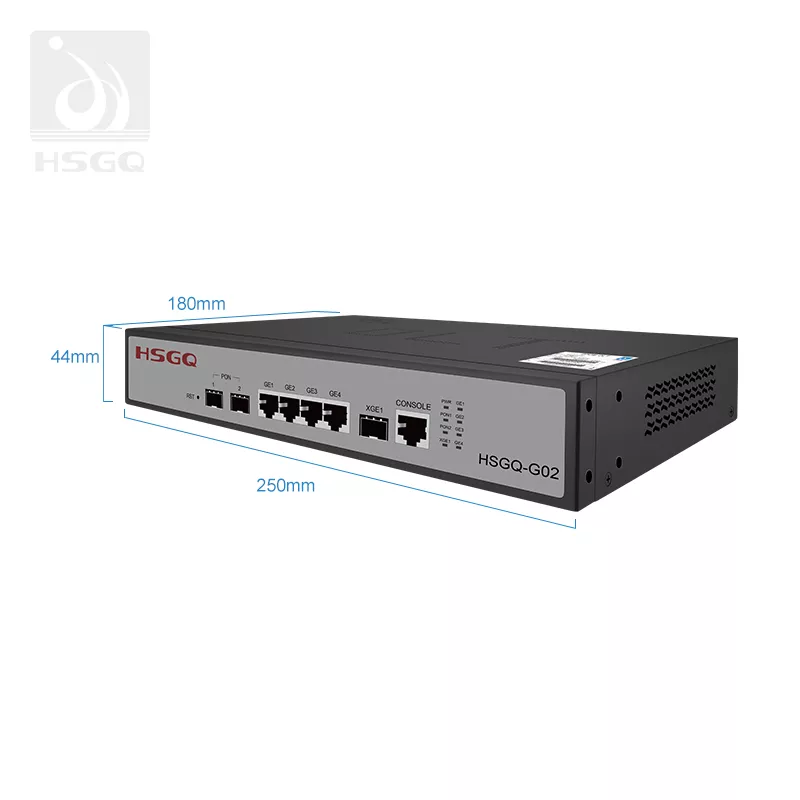

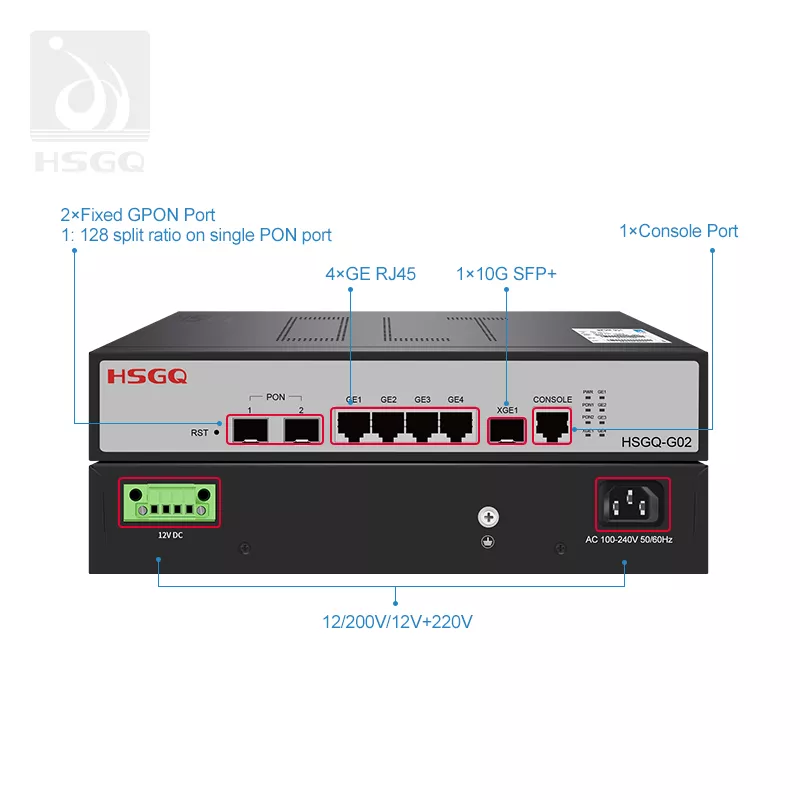

The HSGQ-G02 2 Port GPON OLT provides 2 downlink GPON ports, 4 Gigabit Ethernet RJ45 ports, and 1 10G SFP+ uplink port, all housed in a space-saving 1U chassis for easy installation. Each GPON port supports a 1:128 split ratio, and the unit can serve terminal access up to 60km on a single fiber run, giving it enough reach for both dense urban deployments and longer suburban fiber routes.

Beyond raw port count, the HSGQ-G02 2 Port GPON OLT is built with the kind of traffic management features that keep a growing FTTH network running smoothly rather than just adding subscribers. Flexible Dynamic Bandwidth Allocation lets operators fine-tune upstream and downstream traffic speeds per subscriber, while support for port aggregation and port-based traffic shaping helps prevent any single connection from overwhelming the rest of the network. A 16K MAC address table gives the unit enough capacity to track a meaningful number of connected devices as the subscriber base expands. Redundant power input, supporting both AC and DC, adds an extra layer of protection against outages in installations where consistent uptime matters most.

Built for reliable long-distance optical fiber access, the HSGQ-G02 2 Port GPON OLT offers excellent management, maintenance, and monitoring capability, along with a flexible network mode that integrates cleanly with an existing network management system. It’s a practical entry point for broadcast triple-play services, video surveillance networks, enterprise LAN access, and IoT deployments. Below are the full technical specifications.
