Description

The Ruijie RG-AirMetro550G-B is a high-performance point-to-multipoint (PTMP) wireless bridge base station built for large-scale outdoor deployments such as WISP networks, CCTV backhaul, town and city road connectivity, and factory environments. It serves as the central hub for the RG-AirMetro Series, connecting multiple remote sites from a single unit.

Utilizing the IEEE 802.11ac standard, the Ruijie RG-AirMetro550G-B operates in the 5 GHz band with 2×2 MIMO technology, delivering a maximum wireless rate of up to 867 Mbps for bridging—more than sufficient bandwidth for demanding point-to-point (PTP) and point-to-multipoint (PTMP) services.

Range is a standout feature of this base station. With support for up to 10 km of wireless transmission distance when paired with a compatible antenna, the RG-AirMetro550G-B is designed to be mounted onto 90°, 120°, or 360° antennas depending on the deployment scenario, giving network planners flexibility across different coverage requirements.

Capacity is substantial as well, supporting a maximum of 1:32 PTMP links from a single base station, making it ideal for medium to large-scale wireless bridge networks that need to connect numerous remote CPE devices simultaneously.

Setup simplicity sets this base station apart from typical outdoor bridge solutions. Its one-touch pairing functionality allows administrators to establish the base station in just 30 seconds, significantly reducing installation time and technical overhead for field deployments.

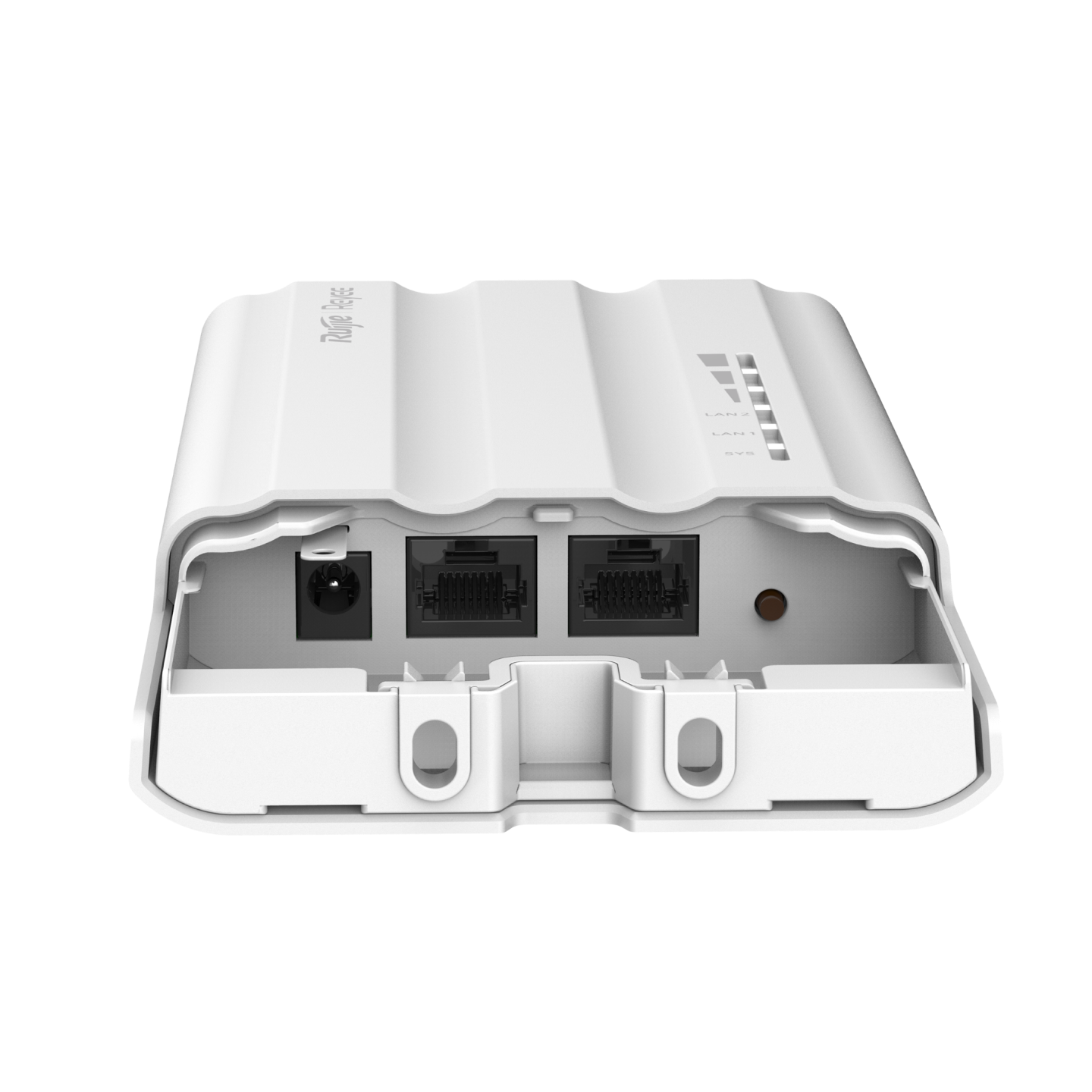

Connectivity comes through two Gigabit Ethernet (GE) ports, giving installers flexible options for wired connections and network expansion at the base station location.

Management is centralized through Ruijie’s all-in-one cloud management platform, allowing administrators to monitor, configure, and manage the base station and all connected devices remotely, with easy-to-use tools for link optimization and spectrum scanning to maximize network performance.

Built for the outdoors, the RG-AirMetro550G-B carries an IP55 weatherproof rating along with 6 kV surge protection and ±24 kV ESD protection, ensuring dependable operation in harsh environmental conditions typical of exterior installations.

Power flexibility is included as well, with support for 24V Passive PoE and 12V DC input, and compatibility with solar power supply setups, making it suitable for remote sites without access to standard power infrastructure.

Altogether, the Ruijie RG-AirMetro550G-B combines long-range Wi-Fi 5 PTMP performance, rapid one-touch deployment, and rugged IP55 durability, making it a smart choice for organizations building large-scale outdoor wireless bridge networks.

RG-AirMetro550G-B Hardware Specifications

RG-AirMetro550G-B Wi-Fi Radio

SpecificationDetails
Radio design	Dual-radio3 spatial streams● Radio 1: 2.4 GHz, 1 spatial stream: 1 x 1, SISO● Radio 2: 5 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width	Auto/20/40 MHz
5 GHz channel width	Auto/20/40/80 MHz

RG-AirMetro550G-B Dimensions and Weight

SpecificationDetails
Product dimensions (W x D x H)	98.5 mm x 29 mm x 200 mm (3.88 in. x 1.14 in. x 7.87 in.) (excluding mounting bracket)

RG-AirMetro550G-B Power Supply and Consumption

SpecificationDetails
Number of PoE In ports	1

RG-AirMetro550G-B Environment and Reliability

SpecificationDetails
Operating temperature	–40°C to +80°C (–40°F to +176°F)
Operating humidity	5% RH to 95% RH (non-condensing)
MTBF	400,000 hours (about 45 years)
IP rating	IP55
