Ubiquiti NanoStation 5AC: A Complete Guide to the 5GHz airMAX ac CPE Radio

For WISPs, integrators, and businesses needing dependable wireless links between buildings or out to subscriber locations, the Ubiquiti NanoStation 5AC (NS-5AC) has become one of the most recognizable names in outdoor wireless networking. It carries forward the iconic NanoStation form factor while adding Ubiquiti’s airMAX ac technology, positioning it as a capable option for both point-to-point (PtP) and point-to-multipoint (PtMP) deployments.

This article covers what the NanoStation 5AC is, its technical specifications, why its design choices matter for network operators, and where it fits into common wireless deployment scenarios.

What Is the Ubiquiti NanoStation 5AC?

The Ubiquiti NanoStation 5AC is an integrated CPE (Customer Premises Equipment) radio — the antenna and radio are built into a single, self-contained unit, unlike separate radio-and-dish setups such as airFiber. It is <cite index=”14-1″>engineered to provide superior wireless performance for Point-to-MultiPoint (PtMP) applications</cite>, and in a PtP setup, <cite index=”14-1″>two NanoStation 5AC devices are configured to connect two points directly</cite>, with one unit acting as a ‘Station’ and the other as an ‘Access Point’ to form a wireless bridge between two sites.

Key Technical Specifications

airMAX ac Technology

At the core of the Ubiquiti NanoStation 5AC is Ubiquiti’s proprietary airMAX ac technology, which <cite index=”14-1″>incorporates a patented Time Division Multiple Access (TDMA) protocol that significantly improves network scalability, throughput, and latency performance</cite>. This protocol <cite index=”14-1″>enables each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller</cite>, which reduces collisions and maximizes airtime efficiency — a meaningful advantage over standard Wi-Fi protocols in multi-client environments.

Throughput and Frequency

The radio delivers <cite index=”10-1″>up to 450+ Mbps real TCP/IP throughput</cite> and operates in the 5 GHz band, which <cite index=”14-1″>is less congested than the more commonly used 2.4 GHz band, offering cleaner signal channels for wireless communication</cite>.

Processing Hardware

Under the hood, the Ubiquiti NanoStation 5AC runs on a <cite index=”16-1″>560 MHz Atheros MIPS 74Kc processor with 64 MB DDR2 memory</cite>. The custom airMAX ac silicon provides hardware acceleration to the TDMA scheduler, supporting the higher data rates and denser modulation the ac protocol relies on.

Antenna and Beamwidth

TheUbiquiti NanoStation 5AC integrates a 16 dBi antenna with <cite index=”16-1″>dual linear polarization and a 45° beamwidth</cite>, giving it a focused radiation pattern suited to longer-distance links while still offering enough coverage angle for practical alignment.

Channel Bandwidth Flexibility

The radio supports <cite index=”16-1″>10/20/30/40/50/60/80 MHz channel bandwidths</cite>, letting operators tune spectrum usage based on regulatory limits and local RF conditions.

Networking and Power

The Ubiquiti NanoStation 5AC includes a <cite index=”10-1″>Gigabit Ethernet networking interface</cite>, and the standard NS-5AC model <cite index=”12-1″>provides a secondary Ethernet port with software-enabled PoE</cite>, which can be used to power an external device such as a PoE security camera. Power is supplied via a <cite index=”12-1″>24V, 0.5A Gigabit PoE adapter</cite>, included with the standard model.

Wi-Fi Management Radio

Each Ubiquiti NanoStation 5AC model <cite index=”12-1″>integrates a separate Wi-Fi radio for fast and easy setup using your mobile device</cite>. Combined with the UMobile app, this <cite index=”16-1″>provides instant accessibility to the airOS configuration interface</cite>, letting installers set up, configure, and manage the device without needing to be physically wired in — useful during tower or rooftop installs.

Build Quality and Environmental Rating

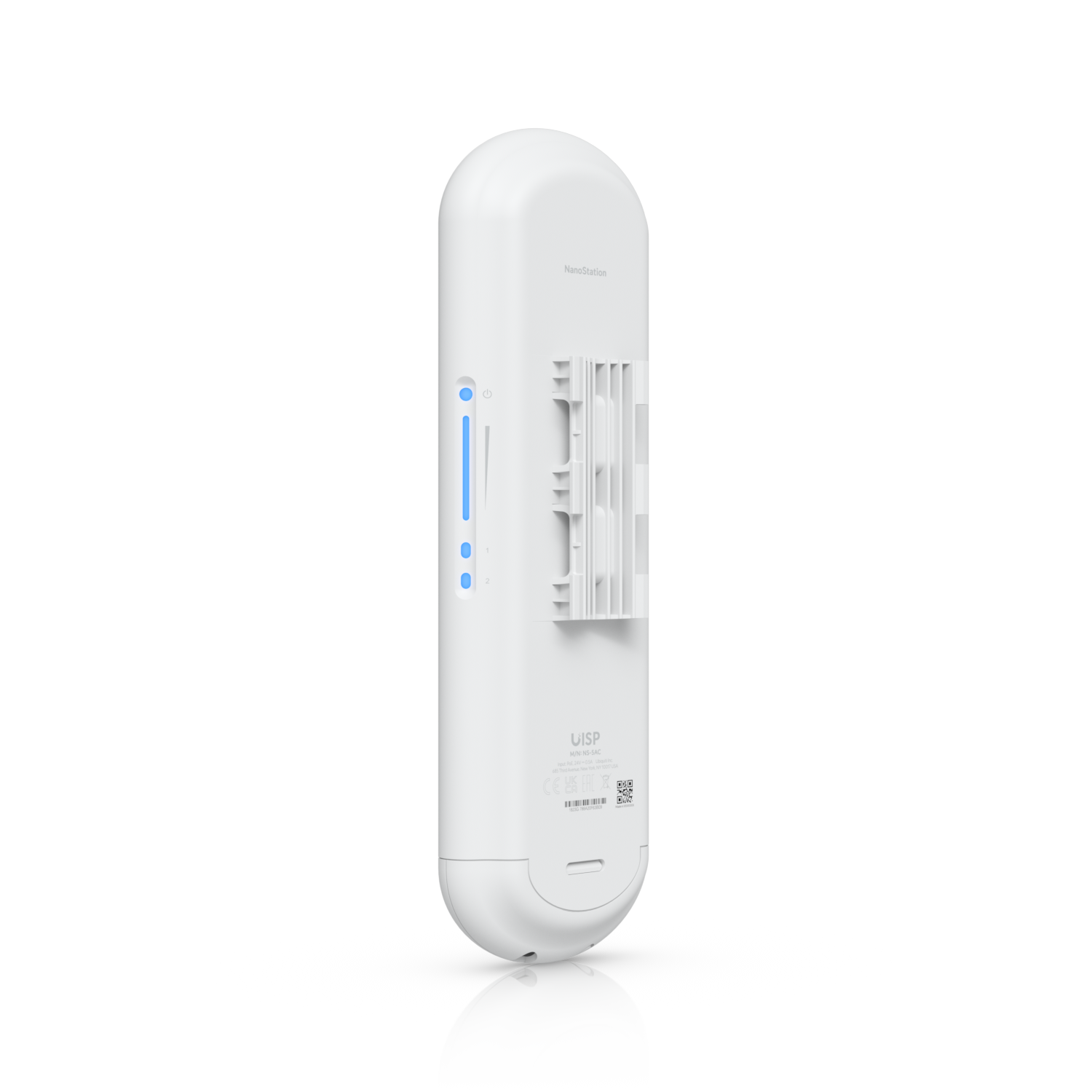

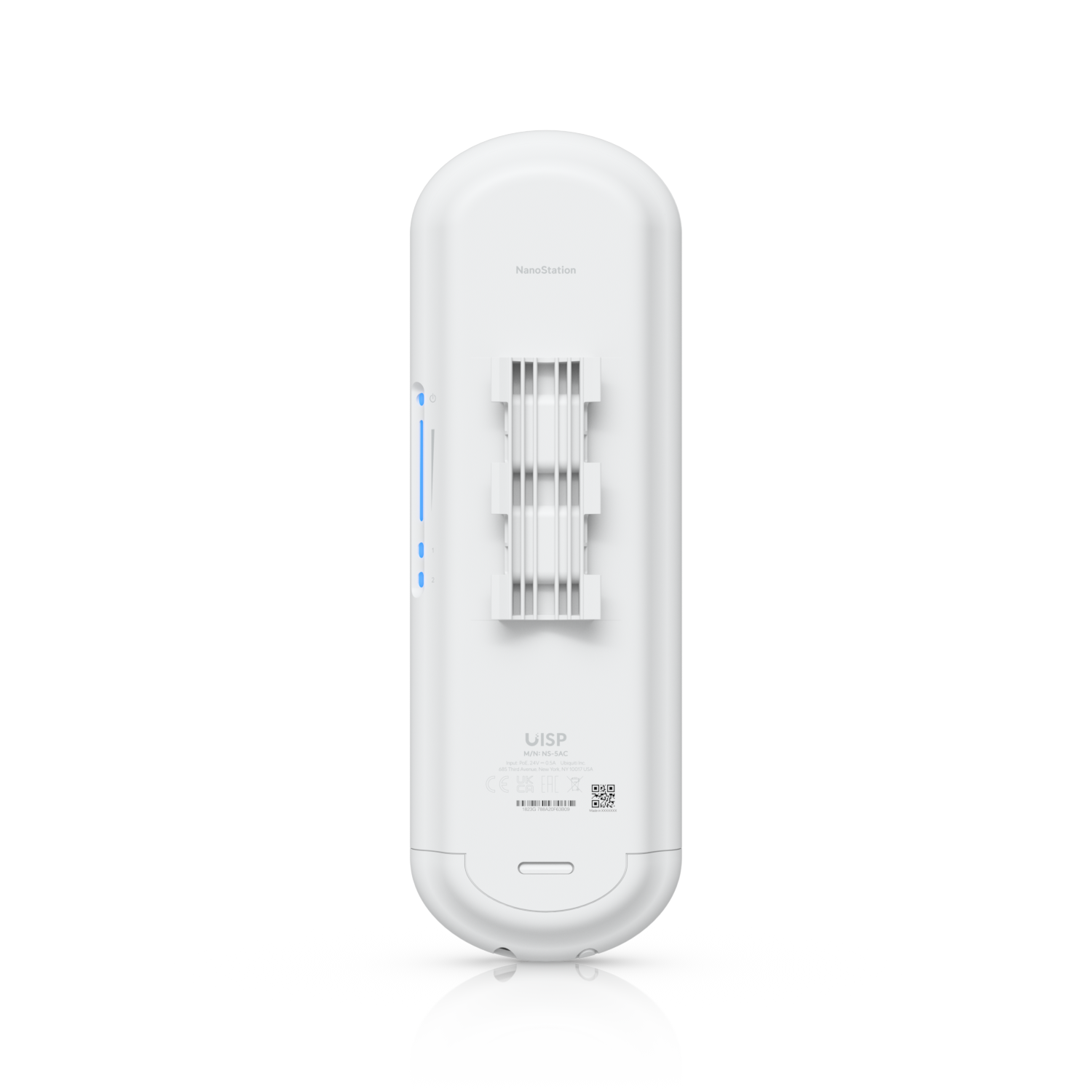

The unit uses a <cite index=”10-1″>UV-resistant polycarbonate enclosure</cite> that allows it to be installed in a wide range of outdoor environments, and it includes <cite index=”10-1″>a pole-mount kit</cite> for straightforward installation. The design also features <cite index=”11-1″>enhanced protection against ESD events</cite>, an important reliability consideration for equipment mounted in exposed, high-lightning-risk locations.

Software Platform

The Ubiquiti NanoStation 5AC runs on <cite index=”11-1″>airOS 8</cite>, which provides <cite index=”11-1″>airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability</cite> compared to earlier airOS versions.

Notable Features for Network Operators

• Long-distance, carrier-class links – The radio is described as <cite index=”16-1″>capable of high-speed, carrier-class links</cite>, making it suitable for backhaul-style deployments as well as subscriber-facing PtMP links.
• Enhanced TDMA scalability – Ubiquiti’s <cite index=”16-1″>airMAX engine with custom IC dramatically improves TDMA latency and network scalability</cite>, which matters most in dense PtMP deployments serving many simultaneous clients.
• Real-time RF analytics – Built into airOS 8, this gives operators visibility into interference and link quality without needing separate spectrum analysis tools.

Product Family Variants

The NanoStation AC line includes more than one model, so it’s worth noting the differences when comparing options:

• NanoStation 5AC (NS-5AC) – The standard model, with 16 dBi gain and a secondary PoE-out Ethernet port for powering auxiliary devices.
• NanoStation 5AC Loco (NS-5ACL) – A more compact variant with 13 dBi gain, a smaller footprint, and lower power consumption, aimed at shorter-range or space-constrained deployments.

Common Use Cases

• Point-to-Point (PtP) bridging – Connecting two buildings or sites directly using a pair of NanoStation 5AC units in Station/AP mode
• Point-to-Multipoint (PtMP) access – Serving multiple subscriber stations from a single access point in WISP last-mile deployments
• Auxiliary device power delivery – Using the secondary PoE port to power an on-site device like a security camera alongside the wireless link
• Rapid, mobile-managed deployments – Leveraging the built-in Wi-Fi management radio for quick setup in the field without a wired laptop connection

Final Thoughts

The Ubiquiti NanoStation 5AC continues the legacy of the original NanoStation design while bringing it up to date with airMAX ac technology, Gigabit Ethernet, and Wi-Fi-based mobile management. Its combination of solid throughput, flexible channel bandwidths, and rugged outdoor construction makes it a practical choice for WISPs and integrators building both point-to-point bridges and point-to-multipoint subscriber networks, particularly where an all-in-one CPE radio is preferable to a separate radio-and-antenna setup like airFiber X.
