Description

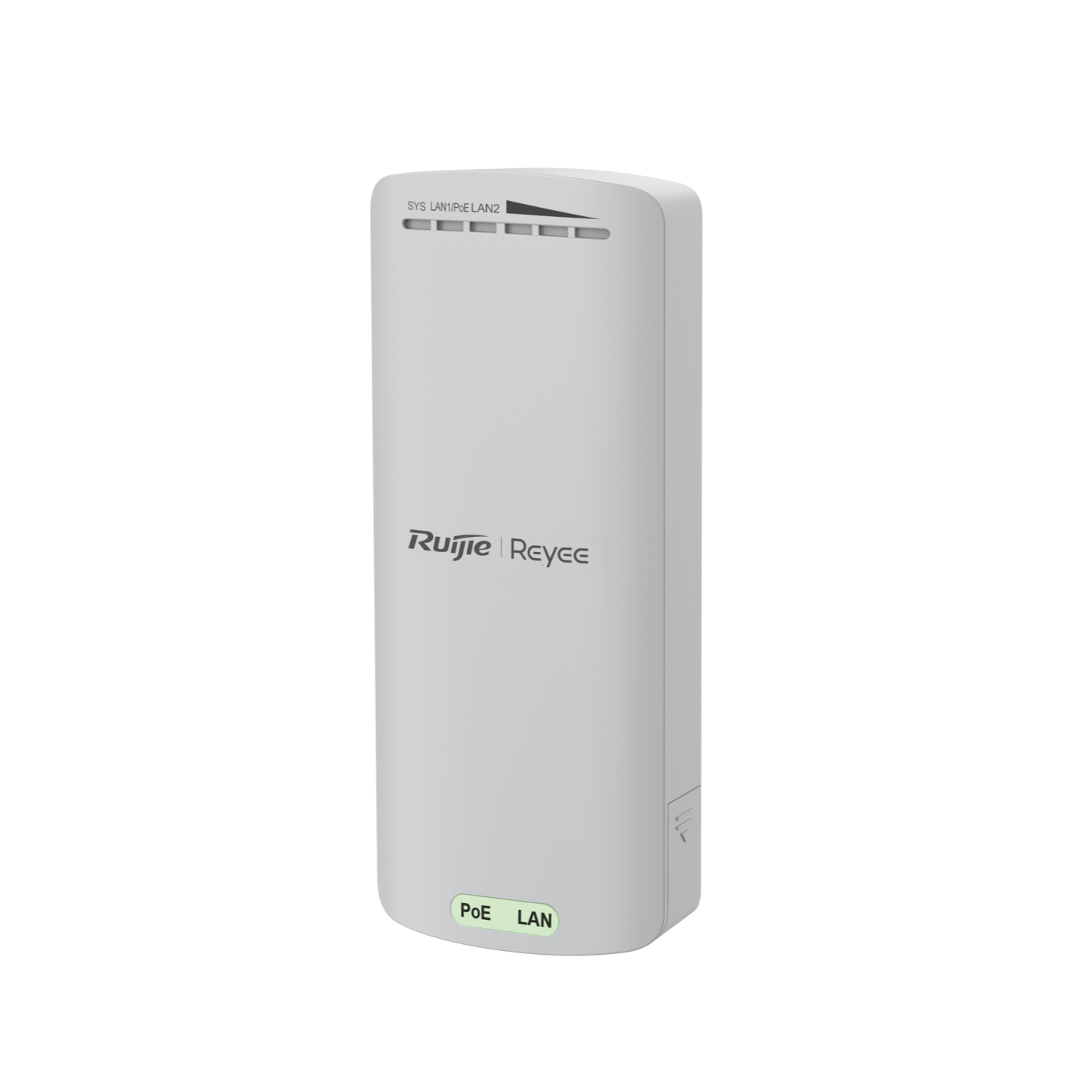

The Ruijie Reyee RG-EST100-E is a dual-stream wireless bridge purpose-built for short-distance video surveillance backhaul in scenarios such as elevators, tower cranes, apartment complexes, and construction sites. Its compact, rugged design makes it a practical solution wherever running physical cabling is difficult or impossible.

Compliant with the IEEE 802.11n standard, the Ruijie Reyee RG-EST100-E operates in the 2.4 GHz radio band, delivering a maximum data rate of up to 300 Mbps. With single-radio, dual-stream 2×2 MIMO technology, it provides dependable throughput for point-to-point video and data transmission applications.

Range is well matched to its intended short-distance use cases. Featuring a built-in directional antenna with 8 dBi gain and a wide H: 70°, V: 70° lobe angle, the RG-EST100-E can easily transmit data from 500 meters away in real time, comfortably covering elevators, apartment buildings, and nearby construction zones.

Camera capacity is a defining strength for CCTV deployments. The bridge supports a maximum of 14 x 3MP cameras at 100m or 5 x 3MP cameras at 500m, making it a practical choice for extending surveillance coverage to locations where cabling isn’t feasible.

Setup simplicity sets this bridge apart from conventional alternatives. It ships as a factory-free, pre-configured pair, requiring no complex alignment on-site, which significantly reduces installation time and technical overhead for CCTV integrators and installers.

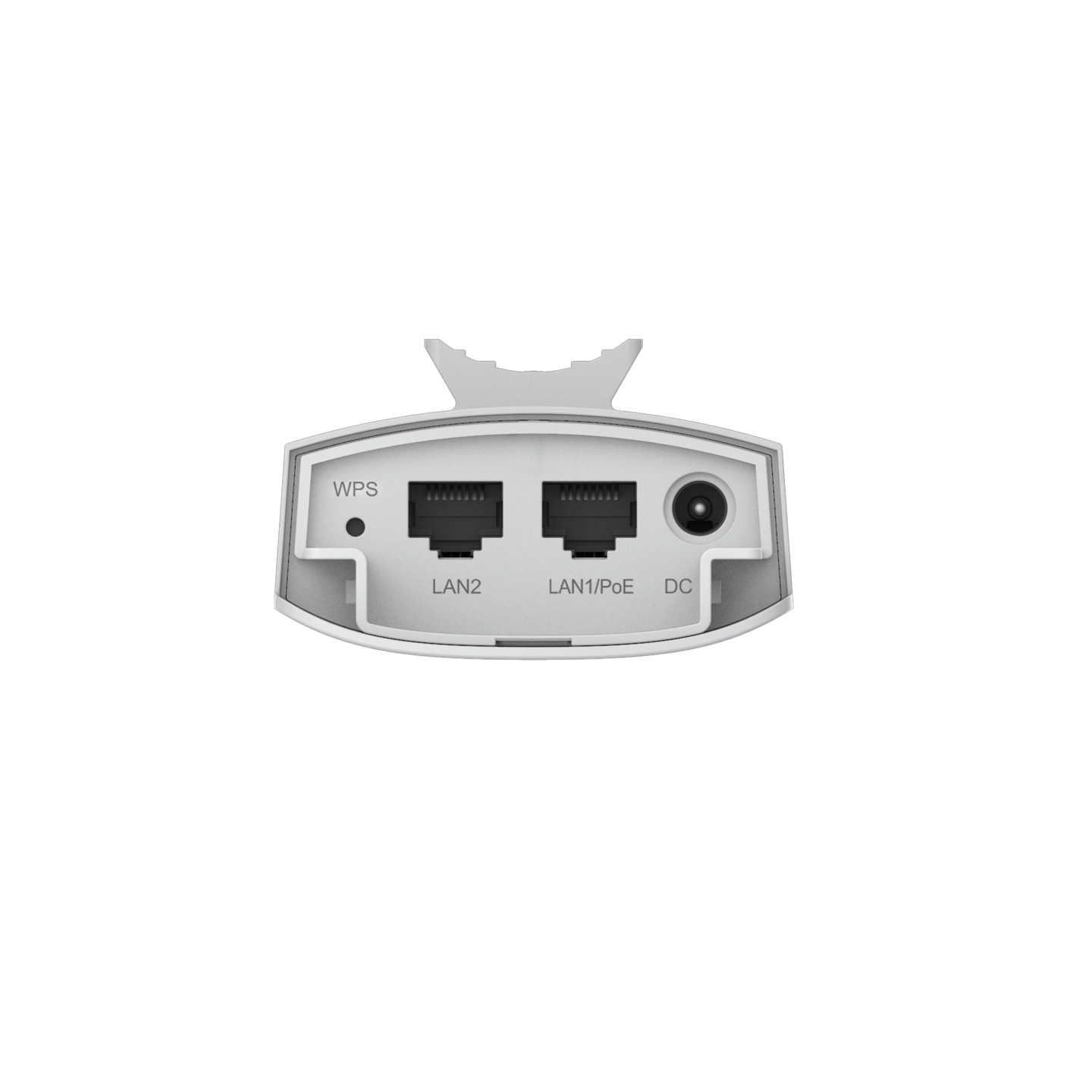

Connectivity comes through 2 x 10/100Base-T Ethernet ports, with Port 1 supporting Passive PoE, allowing power and data to be delivered through a single cable at each end of the link for straightforward, low-cost installation.

Built for the outdoors, the RG-EST100-E carries an IP55 weatherproof rating and operates reliably from -30°C to 60°C, ensuring stable performance in exposed elevator shafts, tower cranes, or outdoor construction environments.

Management is centralized and remote-friendly through Ruijie Cloud, offering visually intuitive statistics monitoring, so administrators can maintain and troubleshoot the bridge link without needing to physically visit the site.

Durability is further reinforced through a rust-proof design and gold-plated ports, contributing to higher reliability and a lower failure rate for continuous, long-term outdoor operation.

Altogether, the Ruijie Reyee RG-EST100-E combines dependable short-range Wi-Fi 4 bridging, zero-configuration deployment, and rugged IP55 durability, making it a smart, cost-effective choice for CCTV backhaul and remote data transmission over shorter outdoor distances.

RG-EST100-E Hardware Specifications

RG-EST100-E Wi-Fi Radio

SpecificationDetails
Radio design	Single-radio2 spatial streams● Radio 1: 2.4 GHz, 2 spatial streams: 2 x 2, MIMO
2.4 GHz channel width	Auto/20/40 MHz

RG-EST100-E Antenna

SpecificationDetails
Antenna horizontal orientation	70°
Antenna vertical orientation	70°

RG-EST100-E Dimensions and Weight

SpecificationDetails
Product dimensions (W x D x H)	68.7 mm x 42 mm x 165.5 mm (2.70 in. x 1.65 in. x 6.52 in.)

RG-EST100-E Power Supply and Consumption

SpecificationDetails
Number of PoE In ports	1

RG-EST100-E Environment and Reliability

SpecificationDetails
Operating temperature	–30°C to +60°C (–22ºF to +140ºF)
Operating humidity	5% RH to 95% RH (non-condensing)
MTBF	400,000 hours (about 45 years)
IP rating	IP55
