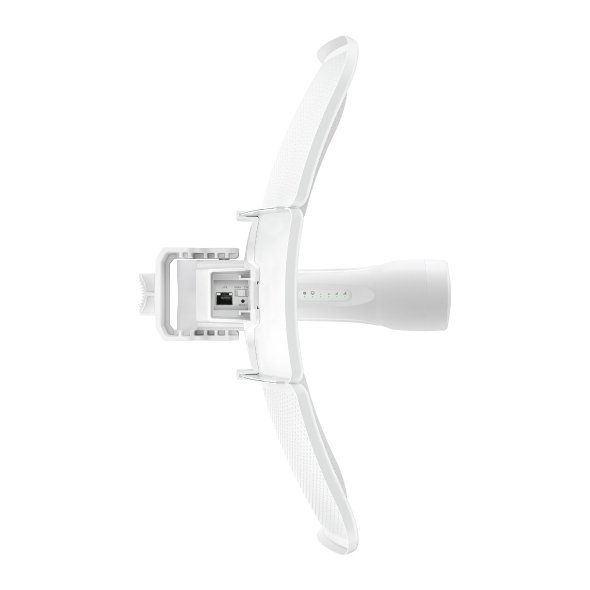

The TP-Link Beam Bridge 5 UR KIT is a 5GHz 867Mbps Omada ultra-range wireless bridge designed for business-grade, long-distance connectivity across indoor and outdoor environments. Equipped with 23dBi high-gain directional antennas, the Beam Bridge 5 UR KIT delivers reliable, low-latency Wi-Fi with strong signal integrity over distances of up to 9.3 miles (15 km), making it a powerful point-to-point (PtP) wireless bridge solution for connecting remote sites, extending networks across large properties, or supporting outdoor surveillance systems without the need to lay physical fiber or cabling.

Built for effortless deployment, the TP-Link Beam Bridge 5 UR KIT comes preconfigured for instant auto-pairing, allowing the two included bridge modules to connect straight out of the box with no manual setup required. Agile LED signal indicators simplify alignment during installation, while an app-guided alignment feature offers a visualized setup process for long-distance links, complete with instant speed testing to verify performance once the connection is established. This plug-and-play design significantly reduces installation time and complexity, even for challenging long-range deployments.

Powered by 802.11ac wireless technology with 256-QAM modulation and support for 20/40/80 MHz channel bandwidths, the Beam Bridge 5 UR KIT achieves stable 5GHz transmission with speeds of up to 867 Mbps, unlocking dependable connectivity for demanding outdoor applications. A single Gigabit Ethernet PoE port supports both 802.3af PoE and 24V/48V passive PoE, simplifying wiring and reducing overall deployment costs — with a passive PoE adapter included in the kit for immediate use.

Designed for outdoor durability, the TP-Link Beam Bridge 5 UR KIT features a rugged IP65 weatherproof enclosure along with 6kV lightning protection, safeguarding the network from harsh weather and electrical surges. An extended operating temperature range of -40°C to 70°C (-40°F to 158°F) ensures the bridge performs reliably in extremely hot or cold climates, making it well-suited for demanding, remote, or exposed outdoor installations where consistent performance is critical.

Management flexibility is another key strength of the TP-Link Beam Bridge 5 UR KIT , which can be configured through the Omada app for quick, internet-free on-site setup, or switched into Omada SDN (Software Defined Networking) mode for centralized cloud management via the Omada app or web portal. This allows administrators to remotely monitor, batch-provision, and troubleshoot multiple bridge pairs from a single unified platform alongside other Omada network devices such as access points, switches, and gateways. Whether deployed to extend a network to a distant building, support long-range surveillance, or bridge two remote outdoor locations, the TP-Link Beam Bridge 5 UR KIT delivers dependable, ultra-range wireless performance built for serious outdoor networking needs.
