Description
Warehouses, distribution centers, and demanding outdoor sites need wireless coverage that survives extreme conditions without sacrificing speed — which is exactly what the TP-Link EAP650 D120-Outdoor is built for.
Unlike a standard omni directional access point, this model is engineered specifically for directional, sector-based coverage. It uses four built-in dual-band directional antennas with high gain, focusing signal precisely toward shelving aisles, loading docks, or long outdoor corridors instead of spreading it evenly in every direction. This makes it especially effective in warehouse racking environments where signal needs to travel far down narrow lanes.
Performance-wise, the TP-Link EAP650 D120-Outdoor runs on Wi-Fi 6 (802.11ax), delivering up to 2402 Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz, for a combined throughput near 3 Gbps. That headroom keeps handheld scanners, AGVs, tablets, and IoT sensors connected simultaneously without congestion.
Durability is where this TP-Link EAP650 D120-Outdoor truly separates itself. It carries a fully sealed IP68 rating, meaning it’s dustproof and can withstand submersion — a step beyond the IP67 rating found on standard outdoor APs. Combined with an operating range of -30°C to +70°C, it’s built to handle unheated warehouses, freezer-adjacent zones, and harsh outdoor climates alike.
Mobility support is another core strength. With 802.11k/v/r seamless roaming, devices like AGVs and handheld barcode scanners move between access points without dropped connections — critical for logistics operations where uninterrupted data flow directly affects productivity.
Power and deployment stay simple thanks to 802.3at PoE or 48V passive PoE support, letting installers run data and power over a single cable even in remote outdoor or warehouse locations. Optional mounting brackets allow ±45° vertical and horizontal adjustment, so the directional signal can be aimed precisely at the target coverage area.
Like other Omada-series access points, the TP-Link EAP650 D120-Outdoor integrates into TP-Link’s Omada SDN platform, enabling centralized management of access points, switches, and gateways from a single controller interface, whether on-site or via the cloud.
For businesses running large-scale outdoor or warehouse networks — logistics hubs, ports, manufacturing yards, or industrial parks — the TP-Link EAP650 D120-Outdoor offers a purpose-built combination of directional range, rugged reliability, and centralized control that standard access points can’t match.
TP-Link EAP650 D120-Outdoor HARDWARE FEATURES |
|
|---|---|

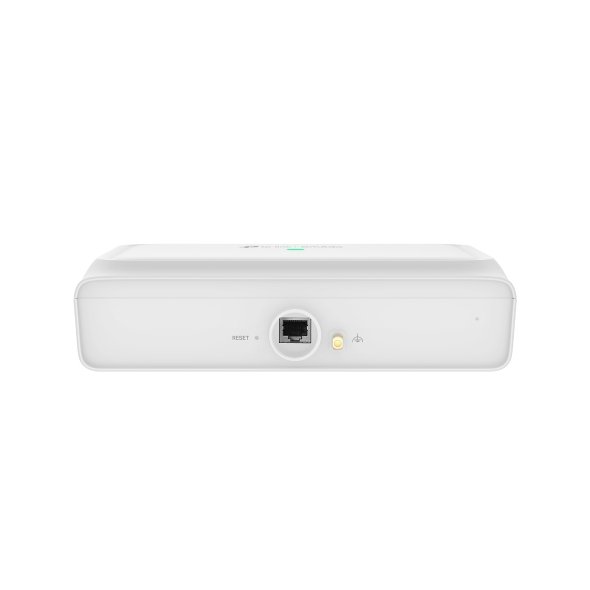

| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE • 48V Passive PoE |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) • US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Antenna | Built-in Directional Antennas: • 2.4 GHz: 2× 8 dBi • 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment Note: Optional bracket accessories need to be purchased separately |
TP-Link EAP650 D120-Outdoor WIRELESS FEATURES |
|
|---|---|
| Coverage | • 2.4 GHz: 200+ m* • 5 GHz: 500+ m* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| Wireless Functions | • 1024-QAM • DL/UL OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 on each band) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO • Omada Mesh§ • Seamless Roaming(802.11k/v/r)§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • RADIUS Accounting • MAC Authentication • Reboot Schedule • Wireless Schedule • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz) |
TP-Link EAP650 D120-Outdoor Management Features |
|
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-based Controller • Omada APP |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • Access Point EAP650 D120-Outdoor • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
