Description

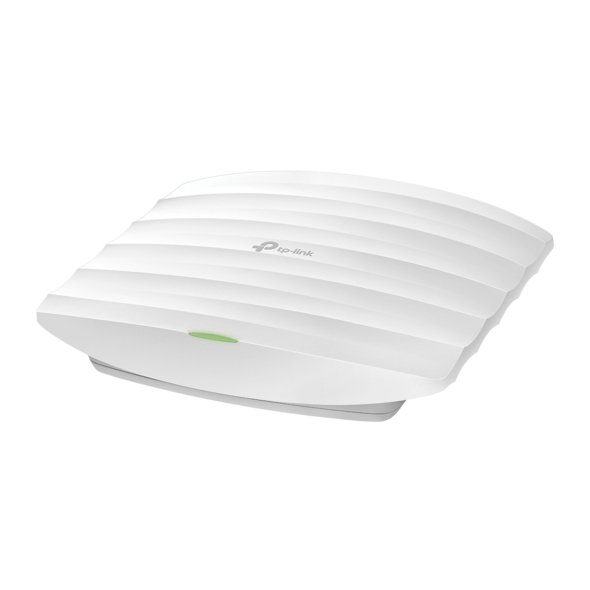

The TP-Link EAP225 is an AC1350 dual-band access point designed to extend fast, reliable Wi-Fi throughout offices, retail stores, schools, and other business environments. Its low-profile design mounts neatly on a ceiling or wall, blending into any workspace.
Delivering combined speeds of up to 1350 Mbps, with 450 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band, the TP-Link EAP225 keeps multiple devices connected without slowdowns. Its 3 internal omnidirectional antennas ensure consistent coverage across the room, so users stay connected wherever they move.
Built on 802.11ac Wave 2 technology with MU-MIMO support, this access point can serve several devices simultaneously without the usual drop in performance. This makes it especially useful in busy environments where laptops, phones, and tablets are all competing for bandwidth at the same time.
Management is simple thanks to integration with TP-Link’s Omada Software Defined Networking platform. Administrators can configure, monitor, and troubleshoot the TP-Link EAP225 device remotely through the Omada Controller software, cloud access, or the Omada mobile app, making it easy to manage a handful of access points or an entire network from one dashboard.
Installation is flexible, as the TP-Link EAP225 device supports both 802.3af PoE and Passive PoE, allowing it to be powered through a compatible switch or the included adapter. This eliminates the need for extra electrical wiring near the mounting location.
Security features are built in at every level. The TP-Link EAP225 supports secure guest networking with SMS, voucher, and Facebook Wi-Fi authentication options, along with enterprise-grade encryption to keep business data protected. Multi-SSID support allows administrators to separate staff, guest, and IoT traffic for better network organization.
To keep performance smooth during high traffic, the TP-Link EAP225 device includes Band Steering, Airtime Fairness, and Beamforming technologies. These features intelligently manage bandwidth, push compatible devices to the faster 5 GHz band, and strengthen signal directionality toward connected clients.
Seamless roaming ensures that as users move between multiple access points, ongoing calls, video streams, and downloads continue without interruption, an essential feature for larger facilities.
Backed by a consistent firmware support, this access point is a dependable long-term choice for businesses building or upgrading a managed wireless network without unnecessary complexity.
TP-Link EAP225 HARDWARE FEATURES |
|
|---|---|
| Interface | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af/at PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | • 802.3af/at PoE • 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Max. Power Consumption | EU: 9.7W US: 12.1W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna | 3 Internal Omni • 2.4 GHz: 4 dBi • 5 GHz: 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
TP-Link EAP225 WIRELESS FEATURES |
|
|---|---|
| Coverage | 115㎡(1250 ft²)§ |
| Concurrent Clients | 220+** |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz:Up to 867 Mbps • 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | • Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band,7 for 5GHz band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming(802.11k/v/r)* • Omada Mesh* • Band Steering • Load Balance • MU-MIMO • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication* • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support |
| Transmission Power | • CE: ≤20 dBm(2.4 GHz, EIRP) ≤23 dBm(5 GHz, EIRP) • FCC: ≤24 dBm(2.4 GHz) ≤22 dBm(5 GHz) |
TP-Link EAP225 Management Features |
|
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 • Passive PoE Adapter • Power Cord • Mounting Kits • Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
