Description

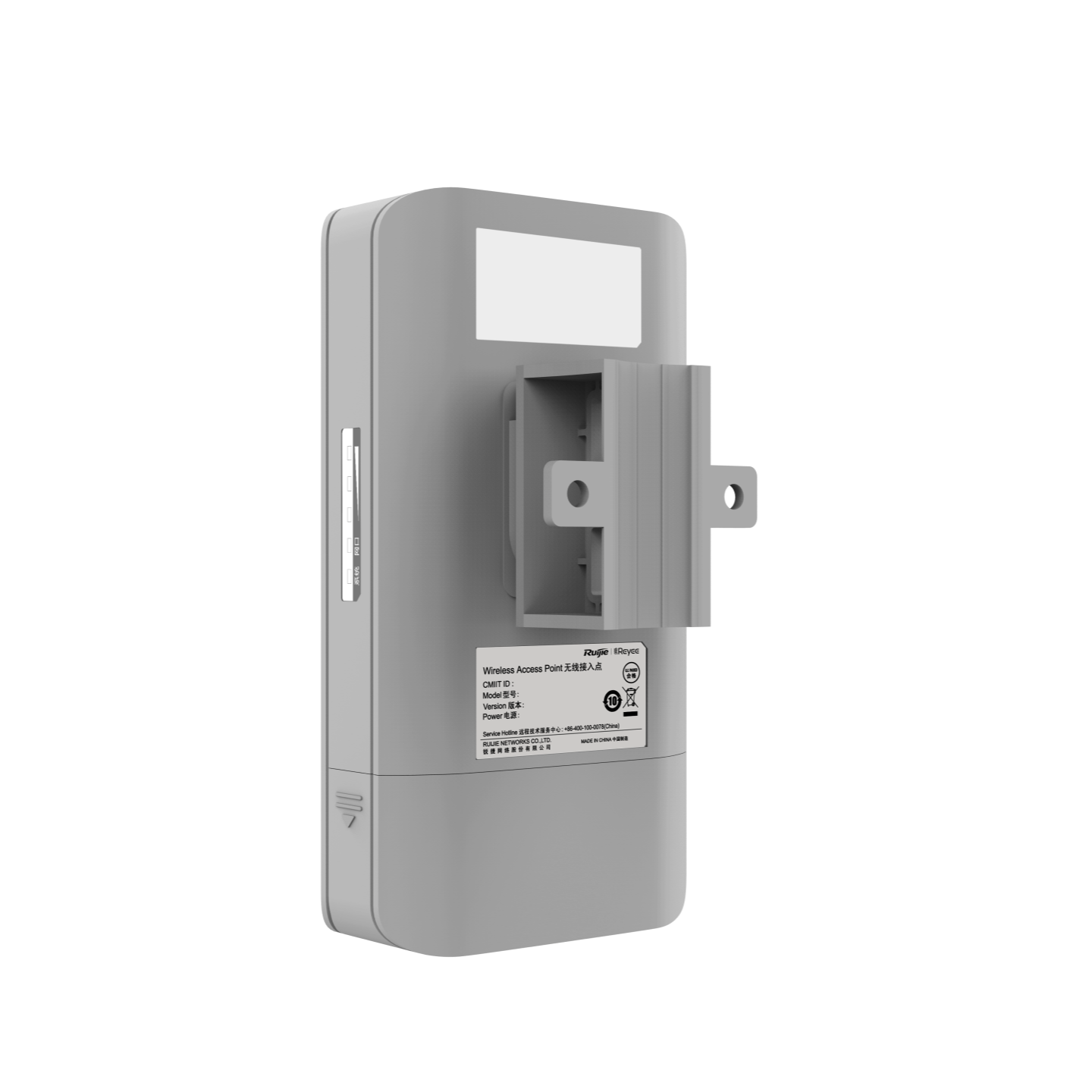

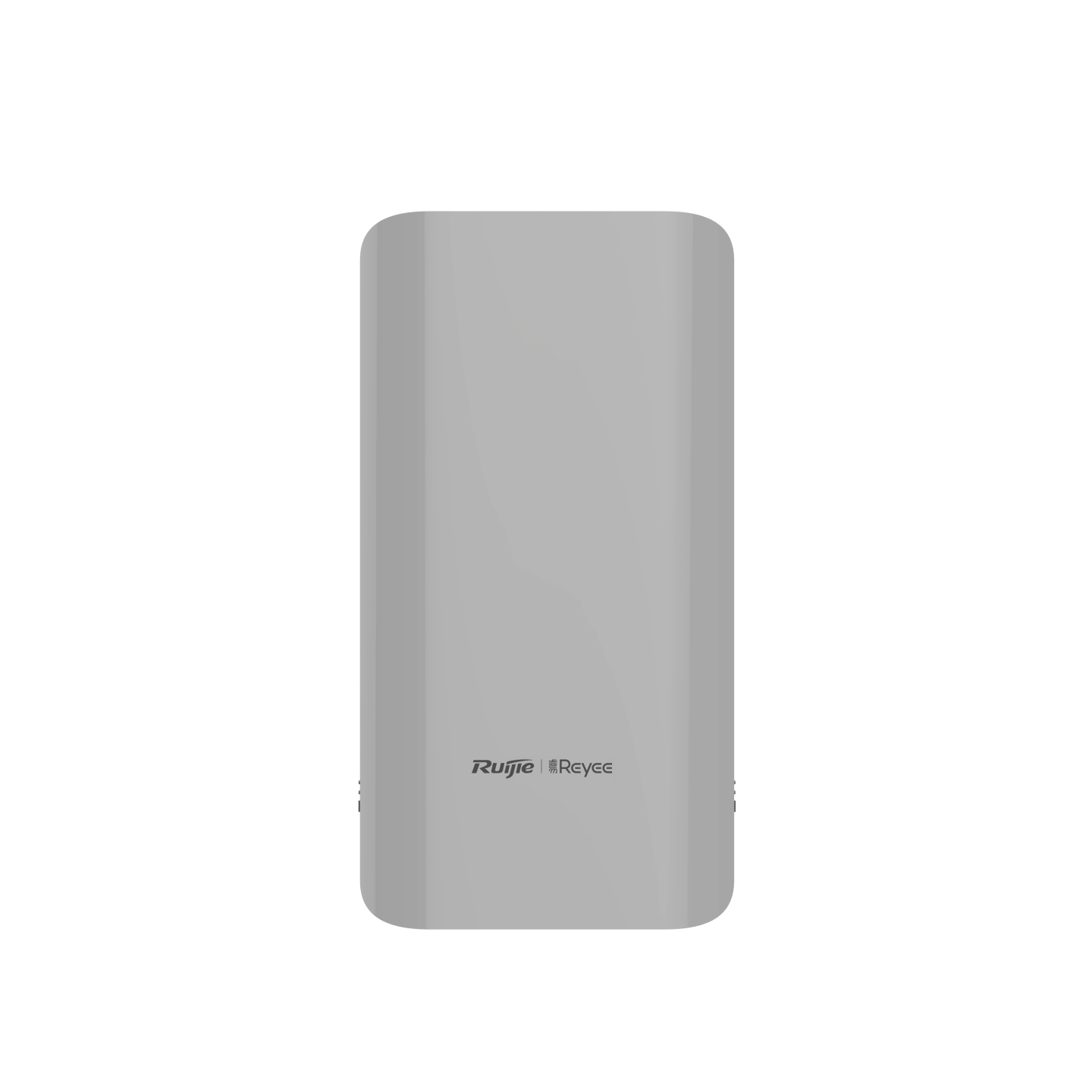

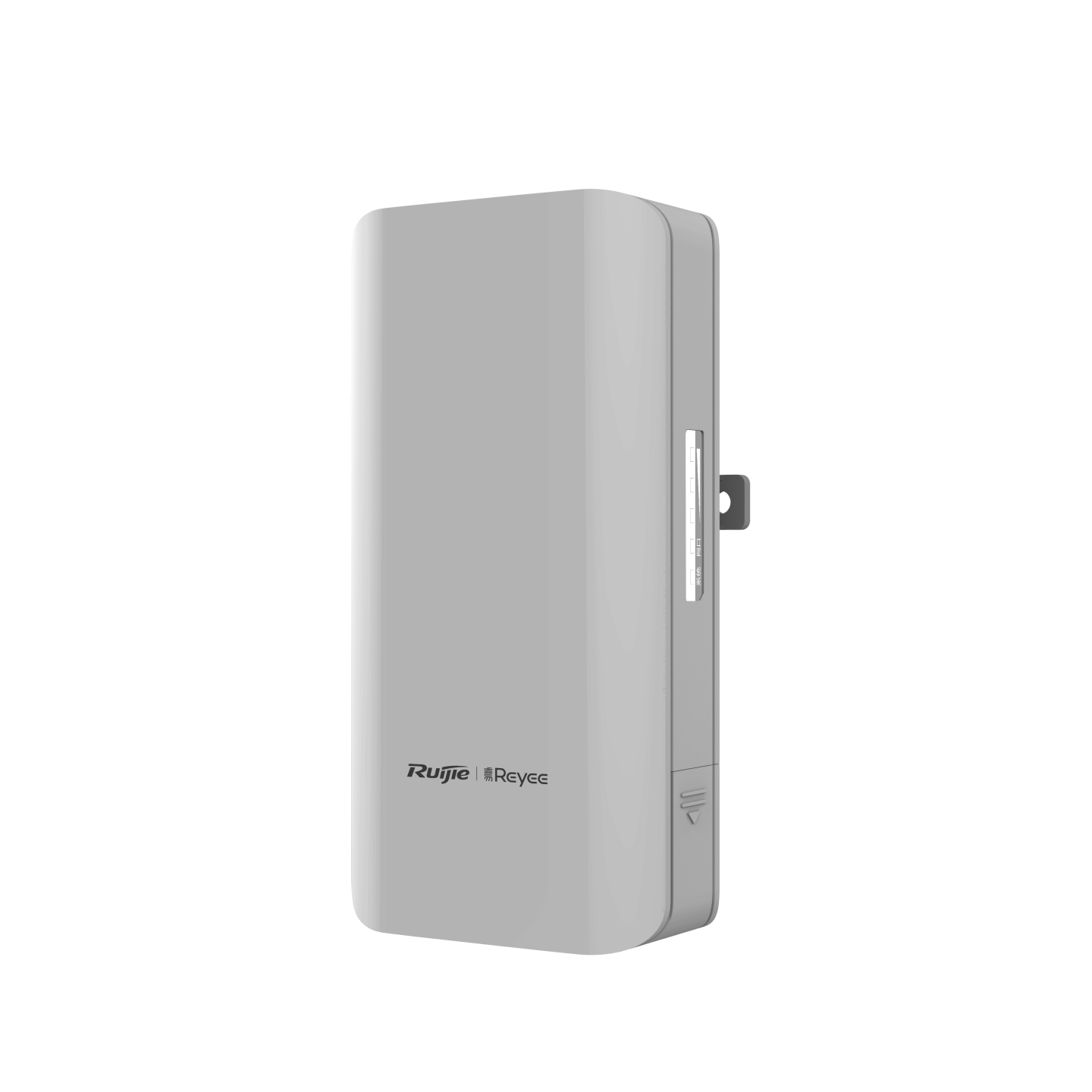

The Ruijie Reyee RG-EST310 V2 is an 802.11ac wireless bridge built for video surveillance backhaul and remote wireless transmission in scenarios such as elevators, tower cranes, factories, campuses, and construction sites. It’s a practical solution for locations where running physical network cabling isn’t feasible.

Operating on the 5 GHz frequency band, the Ruijie Reyee RG-EST310 V2 supports two spatial streams with 2×2 MIMO technology, delivering up to 867 Mbps wireless throughput—fully meeting the data link bandwidth requirements of most video surveillance and remote transmission applications.

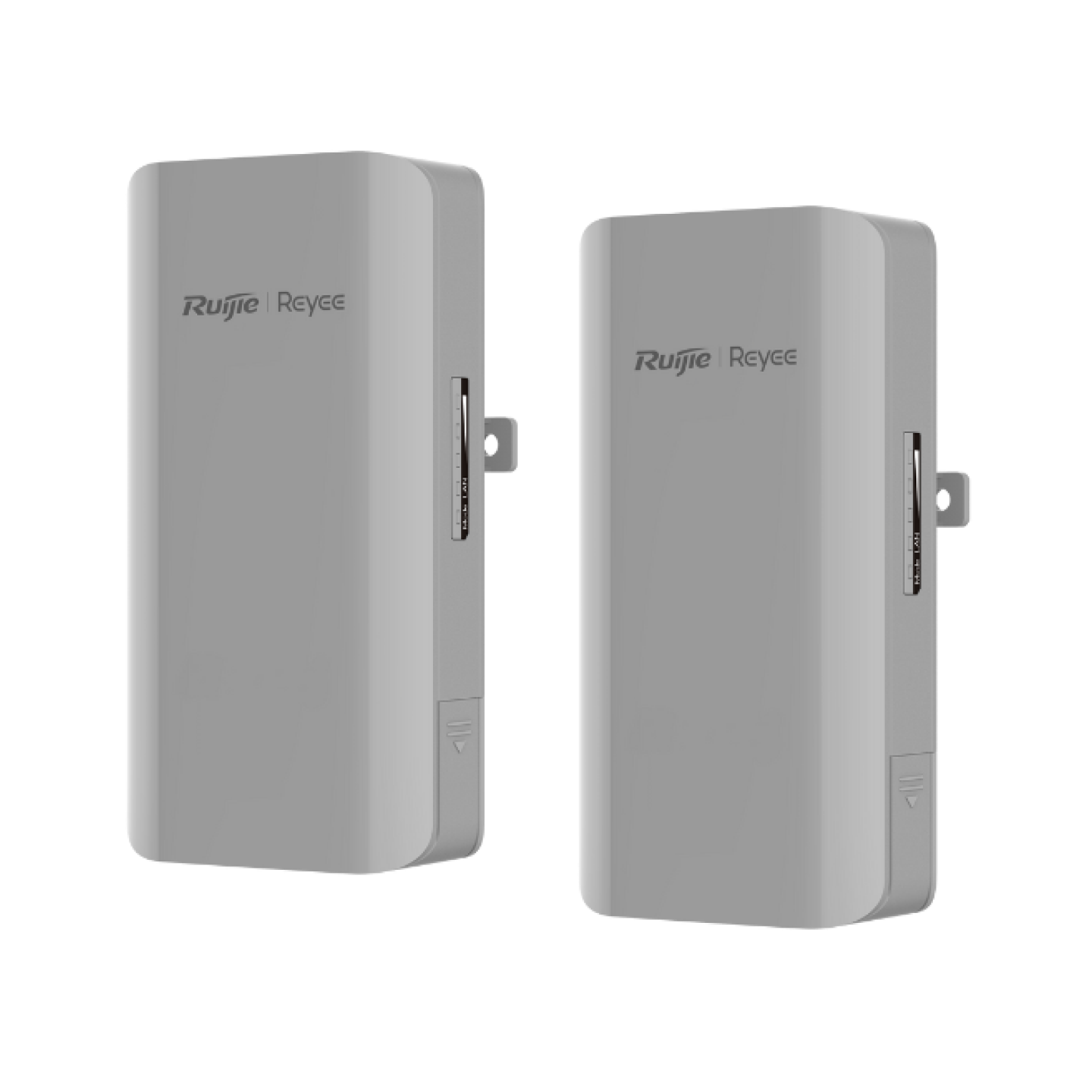

Simplicity is a defining feature of this bridge kit. It comes as a pair of pre-configured devices—a recorder-end and a camera-end—paired by default and ready to deploy without requiring any manual configuration, significantly reducing installation time on-site.

For video surveillance backhaul specifically, it’s recommended to connect a switch or hard disk recorder to the recorder-end device and a network camera to the camera-end device, creating a straightforward, plug-and-play wireless link between the two points.

Range is tailored to shorter-distance applications, with a 10 dBi built-in directional antenna and H: 60°, V: 30° polarization delivering a recommended bridging distance of up to 1 km—well suited for connecting nearby buildings or structures within the same site.

Connectivity comes through a 10/100Base-T Ethernet port, with Port 1 supporting passive PoE, allowing power and data to run through a single cable for simplified installation at each end of the link.

Management has been modernized through the Ruijie Reyee app, which allows administrators to view network topology and modify configurations remotely—a significant improvement over conventional contact-type bridge configuration methods.

Roaming support is also included, with Layer 2 and Layer 3 roaming capability ensuring stable connectivity as network conditions change, backed by unified networking and Ruijie Cloud app management for ongoing maintenance.

Built for the outdoors, the RG-EST310 V2 carries an IP54 rating along with 4kV lightning protection, and is powered via 12V DC or 24V non-standard PoE, with the necessary power adapters included for straightforward wall or pole-mounted installation.

Altogether, the Ruijie Reyee RG-EST310 V2 combines dependable Wi-Fi 5 bridging performance, zero-configuration pairing, and flexible app-based management, making it a smart, cost-effective choice for organizations needing quick, reliable wireless links over shorter outdoor distances.

RG-EST310 V2 Hardware Specifications

RG-EST310 V2 Wi-Fi Radio

SpecificationDetails
Radio design	Single-radio2 spatial streams● Radio 1: 5 GHz, 2 spatial streams: 2 x 2, MIMO
5 GHz channel width	Auto/20/40/80 MHz

RG-EST310 V2 Antenna

SpecificationDetails
Antenna horizontal orientation	60°
Antenna vertical orientation	30°

RG-EST310 V2 Dimensions and Weight

SpecificationDetails
Product dimensions (W x D x H)	76 mm x 37 mm x 147 mm (2.99 in. x 1.46 in. x 5.79 in.) (excluding mounting bracket)

RG-EST310 V2 Power Supply and Consumption

SpecificationDetails
Number of PoE In ports	1

RG-EST310 V2 Environment and Reliability

SpecificationDetails
Operating temperature	–30°C to +55°C (–22ºF to +131ºF)
Operating humidity	5% RH to 95% RH (non-condensing)
MTBF	400,000 hours (about 45 years)
IP rating	IP54
