Description

The Ruijie Reyee RG-RAP72 is a Wi-Fi 7 ceiling access point built for premium wireless coverage in smaller, style-conscious spaces like villas, boutique hotels, and retail stores. Its circular, low-profile design blends into modern interiors while delivering next-generation wireless performance underneath.

Powered by BE3600 dual-radio technology, the Ruijie Reyee RG-RAP72 achieves an aggregate throughput of up to 3.6 Gbps, combining 2.4 GHz and 5 GHz bands without needing a dedicated 6 GHz radio. This makes it an efficient, cost-effective entry point into full Wi-Fi 7 performance.

High-efficiency data transfer is handled through OFDMA, 4K-QAM, and Multi-Link Operation (MLO), Wi-Fi 7’s signature technology that allows simultaneous multi-band connections. Together, these features reduce latency and keep connections stable even during demanding tasks like streaming or video calls.

AI Wireless Optimization (WIO 3.0) sets this access point apart from earlier generations. It automatically fine-tunes channels, transmit power, and frame management in real time, removing the need for manual adjustments while keeping performance consistently high across changing network conditions.

For larger deployments, the Ruijie Reyee RG-RAP72 supports Reyee Mesh, allowing auto-discovery and configuration of up to 300 access points in a self-organizing network. This drastically simplifies rollout for properties with multiple rooms or floors that need blanket coverage.

Connectivity comes through a 2.5GbE port, ensuring wired backhaul keeps pace with the wireless speeds this access point delivers. Management flexibility is equally strong, with support for the Ruijie Cloud platform, the Reyee mobile app, and a local web interface—whatever fits the administrator’s workflow.

Power efficiency is another highlight. With support for 802.3af/at PoE and 12V DC input, installation stays flexible across different site conditions. Maximum power consumption sits at just 14W, keeping the access point cost-effective for continuous, always-on operation.

Design has clearly been a priority as well. At just 41mm thick, the unit is notably slimmer than previous-generation access points, with a seamless curved profile that avoids sharp edges and blends naturally into ceilings.

Security hasn’t been overlooked either, with enterprise-grade protection built in to safeguard connected devices and network traffic, even in smaller-scale deployments.

Altogether, the Ruijie Reyee RG-RAP72 combines elegant design, intelligent automation, and genuine Wi-Fi 7 speed, making it a smart choice for businesses that want premium wireless coverage without unnecessary complexity or cost.

RG-RAP72-Wall Product Information

Product Type	Wall AP

RG-RAP72-Wall Hardware Specifications

RG-RAP72-Wall Wi-Fi Radio

Radio design	Dual-radio4 spatial streams● 2.4 GHz: 2 x 2, MU-MIMO● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate	3570 Mbps
6 GHz wireless data rate	No
5 GHz wireless data rate	2882 Mbps
2.4 GHz wireless data rate	688 Mbps

RG-RAP72-Wall Antenna

Antenna	5 GHz: 1 built-in omnidirectional antennaIntegrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas

RG-RAP72-Wall Dimensions and Weight

Product dimensions (W x D x H)	86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket)
Color	White
Weight	≤ 0.27 kg (0.60 lbs.) (without packaging materials)

RG-RAP72-Wall Port Specifications

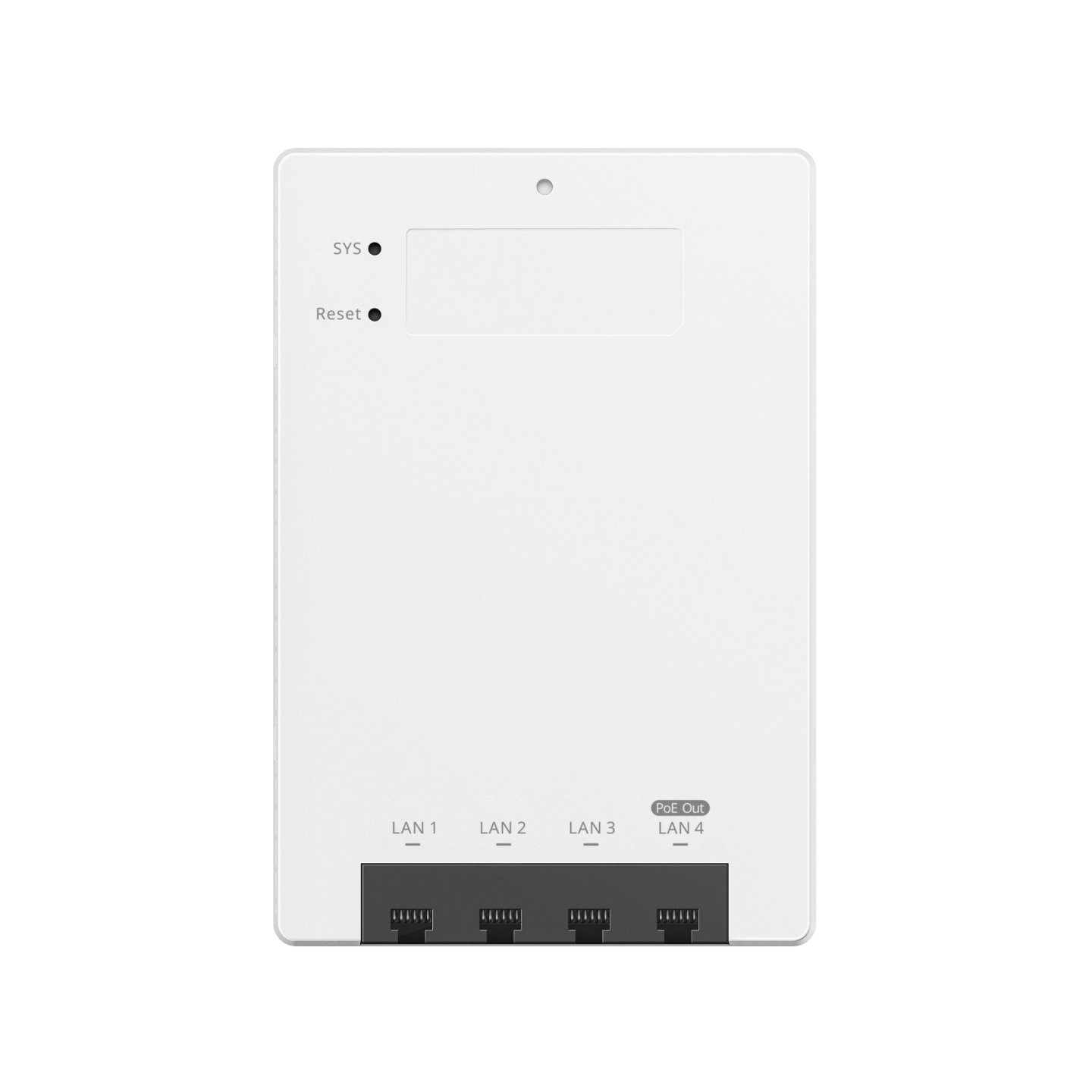

Number of 10/100/1000BASE-T ports	4
Number of 10/100/1000/2500BASE-T ports	1

RG-RAP72-Wall Power Supply and Consumption

Power supply	PoE/PoE+
Local power supply	No
Dimensions of the DC connector	No
PoE budget	10 W (when power source is IEEE 802.3at-compliant)
Maximum power consumption	15 W (excluding PoE output)
