Description
For venues that need to serve massive numbers of connected devices outdoors, the TP-Link EAP668-Outdoor HD is built specifically for high-density Wi-Fi 6 performance. Designed for factories, stadiums, schools, hotels, and other busy public spaces, it supports up to 1,024 concurrent devices on a single access point.

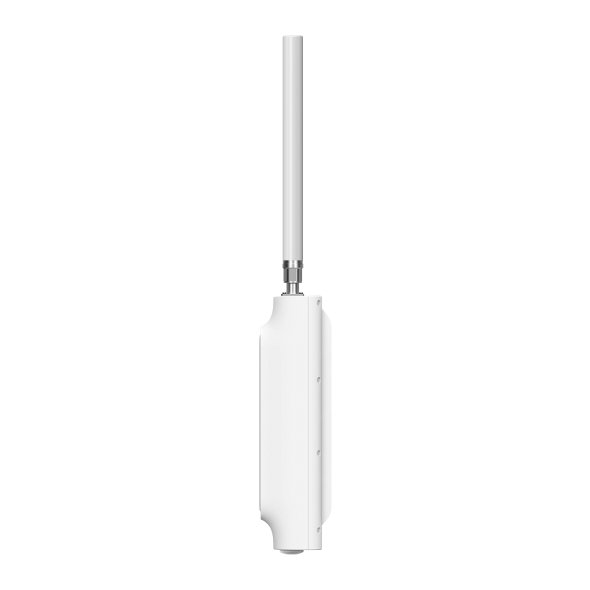

Wireless performance comes from a dual-band AX3600 design, delivering 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz, for combined speeds up to 3.6 Gbps. Four detachable, high-gain N-Type omni antennas rated at 6 dBi on both bands help maintain strong signal quality even when hundreds of clients are connected simultaneously.

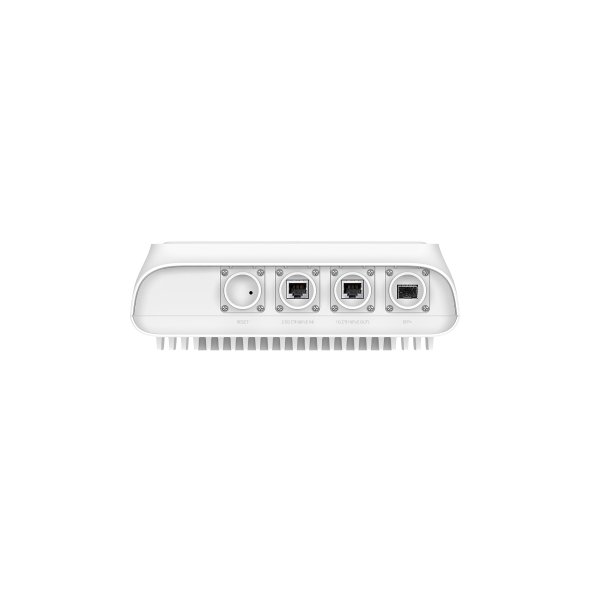

Connectivity options set the TP-Link EAP668-Outdoor apart from typical outdoor access points. Instead of a single Ethernet port, it includes a 2.5G PoE-in port, a Gigabit PoE-out port, and a 10G SFP+ slot for fiber backhaul. The PoE-out port is particularly useful, allowing the TP-Link EAP668-Outdoor HD to pass power and data to nearby devices like outdoor security cameras through a single connected cable.
Durability is engineered for extreme deployments. The unit carries an IP68-rated weatherproof enclosure, ±4kV to 6kV lightning surge protection, and an operating temperature range from -40°C to +70°C — figures well beyond standard outdoor access points, making it suitable for harsh climates, coastal installations, and industrial sites.
Bluetooth support is also built in, enabling location-based services and IoT integrations alongside standard Wi-Fi connectivity. Combined with an LTE filter to reduce interference from nearby cellular infrastructure, the access point is designed to stay stable even in electromagnetically noisy outdoor environments.
Like the rest of TP-Link’s Omada lineup, the TP-Link EAP668-Outdoor integrates fully into the Omada SDN ecosystem. This enables centralized cloud management, Omada Mesh for extended coverage across multiple units, and seamless roaming so connected devices switch access points without interruption as users move through large venues.
Physically, the unit measures 240 x 80 x 312 mm and ships with a mounting kit compatible with wall and pole installations, along with a waterproofing kit for secure outdoor cable connections.
Altogether, the TP-Link EAP668-Outdoor HD is purpose-built for organizations that need enterprise-grade capacity outdoors — combining high device density, fast Wi-Fi 6 speeds, industrial-strength weatherproofing, and flexible fiber or copper backhaul in one rugged access point.
TP-Link EAP668-Outdoor HARDWARE FEATURES |
|
|---|---|
| Interface | 1× 2.5G Ethernet Port + 1× Gigabit Ethernet Port + 1× 10G SFP+ |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| Max. Power Consumption | 802.3bt: • EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out) • US: 25.4W (bt type3: af PSE out; bt type4: at PSE out); 802.3at: • EU: 20.2W (PSE disabled) • US: 25.4W (PSE disabled) Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input. |
| Dimensions ( W x D x H ) | 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm) (excluding antennas, waterproofing kit, and mounting kit) |
| Antenna | 4× External Dual-Band Omni Antennas • 2.4 GHz: 6.0 dBi • 5 GHz: 6.0 dBi |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Wall/pole mouting (kits included)，supporting horizontal ±45° adjustment • Optional bracket accessory APM-110: Supports vertical ±90°, horizontal ±45° adjustment • Optional bracket accessory APM-100: Supports vertical ±45° , horizontal ±45° adjustment(Note: Optional bracket accessories need to be purchased separately) |
TP-Link EAP668-Outdoor WIRELESS FEATURES |
|
|---|---|
| Concurrent Clients | 1,000+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Wireless Functions | • 1024-QAM • Mesh§ • Seamless Roaming(802.11k/v/r)§ • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Assignment (Adjust transmit Power on dBm) • Transmit Power Control • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • MU-MIMO (4 × 4 MU-MIMO DL/UL) • UL/DL OFDMA • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP); • FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3) |
TP-Link EAP668-Outdoor Management Features |
|
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
OTHERS |
|
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • EAP668-Outdoor HD • 4× External Dual-Band Omni Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
