Description

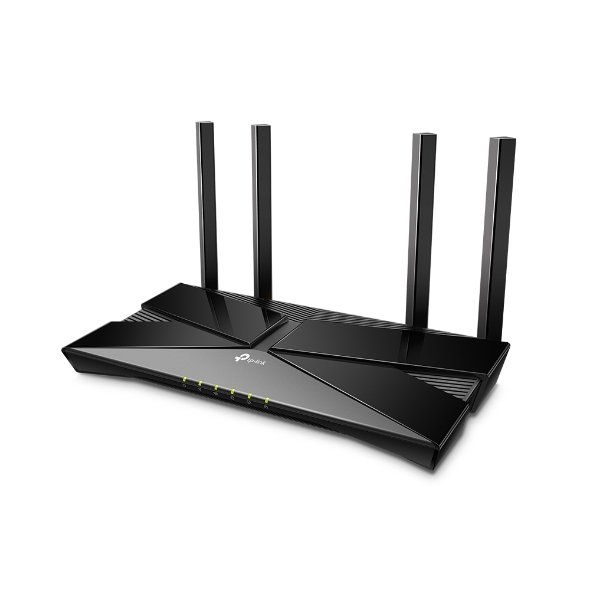

The TP-Link Archer AX10 AX1500 Dual Band Gigabit WiFi 6 Router reaches speeds of up to 1.5Gbps, combining 1201Mbps on the 5GHz band with 300Mbps on the 2.4GHz band, giving households a meaningful upgrade over older WiFi 5 routers. The TP-Link Archer AX10 AX1500 Dual Band Gigabit WiFi 6 Router is built around a 1.5GHz triple-core CPU, ensuring communication between the router and every connected device stays smooth and buffer-free, even as more devices join the network.
WiFi 6 technology lets the Archer AX10 connect more devices without dragging down performance, using OFDMA and MU-MIMO to communicate with multiple devices simultaneously while reducing lag. This translates to roughly 4 times the average throughput compared to older-generation routers, meaning smart TVs, phones, laptops, and smart home devices can all stay connected without the network slowing to a crawl during busy hours.
The TP-Link Archer AX10 AX1500 Dual Band Gigabit WiFi 6 Router includes 4 antennas paired with Beamforming technology, focusing wireless signal strength directly toward connected devices for broader, more reliable coverage throughout the home. Target Wake Time (TWT) technology helps extend battery life on connected devices by negotiating smarter data transfer schedules, while full Gigabit Ethernet ports let wired devices take full advantage of broadband speeds up to 1Gbps. Setup takes just minutes through the TP-Link Tether app, which also supports parental controls, guest network access, and ongoing network management from a smartphone. Below are the full technical specifications.
TP-Link Archer AX10 AX1500 WIRELESS |
|
|---|---|
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2-3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | High
Dual-Band OFDMA Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
TP-Link Archer AX10 AX1500 SECURITY |
|
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
TP-Link Archer AX10 AX1500 HARDWARE |
|
|---|---|
| Processor | 1.5 GHz Triple-Core CPU |
| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
TP-Link Archer AX10 AX1500 SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX10 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
TP-Link Archer AX10 AX1500 OTHER |
|
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-Link Archer AX10 AX1500 TEST DATA |
|
|---|---|
| WiFi Transmission Power | FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | 5 GHz: 11a 6Mbps:-97dBm 11a 54Mbps:-79dBm 11ac VHT20_MCS0:-96dBm 11ac VHT20_MCS11:-66dBm 11ac VHT40_MCS0:-94dBm 11ac VHT40_MCS11:-63dBm 11ac VHT80_MCS0:-91dBm 11ac VHT80_MCS11:-60dBm 11ax HE20_MCS0:-95dBm 11ax HE20_MCS11:-63dBm 11ax HE40_MCS0:-92dBm 11ax HE40_MCS11:-60dBm 11ax HE80_MCS0:-89dBm 11ax HE80_MCS11:-58dBm 2.4 GHz: 11g 6Mbps:-91dBm 11a 54Mbps:-74dBm 11n HT20_MCS0:-90dBm 11n HT20_MCS7:-73dBm 11n HT40_MCS0:-88dBm 11n HT40_MCS7:-70dBm |
TP-Link Archer AX10 AX1500 PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Content | Wi-Fi Router Archer AX10 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
