Description

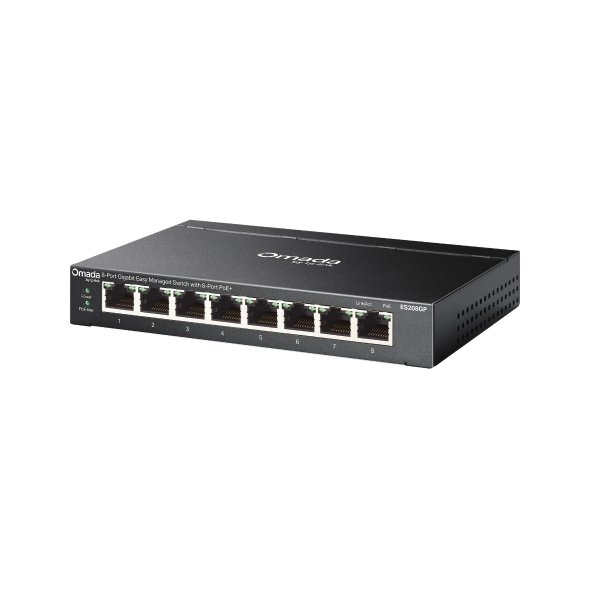

The TP-Link ES208GP is an 8-port Gigabit switch built for businesses that rely heavily on PoE-powered devices such as IP cameras, access points, and IP phones. Its compact, durable design makes it a practical fit for surveillance networks and small business deployments.
This compact and durable device features eight Gigabit RJ45 ports that support 802.3af/at PoE+ standards, delivering a total power budget of 64W, giving the TP-Link ES208GP enough capacity to power multiple connected devices simultaneously through a single cable.
Powering devices this way reduces clutter and simplifies installation in varied environments, whether deployed in a retail store, office, or a distributed surveillance setup with cameras spread across a building.
Management runs through TP-Link’s Omada Software Defined Networking platform, seamlessly integrating for centralized cloud management. Whether via the web interface or the Omada app, administrators can remotely monitor and manage the network from anywhere, ensuring 100% centralized cloud management without additional hardware controllers at every site.
A standout feature of the TP-Link ES208GP is its Extend Mode, which increases PoE transmission distance up to 820 feet (250 metres), making it especially useful for surveillance deployments where cameras sit far from the switch itself.
Reliability is reinforced through Remote Camera Reboot for efficient maintenance, allowing administrators to power-cycle unresponsive cameras without a physical site visit. QoS and Port Isolation further support reliable surveillance networking by prioritizing critical traffic and separating connected devices.
Setup is simple of TP-Link ES208GP thanks to plug-and-play connectivity, with Zero-Touch Provisioning available for fast, hassle-free deployment across multiple sites. Advanced Layer 2 features including IGMP Snooping, VLAN, and Link Aggregation give administrators more control as networks grow in complexity.
Built with a sturdy metal casing, the TP-Link ES208GP offers a fanless design for silent operation, making it ideal for noise-sensitive environments like libraries or quiet offices. Its flexible installation options allow for both desktop and wall-mounting setups depending on the space available.
Automatic Loop Prevention rounds out the switch’s reliability features, protecting the network from disruptive loops that can otherwise bring down connectivity across an entire site.
With its strong PoE+ power budget, extended transmission range, and centralized Omada management, the TP-Link ES208GP is a dependable choice for businesses building scalable, PoE-powered networks.
TP-Link ES208GP HARDWARE FEATURES |
|
|---|---|
| Interface | 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | √ |
| Power Supply | DC Power Adapter (Output: 53.5V DC / 1.31A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 8 ports • PoE Budget: 64W available for all PoE+ ports, 30W max per port • Remote Camera Reboot† • Up to 820ft (250m) PoE transmission distance** |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm) |
| Surge Protection | Service port: ±6 kV |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.904 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation – Static Link Aggregation – Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID |
| Transmission Method | Store and Forward |
| Management Features | |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics |
OTHERS |
|
|---|---|
| Certification | FCC, CE, RoHS |
| Package Content | • ES208GP • Power Adapter • Power Cord • Installation Guide • Rubber Feet |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
