Description
The TP-Link SX3032F Omada 32-Port 10GE SFP+ L2+ Managed Switch is a high-capacity switch designed to meet the demands of modern network environments. With extensive 10GE SFP+ slots, a robust switching capacity, and dual power supply modules for redundancy, this switch is ideal for aggregation layers in large-scale networks.
Featuring 32 10 Gbps SFP+ slots, the TP-Link SX3032F delivers a powerful 640 Gbps switching capacity and 240 Mpps forwarding rate, handling heavy traffic efficiently even in the most demanding enterprise data center or large office environments.
Built to be ideal for use in the aggregation layer, this switch provides the fiber-based bandwidth businesses need to consolidate traffic from multiple downstream switches into a single, high-speed backbone connection.

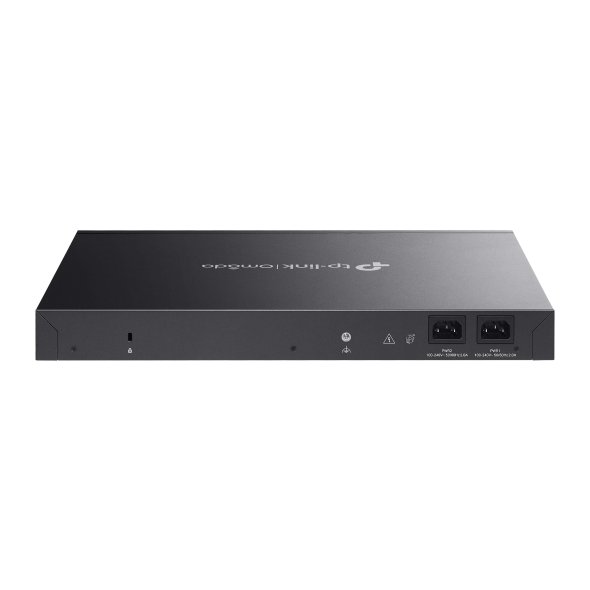

Reliability is reinforced by design, as two internal fixed power supply modules back each other up, making the TP-Link SX3032F an ideal choice for reliable networking architecture that stays operational even if one power source fails.
As part of the Omada Software Defined Networking (SDN) platform, the TP-Link SX3032F supports centralized cloud management via the web or the Omada app, allowing administrators to manage multiple sites through a single interface, anywhere, anytime.
Standalone management options are also included TP-Link SX3032F, such as web interface, CLI, SNMP, and RMON, giving administrators the flexibility to run the switch with or without a dedicated Omada controller.
Advanced features such as static routing, VLAN, ACL, QoS, and IGMP Snooping are supported to help build a highly scalable and robust network, providing administrators the tools they need to organize traffic and prioritize sensitive applications like voice and video.
Network resilience is well handled, as ERPS supports rapid protection and recovery in a ring topology, keeping traffic flowing even if a link in the network fails, an important feature for aggregation-layer deployments where downtime carries real business cost.
Built with a durable metal casing, rack-mountable design, and 2 internal fans, the TP-Link SX3032F operates in a wide temperature range and is certified CE, FCC, and RoHS, ensuring reliable performance across a variety of installation environments.
With support for up to 4K VLANs, Zero-Touch Provisioning through the Omada Cloud Controller, and comprehensive Layer 2+ features, the TP-Link SX3032F ensures robust connectivity and uninterrupted operation for diverse business networks needing reliable, high-performance aggregation.
TP-Link SX3032F Hardware Features
| Feature | Specification |
|---|---|
| Interface | • 32× 1/10Gbps SFP+ Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Fan Quantity | 2 internal fixed fans |
| Physical Security Lock | √ |
| Power Supply | • 1+1 Redundant Power Supply (internal fixed) • 100-240 V AC~50/60 Hz |
| Dimensions (W × D × H) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 49.4 W (220 V / 50 Hz) |
TP-Link SX3032F Performance
| Feature | Specification |
|---|---|
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
TP-Link SX3032F Software Features
| Feature | Specification |
|---|---|
| Quality of Service | • 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 static entries • 510 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring |
| L2 Multicast | • Supports 4000 (IPv4, IPv6) IGMP groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Intelligent Network Monitoring† • Unified Configuration† • Reboot Schedule†ISP Features: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow |
| VLAN | • VLAN Group (802.1q VLAN): Max 4K VLAN Groups • 802.1Q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN • GVRP • VLAN VPN (QinQ): VLAN Mapping, VLAN Replace • Voice VLAN |
| Access Control List | • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL applies to Port/VLAN |
| Security | • IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode • 802.1X – Port base authentication – MAC-based authentication – VLAN Assignment – MAB – Guest VLAN – Radius authentication and accountability support • AAA (including TACACS+) • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC-based access control |
| IPv6 | • IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
TP-Link SX3032F Management
| Feature | Specification |
|---|---|
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features | • Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP Auto Install • Dual Image, Dual Configuration • CPU Monitoring • Password Recovery • SNTP • System Log |
Others
| Feature | Specification |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Content | • SX3032F Switch • 2× Power Cords • Quick Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: -5–45 °C (23–113 °F) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
