Description
For flexible indoor or outdoor deployments that predate Wi-Fi 6 but still need dependable performance, the Ubiquiti UAP-FlexHD remains a solid choice within the UniFi lineup. Built on 802.11ac Wave 2 technology, it’s designed to deliver strong wireless coverage in a compact, weatherproof form factor.
At its core, the Ubiquiti UAP-FlexHD uses a six-spatial-stream, dual-radio design, combining a 5 GHz radio with 4×4 MU-MIMO capable of up to 1.733 Gbps with a 2.4 GHz radio offering 300 Mbps, for a combined throughput of roughly 2.033 Gbps. That’s enough capacity for demanding home networks, small offices, and mixed-use commercial spaces.
Coverage is rated at approximately 140 m² (1,500 ft²) per unit, with support for 200+ concurrent clients — figures that put it in a similar performance class to entry-level enterprise access points, despite its small size.
One of the standout aspects of the Ubiquiti UAP-FlexHD is its mounting flexibility. It ships with tabletop, wall, and pole mounting brackets, allowing it to be placed almost anywhere — on a shelf, mounted to a wall, or attached to an outdoor pole — without needing separate accessories for each scenario. When installed LED-side up using the included mount, the unit becomes weatherproof, making it suitable for both indoor rooms and outdoor areas like patios, courtyards, or building exteriors.

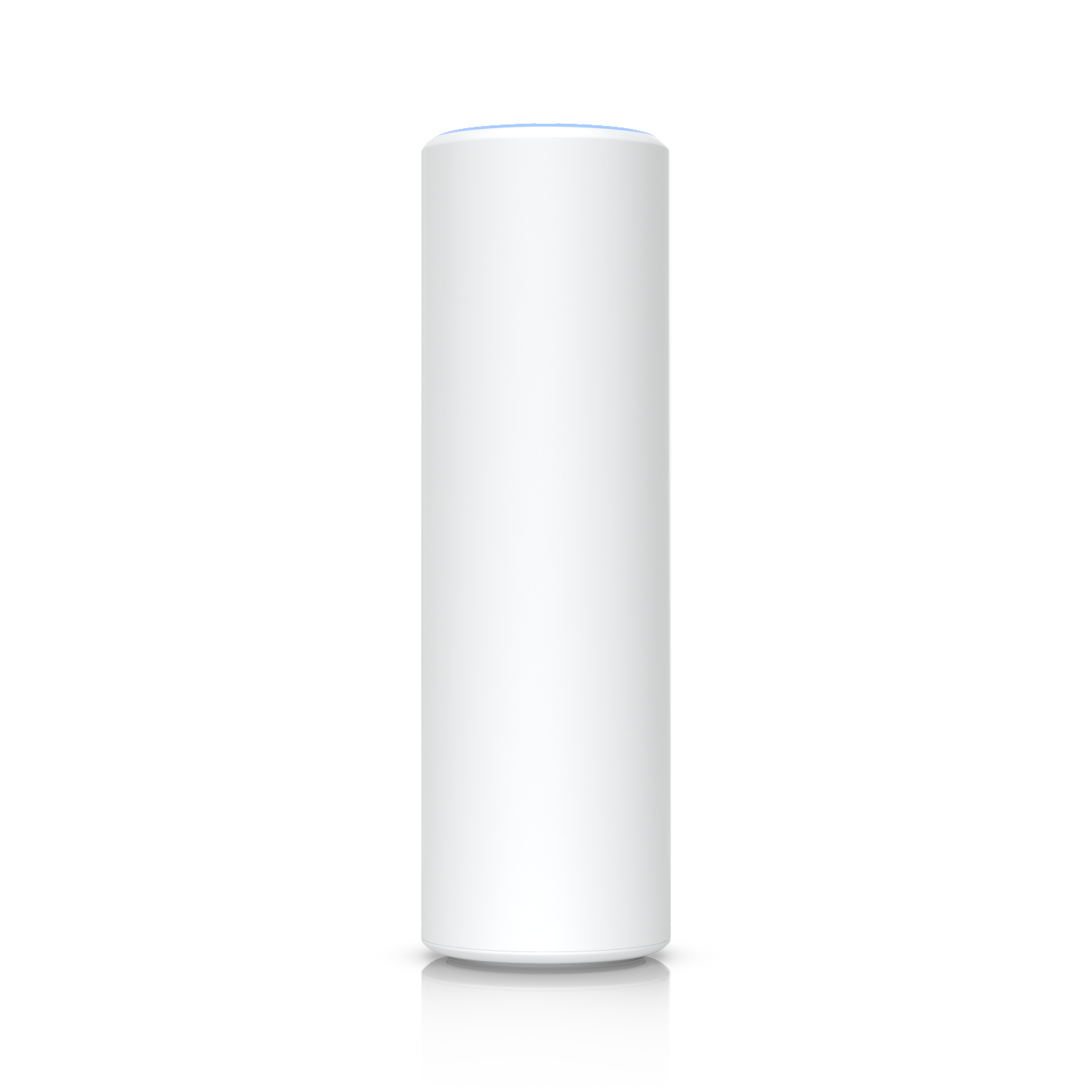

Physically, the access point is small and cylindrical, measuring about 48.5 mm in diameter and 159.5 mm in length, and weighing roughly 315 grams. Its discreet shape makes it easy to place near users for optimal signal strength without drawing attention, a useful trait for offices, retail spaces, or homes where visible hardware isn’t ideal.

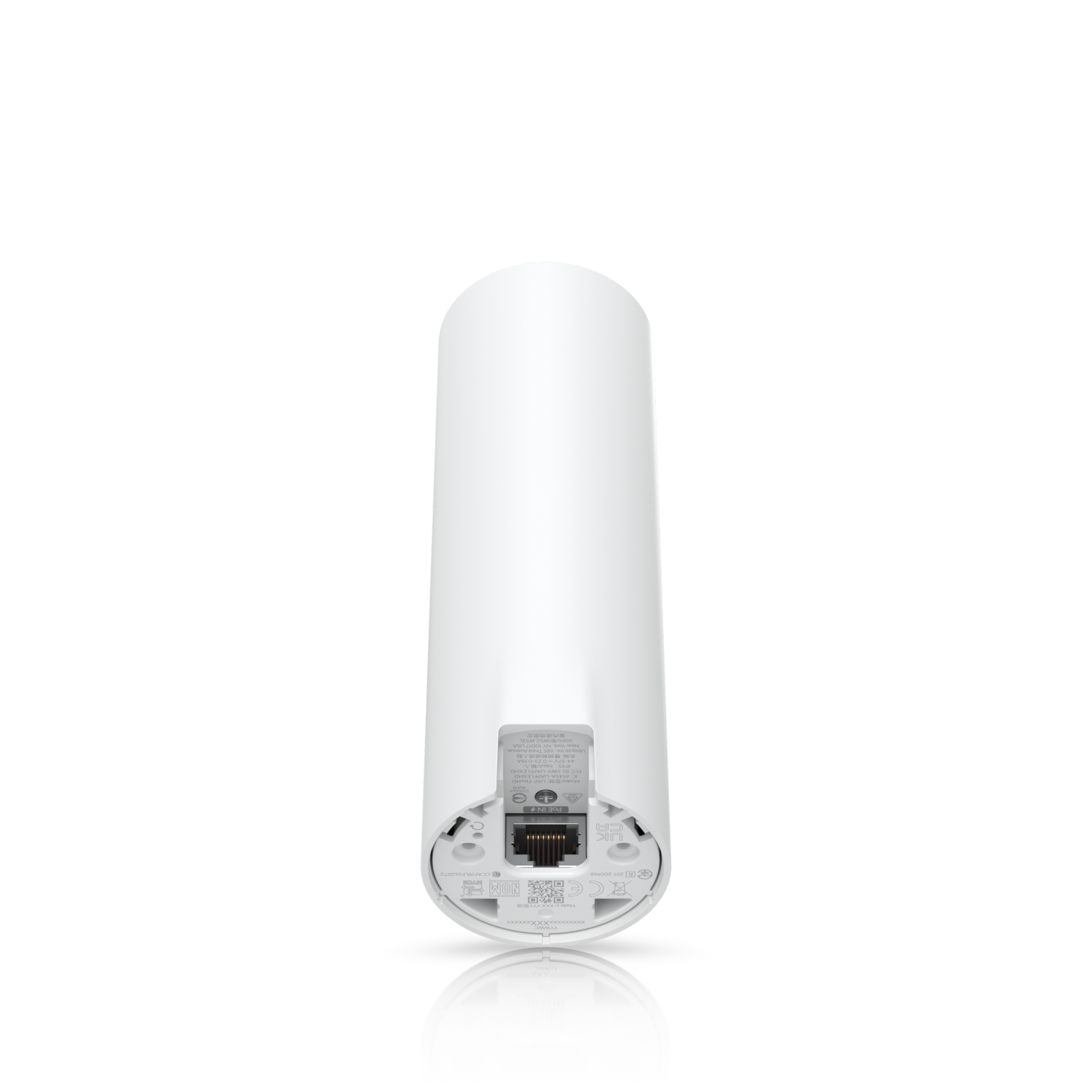

Power comes through 802.3af PoE, with a compatible Gigabit PoE adapter included in the box, and connectivity runs through a single Gigabit Ethernet port. Bluetooth support is also built in, aiding features like device discovery during setup.
Management is handled through the UniFi Network application, available as a web dashboard or mobile app, allowing administrators to configure settings, monitor connected clients, and integrate the access point into a larger UniFi network alongside switches, gateways, and other UniFi Wi-Fi devices.
Overall, the Ubiquiti UAP-FlexHD offers a practical mix of solid Wi-Fi 5 performance, versatile mounting options, and weatherproof durability, making it a dependable pick for anyone building or expanding a UniFi network without needing the latest Wi-Fi 6 or Wi-Fi 7 standards.
Ubiquiti UAP-FlexHD Product Overview
| Specification | Details |
|---|---|
| Dimensions | Ø48.5 × 159.5 mm (Ø1.9 × 6.3″) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Maximum Client Count | 200+ |
| Uplink | GbE |
| Mounting | Wall, Pole, Table (Mounts Included) |
| Power Method | PoE |
Ubiquiti UAP-FlexHD Performance
| Specification | Details |
|---|---|
| 5 GHz MIMO | 4 × 4 (DL MU-MIMO) |
| 2.4 GHz MIMO | 2 × 2 (DL MU-MIMO) |
| 5 GHz Max Data Rate | 1.7 Gbps (BW80) |
| 2.4 GHz Max Data Rate | 300 Mbps (BW40) |
| 5 GHz Antenna Gain | 4 dBi |
| 2.4 GHz Antenna Gain | 1.6 dBi |
| 5 GHz Max TX Power | 26 dBm |
| 2.4 GHz Max TX Power | 23 dBm |
| Max BSSIDs | 8 per Radio |
Ubiquiti UAP-FlexHD Supported Data Rates
| Standard | Data Rate |
|---|---|
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps |
| 802.11n | 6.5 Mbps to 300 Mbps |
Ubiquiti UAP-FlexHD Features
| Feature | Availability |
|---|---|
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
Ubiquiti UAP-FlexHD Captive Hotspot Portal
| Feature | Availability |
|---|---|
| Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
Ubiquiti UAP-FlexHD Hardware
| Specification | Details |
|---|---|
| Max Power Consumption | 10.5W |
| PoE Adapter Included | ✓ |
| Supported Voltage Range | 44–57V DC |
| Networking Interface | (1) GbE RJ45 Port |
| Weight | 315 g (11.1 oz) |
| Management | Ethernet |
| LEDs | System Status |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 (MHz) |
Ubiquiti UAP-FlexHD Operating Frequency
US/CA
- 2400 – 2472 MHz
- U-NII-1: 5150 – 5250 MHz
- U-NII-2A: 5250 – 5350 MHz
- U-NII-2C: 5470 – 5725 MHz
- U-NII-3: 5725 – 5850 MHz
Worldwide
- 2400 – 2483.5 MHz
- 5150 – 5850 MHz
Ubiquiti UAP-FlexHD Environmental
| Specification | Details |
|---|---|
| Operating Temperature | -30°C to 70°C (-22°F to 158°F) |
| Operating Humidity | 5% to 95% Noncondensing |
Ubiquiti UAP-FlexHD Compliance & Certifications
| Specification | Details |
|---|---|
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, Anatel: 05383-20-08356 |
Ubiquiti UAP-FlexHD Software
| Requirement | Details |
|---|---|
| Application Requirements | UniFi Network Version 6.0.45 and later |
