Description
The HSGQ-G08R 8 Port GPON OLT is a compact yet powerful cassette-style Optical Line Terminal built to meet ITU-T G.984/G.988 standards, along with the relevant China Telecom and China Unicom GPON specifications. This makes the HSGQ-G08R 8 Port GPON OLT a strong choice for ISPs and system integrators managing operator access and enterprise park networks that need meaningfully more capacity than a 4-port unit.

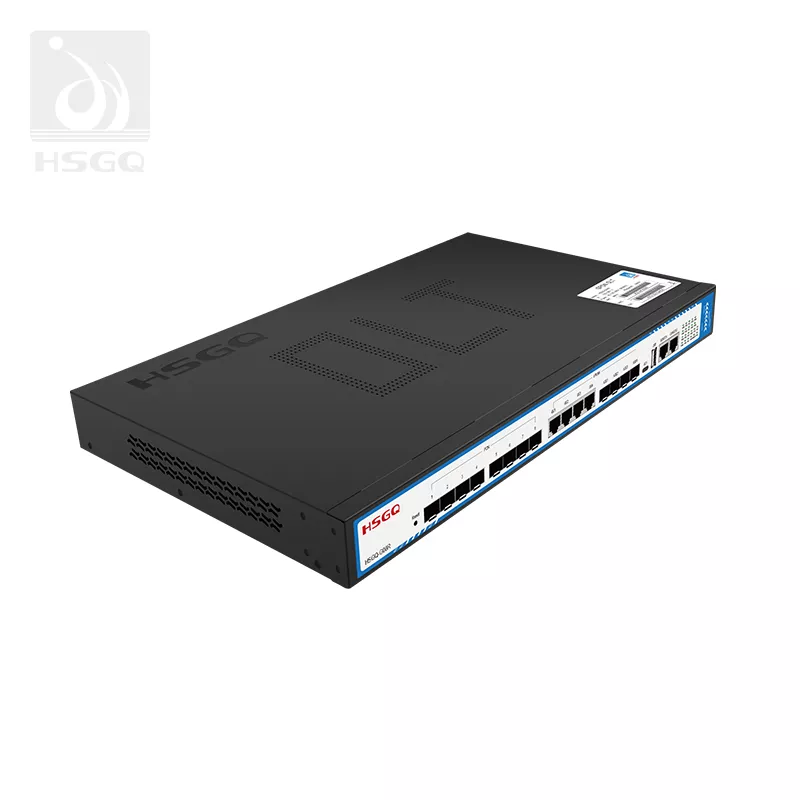

The HSGQ-G08R 8 Port GPON OLT provides 8 downlink GPON ports, 4 GE RJ45 ports, 2 GE SFP ports, and 2 10G SFP+ uplink ports, all housed in a space-saving 1U chassis for easy installation. The unit is built with a switching capacity of 122Gbps and a forwarding rate of 90.77Mpps, giving it the throughput headroom needed to serve a larger subscriber base without bottlenecking.
Built for reliable long-distance optical fiber access, the HSGQ-G08R 8 Port GPON OLT offers robust management, maintenance, and monitoring capability through ETH and Console (RS232 Serial) management interfaces, and supports flexible power configurations for added uptime protection. It’s well suited to sparsely populated or remote areas, smart industrial parks, commercial premises, and standard FTTH deployments. Below are the full technical specifications.
HSGQ-G08R 8 Port Gpon OLT Product Specifications
| Specification | Details |
|---|---|
| Switching Capacity | 82 Gbps |
| Forwarding Capacity | 68.45 Mpps |

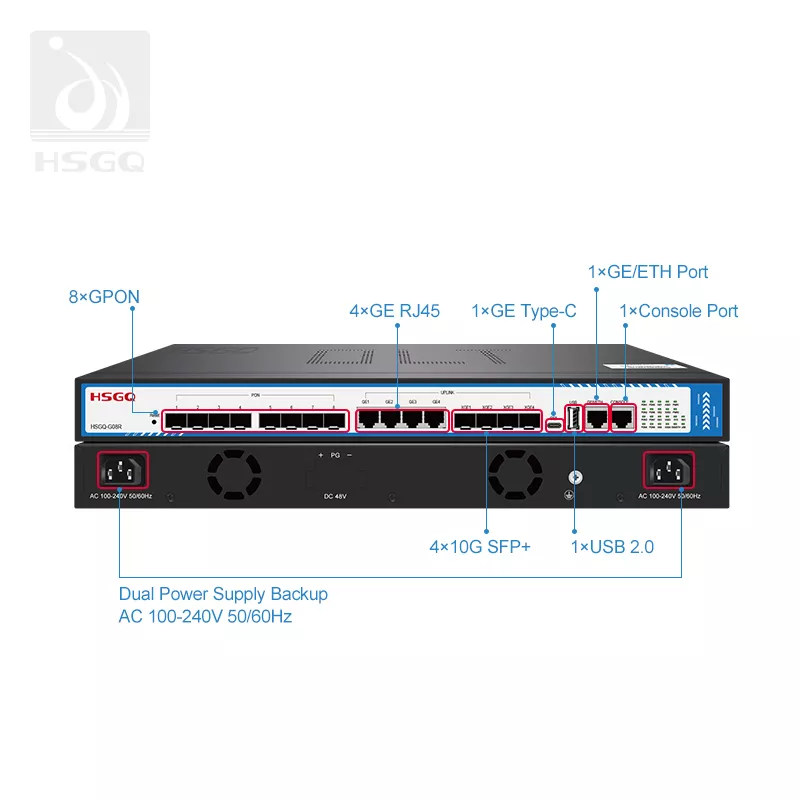

| Service Ports | 8 × PON, 4 × GE RJ45, 2 × GE SFP, 2 × 10GE SFP+ |
| Redundancy Design | Dual Power Supply |
| Power Input | Double AC Input, Double DC Input, AC + DC Input |
| Power Supply | AC Input: 100–240V, 50/60Hz |
| Power Consumption | 55W |

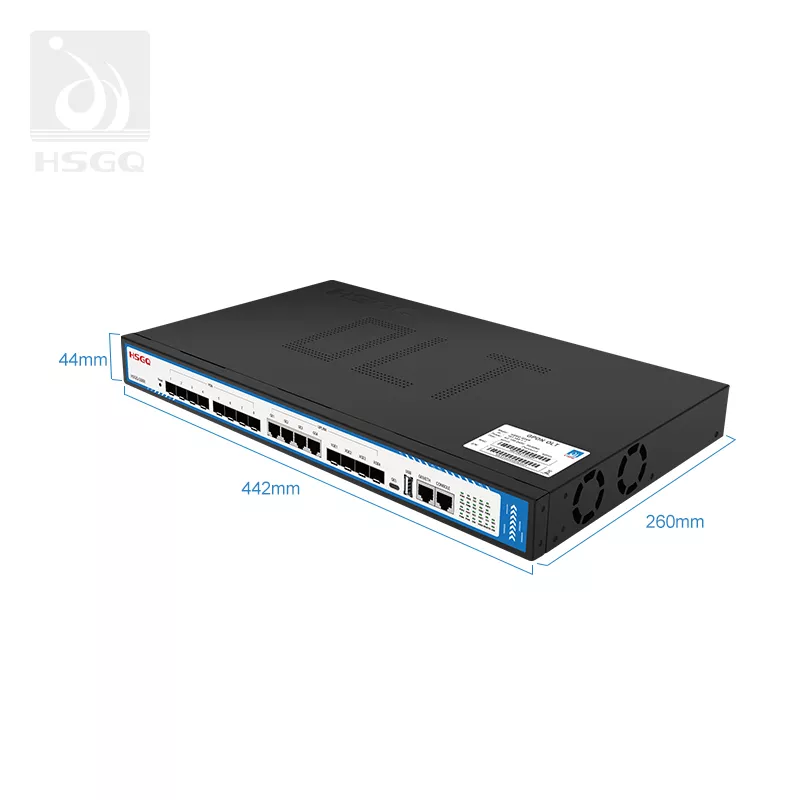

| Dimensions (W × L × H) | 440 × 380 × 44 mm |
| Weight (Full-Loaded) | ≤5 kg |
HSGQ-G08R 8 Port Gpon OLT Environmental Conditions
| Parameter | Details |
|---|---|
| Working Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10%–90% (Non-condensing) |
HSGQ-G08R 8 Port Gpon OLT PON Features
| Feature | Details |
|---|---|
| Standard | ITU-T G.984.x / G.988 |
| Authentication Modes | SN, LOID, LOID Password, LOID + LOID Password |
| Maximum Transmission Distance | Up to 20 KM (Single Fiber) |
| ONU Capacity | Up to 128 ONUs per Single Fiber |
| Split Ratio | 1:128 per PON Port |
| DBA Algorithm | 64 Kbit/s Particle |
| OMCI Management | Standard OMCI Management Function |
| ONU Software Upgrade | Batch Software Upgrade |
| Optical Parameter Detection | Supported |
| ONU Registration | Auto Registration with Default Profile |
HSGQ-G08R 8 Port Gpon OLT Layer 2 Features
MAC
| Feature | Details |
|---|---|
| MAC Black Hole | Supported |
| Port MAC Limit | Supported |
| MAC Address Table | 32K |
VLAN
| Feature | Details |
|---|---|
| VLAN Entries | 4K |
| VLAN Classification | Port-Based |
| Uplink VLAN | VLAN Swap & VLAN Remark |
Spanning Tree
| Feature | Details |
|---|---|
| STP | Supported |
| RSTP | Supported |
| MSTP | Supported |
| Loop Detection | Supported |
Port Features
| Feature | Details |
|---|---|
| Link Aggregation | Supported |
| Port Mirroring | Supported |
Service Port
| Feature | Details |
|---|---|
| Service-Port Configuration | Auto Configuration by Profile |
| VLAN Modes | Transparent, Tag, Stacking, Aggregation |
HSGQ-G08R 8 Port Gpon OLT Layer 3 Features
| Feature | Details |
|---|---|
| Static Routing | Supported |
| DHCP Server | Supported |
| DHCP Snooping | Supported |
| DHCP Relay | Supported |
| OSPF | Supported |
HSGQ-G08R 8 Port Gpon OLT Security Features
User Security
| Feature | Details |
|---|---|
| Anti-ARP Spoofing | Supported |
| Anti-ARP Flooding | Supported |
| Port Isolation | Supported |
| MAC Address Binding | Port-Based MAC Address Binding and Filtering |
Device Security
| Feature | Details |
|---|---|
| DoS Protection | Prevents Various DoS and Virus Attacks Against the CPU |
| User Management | Hierarchical Management and Password Protection |
| Secure Shell | SSHv2 |
| Login Security | IP Login via Telnet |
Network Security
| Feature | Details |
|---|---|
| MAC & ARP Traffic Examination | User-Based |
| ARP Traffic Control | Restrict ARP Traffic and Force Out Users with Abnormal ARP Traffic |
| Dynamic ARP Binding | Supported |
| IP + VLAN + MAC + Port Binding | Supported |
| ACL | L2–L7 ACL Flow Filtration (80 Bytes of User-Defined Packet Header) |
| Broadcast / Multicast Control | Port-Based Suppression and Auto Shutdown Risk Port |
| DHCP Option 82 & PPPoE+ | Upload User’s Physical Location |
HSGQ-G08R 8 Port Gpon OLT QoS
| Feature | Details |
|---|---|
| Rate Limiting | Port or Self-Defined Flow |
| Flow Monitoring | General Flow Monitor & Two-Speed Tri-Color Monitor |
| Traffic Management | CAR (Committed Access Rate), Traffic Shaping, Flow Statistics |
| Packet Mirroring | Interface and Self-Defined Flow |
| Priority Marking | 802.1p, DSCP Priority Remark |
| Queue Scheduling | 8 Priority Queues, SP, WRR, SP + WRR |
| Congestion Avoidance | TailDrop, WRED |
HSGQ-G08R 8 Port Gpon OLT ACL
| Feature | Details |
|---|---|
| Standard ACL | Supported |
| Extended ACL | Supported |
| Time Range ACL | Supported |
| Flow Classification | Based on Source/Destination MAC, VLAN, 802.1p, ToS, DiffServ, IPv4/IPv6, TCP/UDP Port, Protocol Type |
| Packet Filtering | L2–L7, Up to 80 Bytes of IP Packet Header |
HSGQ-G08R 8 Port Gpon OLT Multicast
| Feature | Details |
|---|---|
| IGMP Snooping | IGMP v1 / v2 |
| IGMP Fast Leave | Supported |
| IGMP Proxy | Supported |
| IGMP v3 Compatibility | Supported |
HSGQ-G08R 8 Port Gpon OLT Maintenance
Network Maintenance
| Feature | Details |
|---|---|
| Port Monitoring | Real-Time Utilization & Transmit/Receive Statistics |
| Web Management | Powerful WEB GUI |
| Logging | Data Logging & RFC 3164 BSD Syslog Protocol |
| Ping | Supported |
Device Management
| Feature | Details |
|---|---|
| Management Interfaces | Console Port, Telnet, SSH |
| Out-of-Band Management | Supported |
| SNMP | SNMP v1/v2 |
| RMON | Groups 1, 2, 3, 9 MIB |
| SMTP | Supported |
| Fan Management | Supported |
HSGQ-G08R 8 Port Gpon OLT Reliability
Loop Protection
| Feature | Details |
|---|---|
| Loopback Detection | Supported |
Link Protection
| Feature | Details |
|---|---|
| RSTP / MSTP Recovery Time | ＜1 s |
| Link Aggregation Recovery Time | ＜10 ms |
Device Protection
| Feature | Details |
|---|---|
| Power Backup | 1+1 Power Hot Backup |
