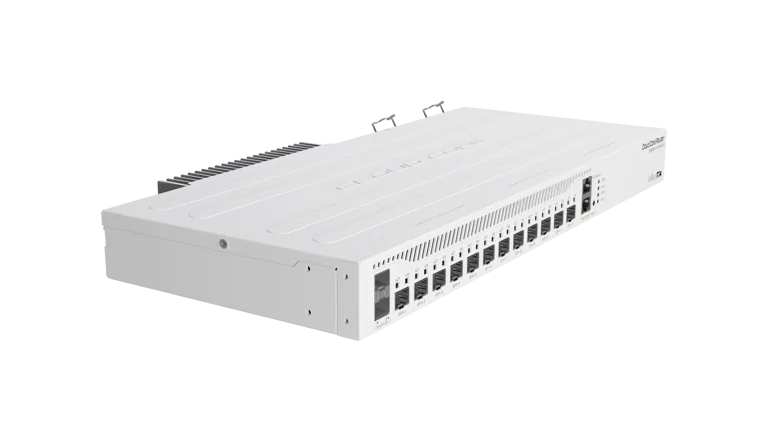

MikroTik CCR2004-1G-12S+2XS — High-Performance Cloud Core Router with 10G SFP+ and 25G SFP28

The MikroTik CCR2004-1G-12S+2XS is a 1U rackmount Cloud Core Router built for networks that have outgrown standard Gigabit and 10G infrastructure and need to move into 25G territory.

It combines a powerful quad-core CPU, an extensive mix of SFP, SFP+, and SFP28 ports, and dual redundant power supplies into a single professional-grade unit — making the MikroTik CCR2004-1G-12S+2XS a strong core or edge router for ISPs, data centers, and large enterprise networks across Pakistan.

Whether you’re building out ISP core infrastructure, running BGP at scale, or need a dependable high-throughput router for a data center or carrier network, the CCR2004-1G-12S+2XS is designed to handle demanding workloads without compromise.

MikroTik CCR2004-1G-12S+2XS Performance: Built for Real Workloads

At the core of the CCR2004-1G-12S+2XS is a quad-core AL32400 ARM64 CPU running at 1.7 GHz — MikroTik describes it as its most powerful single-core performance to date, delivering up to 3.4 Gbps in single-tunnel throughput and strong results in demanding BGP feed processing.

Paired with 4GB of ECC RAM and 128MB of NAND storage, the MikroTik CCR2004-1G-12S+2XS has more than enough headroom for large routing tables, complex firewall rule sets, and multiple VPN tunnels running simultaneously without slowing down.

The router runs RouterOS v7 with a Level 6 license already included.

That means no extra license purchase is required — the CCR2004-1G-12S+2XS is ready to configure and deploy straight out of the box, with the full range of RouterOS v7 features, including improved WireGuard VPN support and hardware IPsec acceleration.

In terms of raw performance, MikroTik positions the CCR2004-1G-12S+2XS as being on par with its well-established CCR1009 and CCR1016 routers, giving buyers a modern equivalent with far more SFP+/SFP28 port density.

MikroTik CCR2004-1G-12S+2XS Connectivity: 1G, 10G, and 25G in One Router

Connectivity is where the MikroTik CCR2004-1G-12S+2XS truly stands apart from typical enterprise routers.

It includes 1 Gigabit LAN port for management or basic connectivity, 12 x 10G SFP+ ports for high-speed uplinks or downstream connections, and 2 x 25G SFP28 ports for the fastest-growing tier of network infrastructure.

This combination of 1, 10, and 25 Gbps ports in a single device means the MikroTik CCR2004-1G-12S+2XS can pair naturally with other MikroTik multiport switches like the CRS317-1G-16S+RM, CRS312-4C+8XG-RM, or CRS326-24S+2Q+RM, letting network operators scale from Gigabit access all the way up to 25G aggregation without needing separate hardware for each tier.

A dedicated RJ45 serial console port is also included, giving administrators direct terminal access for configuration and troubleshooting — useful for network engineers who need low-level access without relying on remote management tools.

Redundant Power for Always-On Networks

The MikroTik CCR2004-1G-12S+2XS ships with dual redundant power supplies, meaning the router can keep running even if one power supply fails or loses input power — a critical feature for ISPs, data centers, or carrier-grade deployments where unplanned downtime isn’t an option.

Two internal fans keep the unit cool under sustained heavy loads, and the CCR2004-1G-12S+2XS includes built-in CPU temperature, PCB temperature, and voltage monitoring, giving administrators visibility into the router’s health in real time.

Rackmount Design Built for the Data Center

The MikroTik CCR2004-1G-12S+2XS measures 443 × 224 × 44mm and is built as a standard 1U rackmount unit, so it installs directly into a standard network rack alongside other core networking equipment.

It’s rated for an ambient operating temperature range of -20°C to 60°C, and MikroTik rates the unit with an MTBF (Mean Time Between Failures) of approximately 200,000 hours at 25°C — a strong indicator of long-term reliability for continuous, always-on core routing duty.

IPsec Hardware Acceleration

The MikroTik CCR2004-1G-12S+2XS includes IPsec hardware acceleration, allowing it to handle encrypted VPN traffic at significantly higher throughput than software-only routing platforms — an important capability for ISPs and enterprises running site-to-site VPNs or securing traffic between data center locations.

Included Software License and Updates

RouterOS v7 comes preinstalled and fully licensed (Level 6) on the MikroTik CCR2004-1G-12S+2XS — there’s no separate software purchase needed to start using it.

MikroTik provides free software updates for the life of the product, or a minimum of 5 years from your purchase date, so you’re covered for ongoing bug fixes, security patches, and feature updates well into the future.

Who Should Consider the MikroTik CCR2004-1G-12S+2XS

This router is best suited for buyers who need serious routing throughput and high port density at the 10G and 25G tier. Common use cases for the MikroTik CCR2004-1G-12S+2XS include:

ISP Core and Edge Routing — With 12 x 10G SFP+ and 2 x 25G SFP28 ports, plus strong BGP feed processing performance, it’s a natural fit for ISPs running core or edge routing at scale.

Data Center Aggregation — The mix of 10G and 25G ports makes the CCR2004-1G-12S+2XS a practical aggregation point for data centers moving beyond standard Gigabit infrastructure.

Carrier-Grade and Always-On Deployments — Dual redundant power supplies and strong MTBF ratings make it a dependable choice for networks that can’t tolerate unplanned downtime.

High-Throughput VPN and Security Gateways — With IPsec hardware acceleration, the MikroTik CCR2004-1G-12S+2XS handles encrypted site-to-site or data center interconnect traffic without sacrificing performance.

Enterprise Networks Scaling Beyond Gigabit — For organizations outgrowing standard Gigabit switching and routing, the CCR2004-1G-12S+2XS offers a clear upgrade path into 10G and 25G territory.

Why Choose the MikroTik CCR2004-1G-12S+2XS

The MikroTik CCR2004-1G-12S+2XS brings together a powerful quad-core CPU, an extensive 1G/10G/25G port layout, dual redundant power supplies, and IPsec hardware acceleration — all in a compact 1U rackmount unit built for serious networking workloads.

For ISPs, data centers, and enterprises in Pakistan looking for a MikroTik CCR2004-1G-12S+2XS router that delivers carrier-class performance and port density without the cost of premium enterprise hardware, this model stands out as one of the most capable options in MikroTik’s Cloud Core Router lineup.

Specifications of MikroTik CCR2004-1G-12S+2XS.
