Description

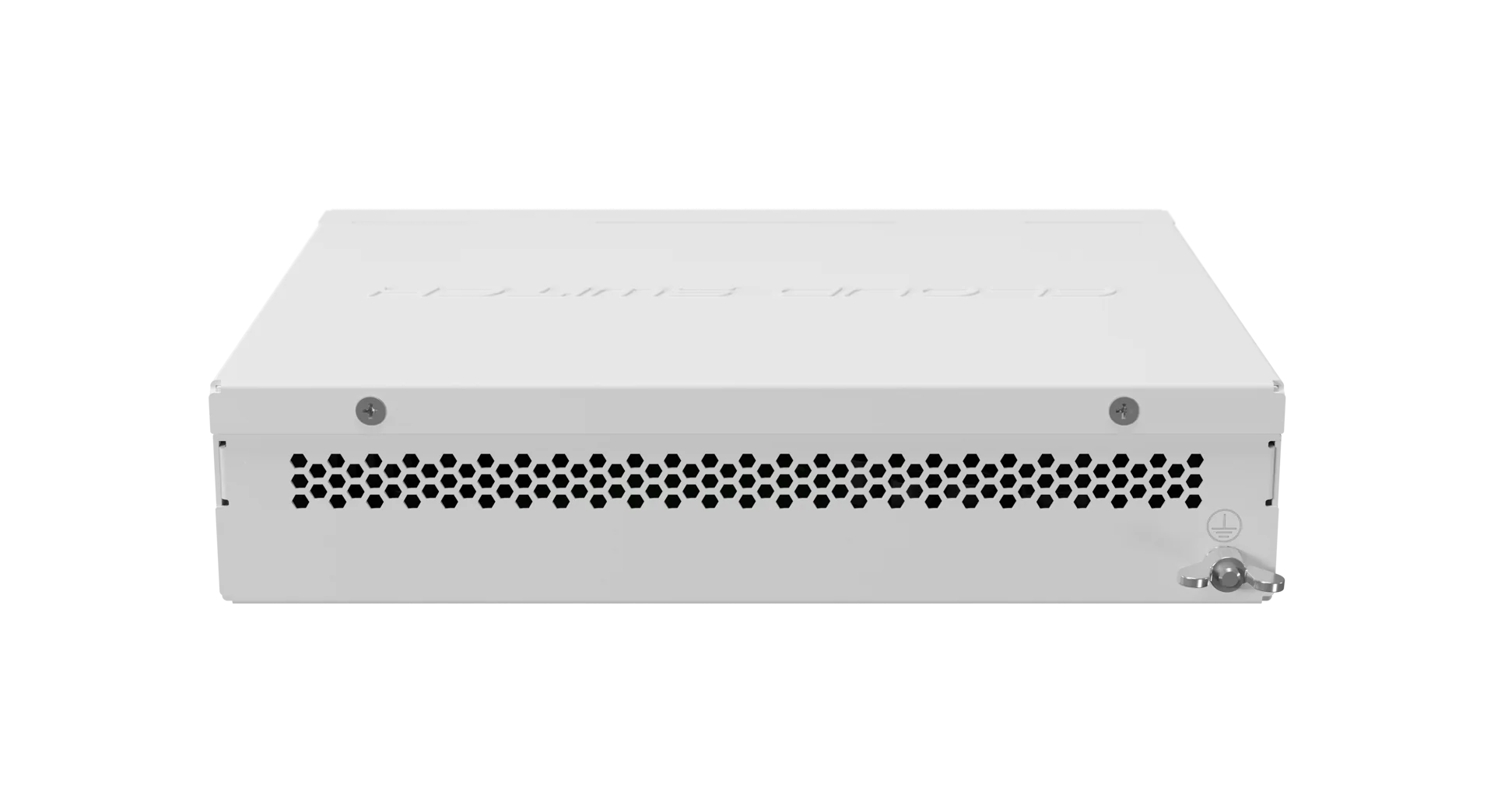

The MikroTik CSS610-8G-2S+IN is a compact Cloud Smart switch built for businesses that want serious 10-gigabit fiber uplinks combined with everyday Gigabit connectivity in a small, affordable package. It’s designed as MikroTik’s answer to the everlasting demand for more networking power in a simple, easy-to-use device.
At its core, the switch offers 8 Gigabit Ethernet ports alongside 2 SFP+ ports supporting 10 Gigabit fiber connectivity. This combination allows businesses to connect computers, servers, and other standard networking equipment while still having fast fiber uplinks available for bandwidth-intensive applications.
With data transfer rates of up to 1 Gbps on the copper ports and 10 Gbps on the SFP+ ports, the MikroTik CSS610-8G-2S+IN delivers reliable performance for a wide range of small office and home network setups.
One of the standout features of this switch is its lightweight SwOS operating system, which is easy to configure directly from a web browser. This gives users all the basic functionality of a managed switch, plus more advanced tools for those who want them.
Management flexibility is another area where the MikroTik CSS610-8G-2S+IN performs well. It supports port-to-port forwarding, broadcast storm control, MAC filtering, VLAN configuration, traffic mirroring, and bandwidth limitation, giving administrators genuine control over their network.
Power flexibility rounds out the feature set, with the switch supporting a DC jack input ranging from 12 to 57V alongside passive PoE-in, giving installers multiple options depending on their setup and location.
Built with a compact desktop case and fully passive cooling, the switch operates silently, making it a practical fit for home offices, small businesses, and any environment where noise matters.
With a maximum power consumption of just 11W, and as low as 5W without attachments, the device runs efficiently even under continuous operation, helping keep energy costs low.
Whether the goal is adding fast fiber uplinks to a small office network or building affordable, high-performance infrastructure for a growing business, this device offers a dependable balance of speed, simplicity, and value.
Overall, the MikroTik CSS610-8G-2S+IN stands out as a practical choice for businesses that want 10G fiber flexibility in a compact, cost-effective package, all backed by the reliability of SwOS.
MikroTik CSS610-8G-2S+IN Specifications
| Specification | Details |
|---|---|
| Product Code | CSS610-8G-2S+IN |
| Switch Chip Model | 88E6193X |
| Dimensions | 200 × 164 × 44 mm |
| Operating System | SwitchOS Lite |
| Storage Size | 64 KB |
| Storage Type | FLASH |
| MTBF | Approximately 200,000 hours at 25°C |
| Tested Ambient Temperature | -20°C to 60°C |
MikroTik CSS610-8G-2S+IN Powering
| Specification | Details |
|---|---|
| DC Inputs | 2 (DC Jack, PoE-IN) |
| DC Jack Input Voltage | 12–57 V |
| Maximum Power Consumption | 11 W |
| Maximum Power Consumption Without Attachments | 5 W |
| PoE Input | Passive PoE |
| Cooling Type | Passive |
| PoE Input Voltage | 12–57 V |
MikroTik CSS610-8G-2S+IN Ethernet & Fiber
| Specification | Details |
|---|---|
| 10/100/1000 Ethernet Ports | 8 |
| SFP+ Ports | 2 |
MikroTik CSS610-8G-2S+IN Certification & Included Parts
| Specification | Details |
|---|---|
| Certification | CE, EAC, ROHS |
| IP Rating | IP20 |
| Power Adapter | 24V 0.8A Power Adapter |
| Fastening Set | K-48 Fastening Set |
| Rack Ears | Rack ears for CSS610-8G-2S+IN |
MikroTik CSS610-8G-2S+IN Switching Performance
| Mode | Configuration | 1518 Byte | 512 Byte | 64 Byte |
|---|---|---|---|---|
| Switching | Non-blocking Layer 2 Throughput | 2,275.7 kpps / 27,635.9 Mbps | 6,578.9 kpps / 26,947.4 Mbps | 41,666.7 kpps / 21,333.3 Mbps |
| Switching | Non-blocking Layer 2 Capacity | 2,275.7 kpps / 55,271.8 Mbps | 6,578.9 kpps / 53,894.7 Mbps | 41,666.7 kpps / 42,666.7 Mbps |
| Switching | Non-blocking Layer 1 Throughput | 2,275.7 kpps / 28,000 Mbps | 6,578.9 kpps / 28,000 Mbps | 41,666.7 kpps / 28,000 Mbps |
| Switching | Non-blocking Layer 1 Capacity | 2,275.7 kpps / 56,000 Mbps | 6,578.9 kpps / 56,000 Mbps | 41,666.7 kpps / 56,000 Mbps |
