Description

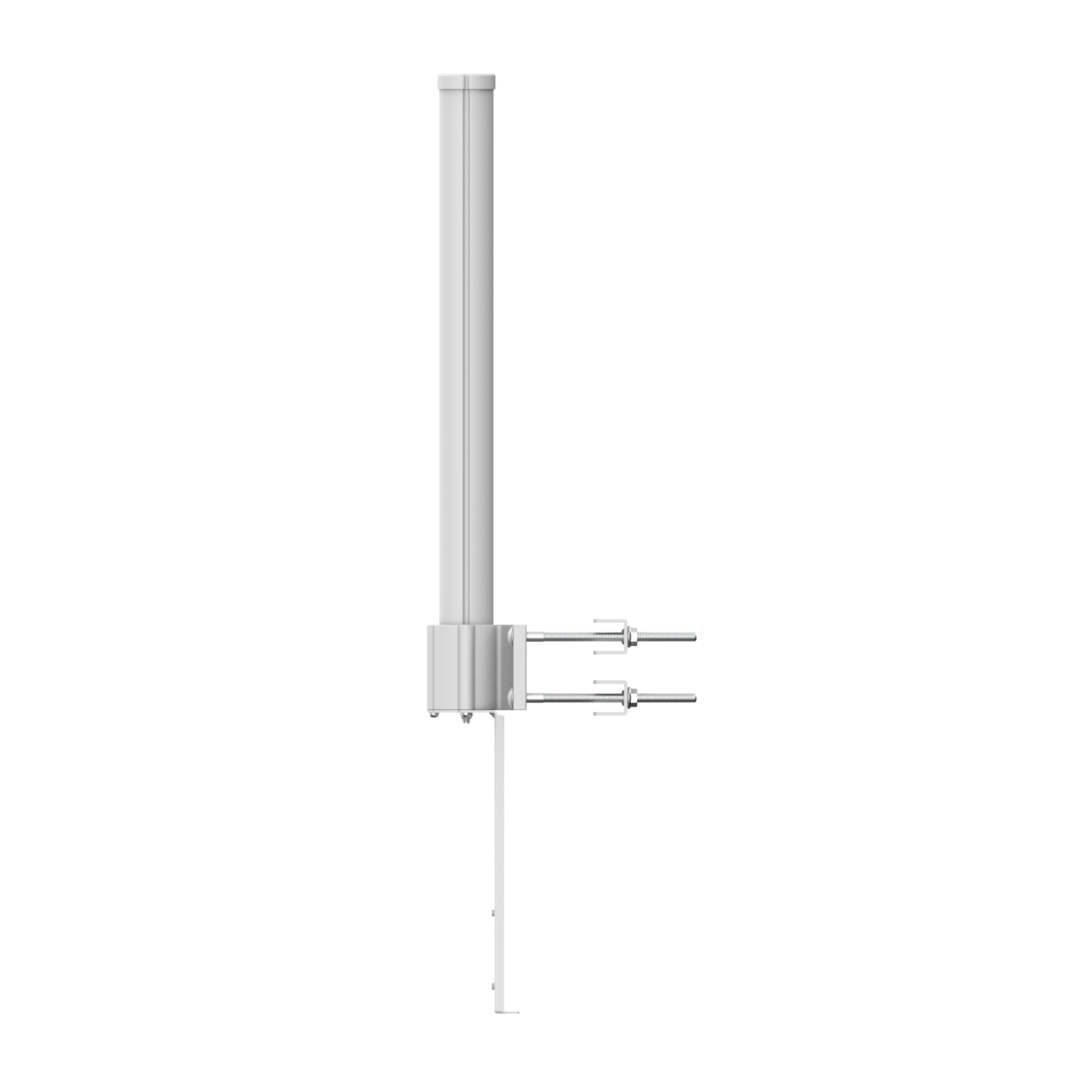

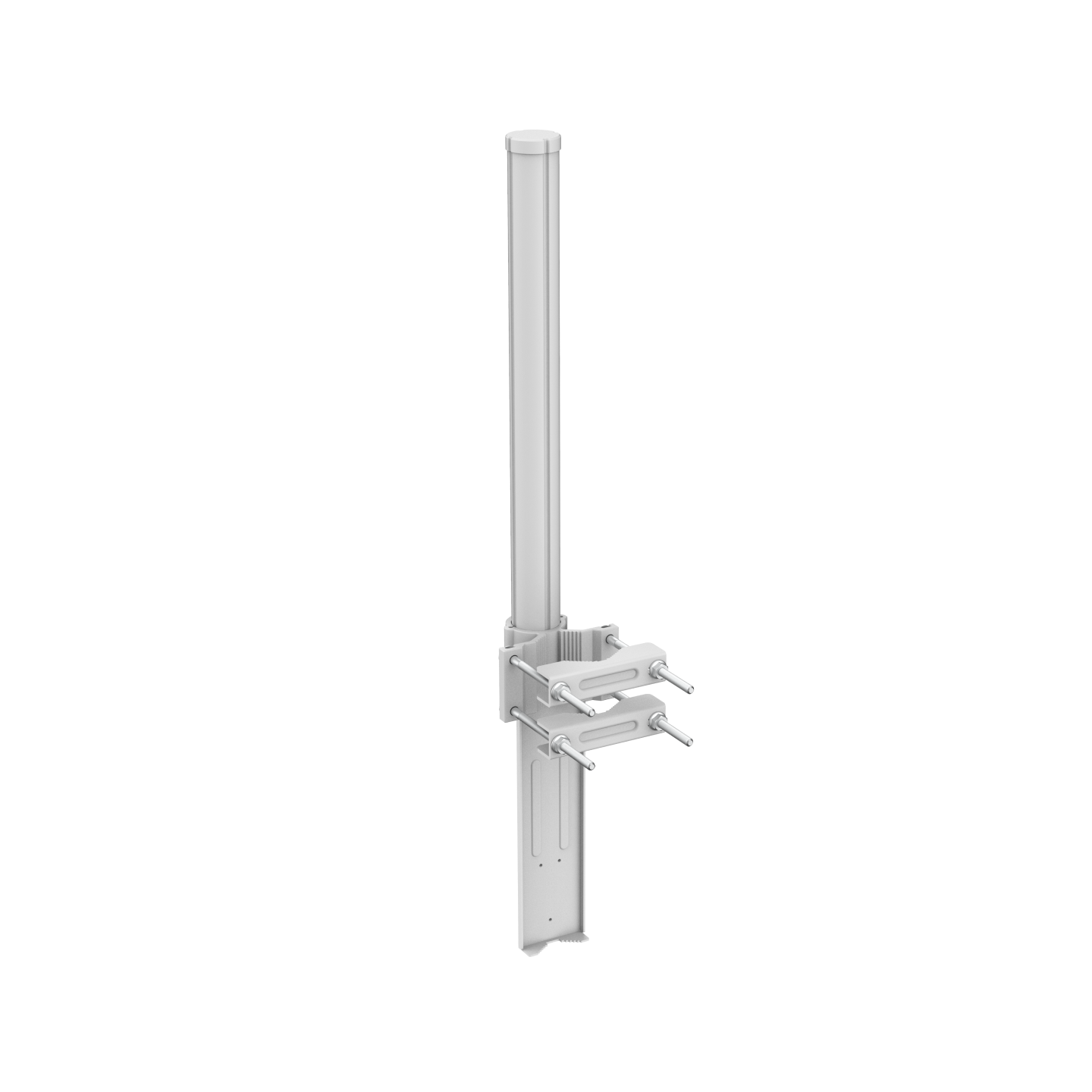

The Ruijie RG-ANT13-360 is a 360° omnidirectional antenna purpose-built for the RG-AirMetro Series wireless bridges, delivering broad, consistent coverage for point-to-multipoint (PTMP) deployments. It’s a professional-grade solution designed for WISP, CCTV, smart city, and industrial wireless infrastructure projects.

Featuring 5 GHz 2×2 MIMO technology with two spatial streams, the Ruijie RG-ANT13-360 delivers a gain of up to 13 dBi, with a horizontal angle of 360° and a vertical angle of 7°. It’s specifically designed to work with the RG-AirMetro550G-B base station for PTMP scenarios covering a range of up to 2 km.

Coverage flexibility is where this antenna truly stands out. With full 360° horizontal omnidirectional coverage, the RG-ANT13-360 provides broad and consistent signal distribution ideal for scenarios where devices need to connect from any direction, rather than a single focused sector.

This antenna is one of three available models in the RG-AirMetro Series lineup, giving network planners the flexibility to choose between directional sector coverage or full omnidirectional reach depending on the specific deployment scenario and site layout.

Built to withstand the toughest outdoor conditions, the RG-ANT13-360 carries an IP55 weatherproof rating along with wind survivability up to 220.32 km/h (137 mph), ensuring reliable operation through high winds, heavy rain, and extreme temperatures.

Deployment simplicity is built in as well. When paired with the RG-AirMetro550G-B base station, the antenna supports up to 32 PTMP links along with one-touch pairing for effortless setup, reducing installation complexity for field technicians.

Management is fully integrated with Ruijie’s all-in-one cloud platform, allowing administrators to easily monitor and manage connected devices and antennas, whether optimizing signal strength or performing a quick site survey to verify performance.

Long-term reliability is a core design consideration, with long MTBF (Mean Time Between Failures) reliability built into the antenna for demanding, continuous-operation wireless infrastructure applications.

Altogether, the Ruijie RG-ANT13-360 combines wide-area 360° coverage, dependable 2 km range, and rugged IP55 durability, making it a smart, cost-effective choice for organizations building outdoor PTMP wireless networks that need full-directional signal distribution.

RG-ANT13-360 Hardware Specifications

RG-ANT13-360 Antenna

RG-ANT13-360 Dimensions and Weight

RG-ANT13-360 Environment and Reliability
