Description

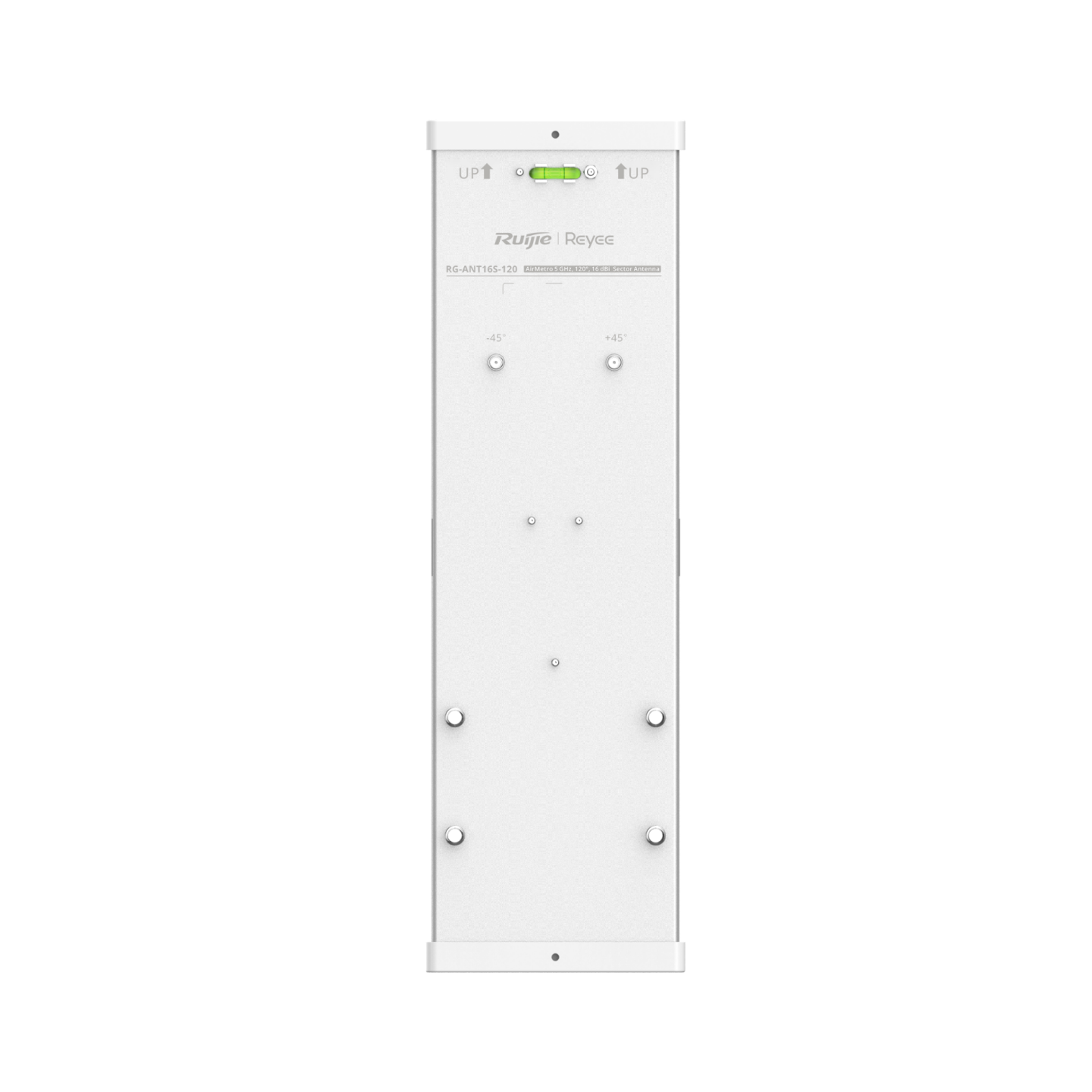

The Ruijie RG-ANT16S-120 is a 120° sector antenna purpose-built for the RG-AirMetro Series wireless bridges, designed to optimize point-to-multipoint (PTMP) wireless performance across wide outdoor areas. It’s a strong fit for WISP networks, CCTV backhaul, city road connectivity, and factory environments needing sector-based coverage.

Delivering a gain of up to 16 dBi, the Ruijie RG-ANT16S-120 provides superior signal strength and excellent noise immunity, ensuring reliable connectivity in medium-range wireless networks when paired with the RG-AirMetro550G-B base station, extending wireless reach up to 5 km.

Coverage precision is where this antenna excels. With a 120° horizontal beamwidth and 10° vertical beamwidth, the RG-ANT16S-120 is tailored for scenarios where sector-based coverage is needed, such as connecting multiple remote locations or providing focused signal distribution across a specific directional area.

Performance in congested environments is further enhanced through dual-slant polarization, which helps video surveillance streams, remote data feeds, and enterprise links maintain low latency and steady throughput even in busy RF conditions.

Built on 5 GHz technology with MIMO 2×2 support, the antenna is engineered specifically to work with the RG-AirMetro550G-B base station, delivering enhanced signal reliability and throughput across every connected PTMP link in the network.

Durability is a key strength for outdoor deployment. Carrying an IP55 weatherproof rating, the RG-ANT16S-120 also offers wind survivability up to 220.32 km/h (137 mph), with robust industrial-grade housing protecting internal components against harsh weather conditions, UV exposure, and heavy winds.

Installation is designed for speed and simplicity as well. With an efficient mounting system and support for one-touch pairing plus app-based pairing methods, setup is quick and straightforward, ensuring minimal downtime during deployment.

Management is fully integrated with Ruijie’s all-in-one cloud platform, giving administrators access to AI Heatmap, survey tools, and alignment tools that ensure precise, hassle-free installation and ongoing performance optimization.

Altogether, the Ruijie RG-ANT16S-120 combines high-gain 120° sector coverage, dependable 5 km range, and rugged IP55 durability, making it a smart, cost-effective choice for organizations building large-scale outdoor PTMP wireless networks.

RG-ANT16S-120 Hardware Specifications

RG-ANT16S-120 Antenna

RG-ANT16S-120 Dimensions and Weight

RG-ANT16S-120 Environment and Reliability
