Description

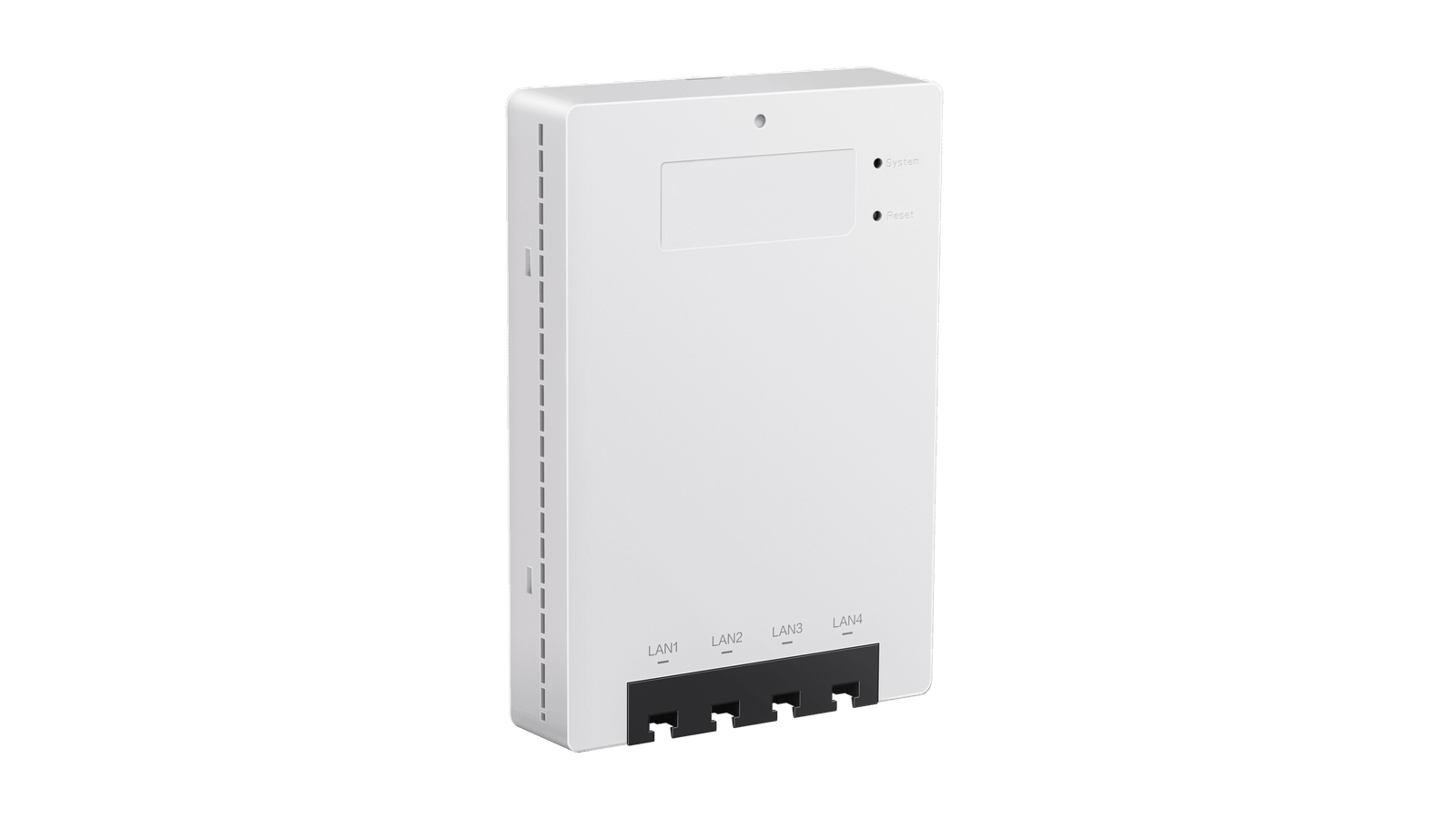

The Ruijie Reyee RG-RAP1260 is a dual-radio Wi-Fi 6 wall plate access point designed for small and medium indoor spaces like hotels, apartments, villas, residential buildings, and small business offices. Its gigabit-class performance and customizable design make it a versatile choice for businesses that value both function and aesthetics.
Compliant with the 802.11a/b/g/n/ac/ax standard, the Ruijie Reyee RAP1260 operates on 2.4 GHz and 5 GHz bands simultaneously, delivering a combined data rate of about 3000 Mbps—up to 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz. Dual-stream MU-MIMO ensures reliable performance even as multiple devices connect at once.
Wired connectivity is a strong point for this model. The access point provides four Gigabit Ethernet LAN ports, allowing clients to connect via Ethernet cable alongside wireless devices—ideal for hotel rooms or offices where guests or employees need both wired and wireless options simultaneously.
Design flexibility sets the Ruijie Reyee RG-RAP1260 apart from typical access points. It’s available with white, black, gold, grey, silver, and rose gold cover options, letting businesses match the device to their interior style rather than settling for a generic look.
Roaming performance is built for consistency, with support for 802.11k/v/r standards and Smart AI Roaming technology. This ensures devices move seamlessly between access points across a property without dropped connections or noticeable delays.
Deployment is simplified through Reyee Mesh technology, allowing additional access points to be added easily as coverage needs expand. This makes the It well suited for multi-room properties that need consistent Wi-Fi throughout.
Management is centralized through Ruijie Cloud, giving administrators a powerful standalone portal for network configuration, monitoring, and maintenance—all without needing to be physically on-site.
Terminal access speeds reach up to 900 Mbps, ensuring individual devices get fast, dependable throughput rather than just strong aggregate network numbers.
Power comes via 802.3at PoE, with maximum power consumption kept under 18W. This keeps installation straightforward, requiring only a single Ethernet cable from a PoE switch to power and connect the unit.
Altogether, the Ruijie Reyee RG-RAP1260 combines genuine Wi-Fi 6 performance, flexible design options, and dependable cloud management, making it a smart choice for hospitality, residential, and small business environments that want both style and substance.
RG-RAP1260 Product Information
| Product Type | Wall AP |
|---|
RG-RAP1260 Hardware Specifications
RG-RAP1260 Wi-Fi Radio
| Radio design | Dual-radio4 spatial streams● 2.4 GHz: 2 x 2, MU-MIMO● 5 GHz: 2 x 2, MU-MIMO |
|---|---|
| Maximum wireless data rate | 2974 Mbps |
| 6 GHz wireless data rate | No |
| 5 GHz wireless data rate | 2401 Mbps |
| 2.4 GHz wireless data rate | 573 Mbps |
RG-RAP1260 Antenna
| Antenna | 5 GHz: 1 built-in omnidirectional antennaIntegrated 2.4 GHz and 5 GHz: 2 built-in omnidirectional antennas |
|---|
RG-RAP1260 Dimensions and Weight
| Product dimensions (W x D x H) | 86 mm x 24 mm x 124 mm (3.39 in. x 0.94 in. x 4.88 in.) (excluding the mounting bracket) |
|---|---|
| Color | White |
| Weight | ≤ 0.26 kg (0.57 lbs.) (without packaging materials) |
RG-RAP1260 Port Specifications
| Number of 10/100/1000BASE-T ports | 5 |
|---|
RG-RAP1260 Power Supply and Consumption
| Power supply | PoE/PoE+ |
|---|---|
| Local power supply | No |
| Dimensions of the DC connector | No |
| PoE budget | No |
| Maximum power consumption | 12 W |
RG-RAP1260 Environment and Reliability
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Mounting options | Junction box |
| IP rating | IP41 |
RG-RAP1260 Software Specifications
RG-RAP1260 WLAN
| Maximum number of associated wireless clients | 64 (2.4 GHz)256 (5 GHz)256 (2.4 GHz and 5 GHz enabled) |
|---|---|
| Maximum number of devices that can be managed | 300 |
RG-RAP1260 IP Service
| IPv6 | Yes |
|---|
