Description

The Ruijie Reyee RG-RAP6262 is a high-performance outdoor Wi-Fi 6 access point designed for wide-area wireless coverage in demanding environments. Its distinctive UFO-style design combines rugged durability with long-range performance, making it well suited for large campuses, farms, resorts, parks, and public hotspots.

Delivering total throughput of up to 2.97 Gbps, the Ruijie Reyee RG-RAP6262 operates across dual bands with up to 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz. Powered by a revolutionary combination of OFDMA and 1024QAM under the 802.11ax standard, along with 160 MHz band support, it delivers Wi-Fi 6 ultra-high-speed performance even under heavy network load.

Coverage is where this access point truly excels. Equipped with 5 built-in high-gain antennas, it provides full coverage with a radius of up to 100 meters at 2.4 GHz and 300 meters at 5 GHz, making it ideal for open outdoor spaces where long-range signal matters most.

Connectivity options set the RG-RAP6262 apart from typical outdoor access points. With gigabit optical ports, it supports up to 20 km of transmission from a data center using single-mode fibers, alongside standard Gigabit Ethernet, giving network planners flexible options for long-distance deployments.

Built for harsh outdoor conditions, the enclosure is completely sealed, waterproof, dustproof, moisture-proof, and flame-retardant. Additional protections include wind erosion protection, a wide operating temperature range, and 4 kV surge protection, ensuring reliable operation through extreme weather.

Security is comprehensive as well, supporting PSK authentication, 802.1X authentication, WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, OWE, WPA3-SAE, and WPA2-PSK/WPA3-SAE—giving administrators modern, flexible options for protecting the wireless network.

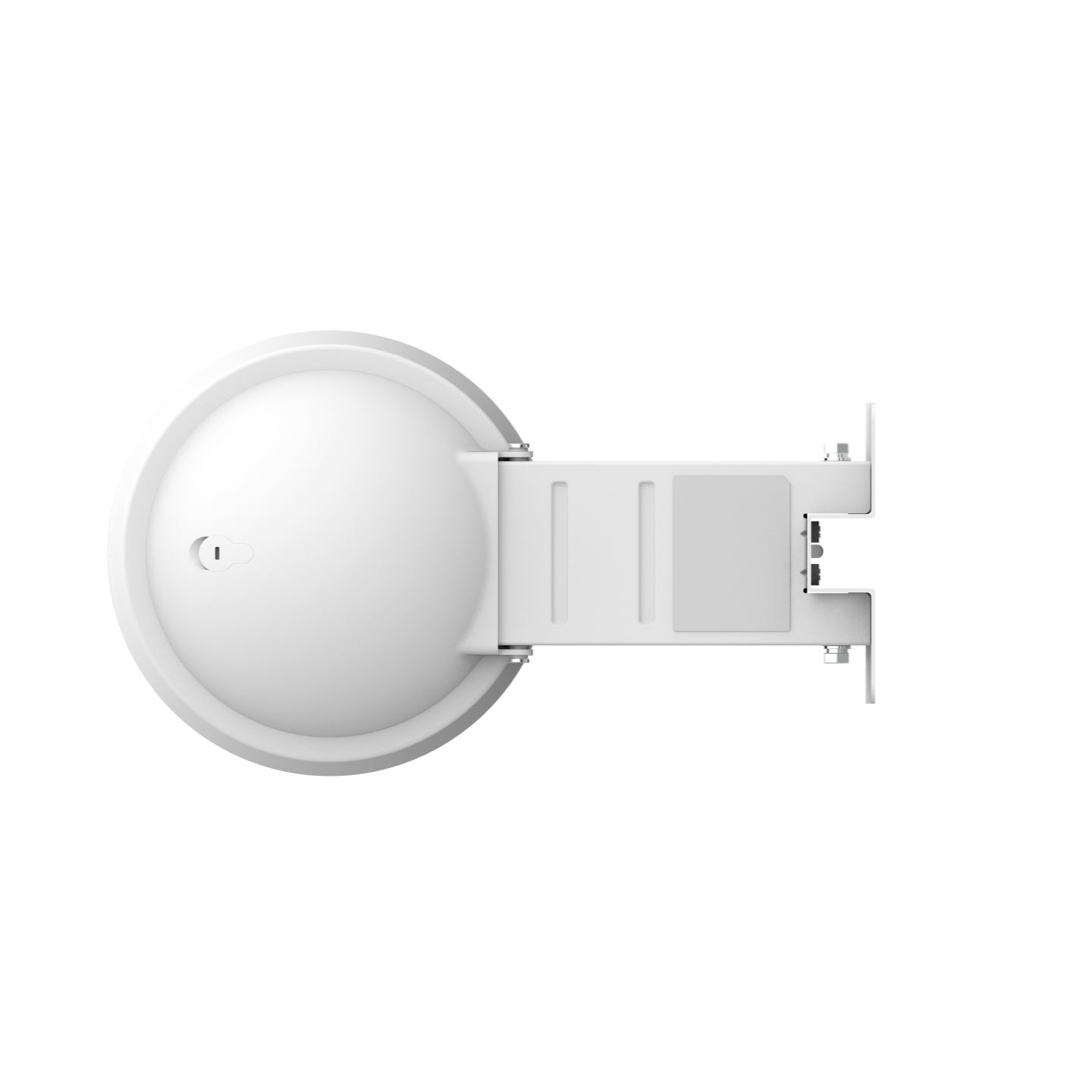

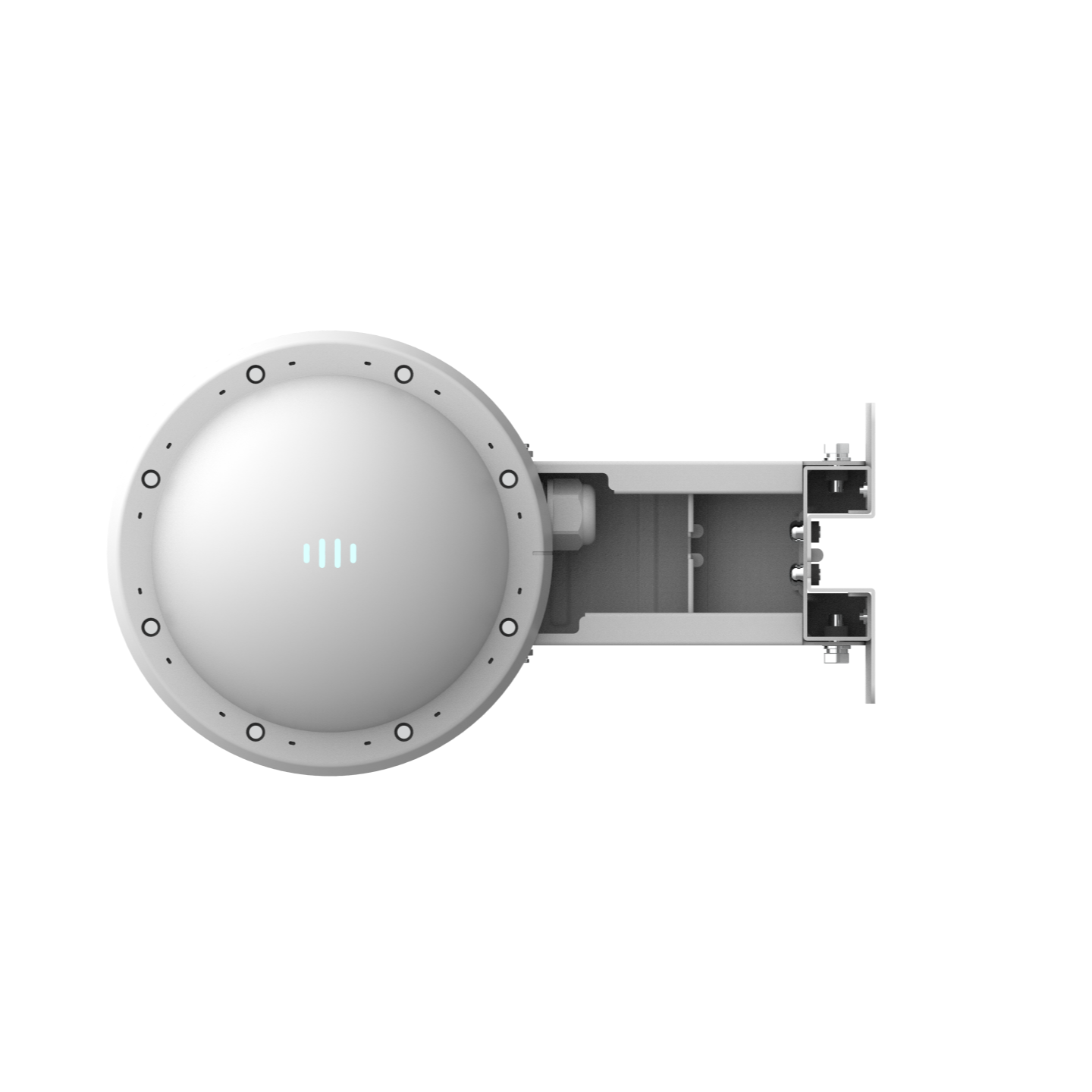

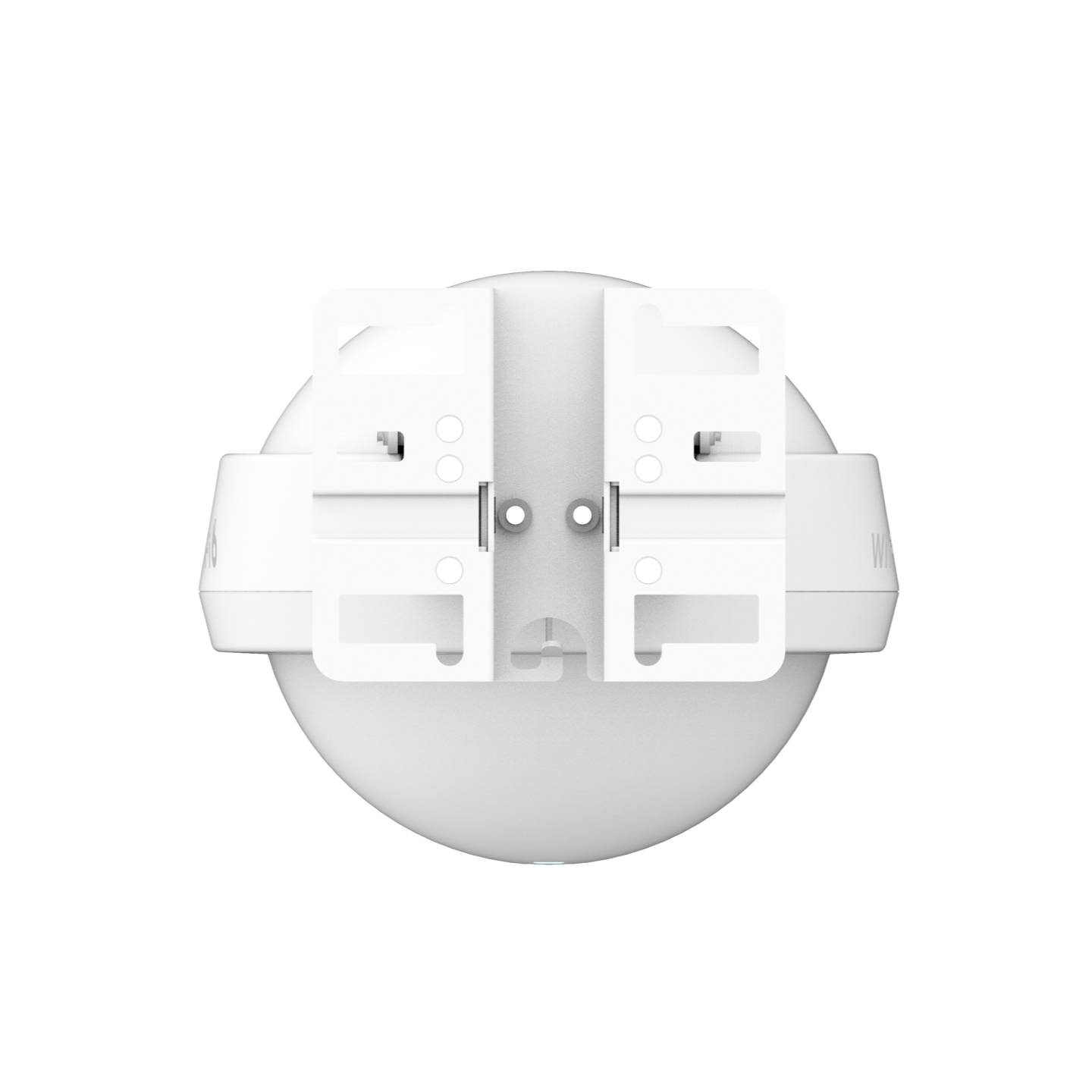

Installation is designed for elevated, exposed locations through a rack-separated mounting design, with plastic cable ties replaced by a durable iron hoop for secure, long-term outdoor mounting.

Management flexibility is extensive, supporting the Ruijie Reyee App, eWeb management, Ruijie Cloud, and SNMP, with configuration synchronized across the app, eWeb, and cloud platform for centralized, consistent network administration.

Network expansion is made simple through Reyee Mesh, allowing extra outdoor Wi-Fi devices to be added easily as coverage needs grow across larger properties.

Altogether, the Ruijie Reyee RG-RAP6262 combines genuine Wi-Fi 6 speed, long-range fiber connectivity, and rugged IP68 durability, making it a smart choice for organizations needing dependable, high-capacity outdoor wireless coverage.

RG-RAP6262 Product Information

Product Type	Outdoor AP

RG-RAP6262 Hardware Specifications

RG-RAP6262 Wi-Fi Radio

Radio design	Dual-radio4 spatial streams● 2.4 GHz: 2 x 2, MU-MIMO● 5 GHz: 2 x 2, MU-MIMO
Maximum wireless data rate	2974 Mbps
6 GHz wireless data rate	No
5 GHz wireless data rate	2401 Mbps
2.4 GHz wireless data rate	573 Mbps

RG-RAP6262 Antenna

Antenna	2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 3 built-in omnidirectional antennas

RG-RAP6262 Dimensions and Weight

Product dimensions (diameter x height)	Ø230 mm x 195 mm (Ø9.06 in. x 7.68 in.) (spherical device, excluding the mounting bracket)
Color	White
Weight	≤ 1.4 kg (3.09 lbs.) (without packaging materials)

RG-RAP6262 Port Specifications

Number of 10/100/1000BASE-T ports	1
Number of 1GE SFP ports	1

RG-RAP6262 Power Supply and Consumption

Power supply	● DC power adapter● PoE/PoE+Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.
Local power supply	Yes, one DC power connector (12 V, 2 A)
Dimensions of the DC connector	Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
PoE budget	No
Maximum power consumption	24 W
