Description
The TP-Link Archer AX23 AX1800 delivers super-fast dual-band wireless speeds of up to 1.8Gbps — 1201Mbps on the 5GHz band and 574Mbps on the 2.4GHz band — perfect for smooth 4K streaming, quick downloads, and everyday multi-device use. The TP-Link Archer AX23 AX1800 was engineered around a Next-Gen High-Efficiency Chipset, with resource allocation across CPU, RAM, and network processing tuned specifically to handle the sensitive, latency-heavy activities that most affect everyday network experience, such as video calls and online gaming.
The Archer AX23 communicates with more devices using OFDMA technology while simultaneously reducing lag, so busy households with multiple phones, laptops, and smart devices connected at once still get a stable experience. Four external high-gain antennas, combined with an improved algorithm and beamforming technology, enhance WiFi coverage performance throughout the home, delivering stronger signal even in harder-to-reach rooms.
The TP-Link Archer AX23 AX1800 includes a dual-core processor for fast, stable connections, along with WPA3 security for stronger network protection and Parental Controls with URL blocking and profile management for managing children’s internet access. It’s compatible with most ISP authentication modes, including L2TP and PPTP, and supports IPTV for smooth streaming service delivery. With OneMesh support, users can build a seamless whole-home WiFi network by adding a compatible TP-Link extender, and setup is handled quickly through the TP-Link Tether app. Below are the full technical specifications.
TP-Link Archer AX23 AX1800 WIRELESS |
|
|---|---|
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses

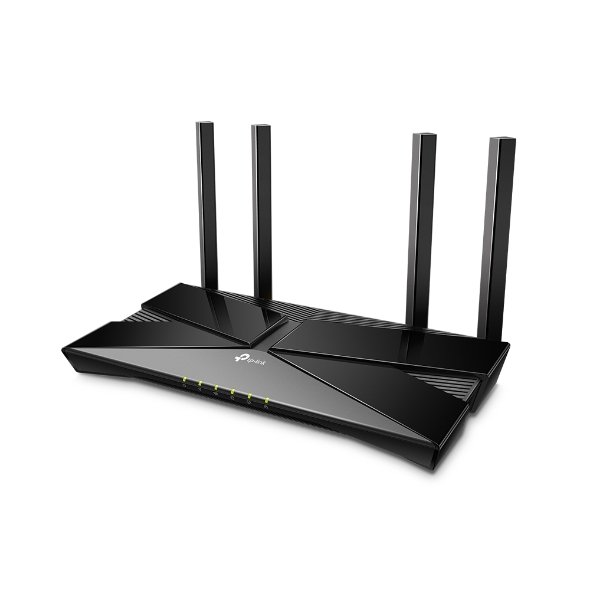

4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | High
Dual-Band Airtime Fairness 4 Streams |
| Working Modes | Router Mode Access Point Mode |
TP-Link Archer AX23 AX1800 SECURITY |
|
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| VPN Client | • OpenVPN Client • PPTP VPN Client • WireGuard VPN Client |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
TP-Link Archer AX23 AX1800 HARDWARE |
|
|---|---|

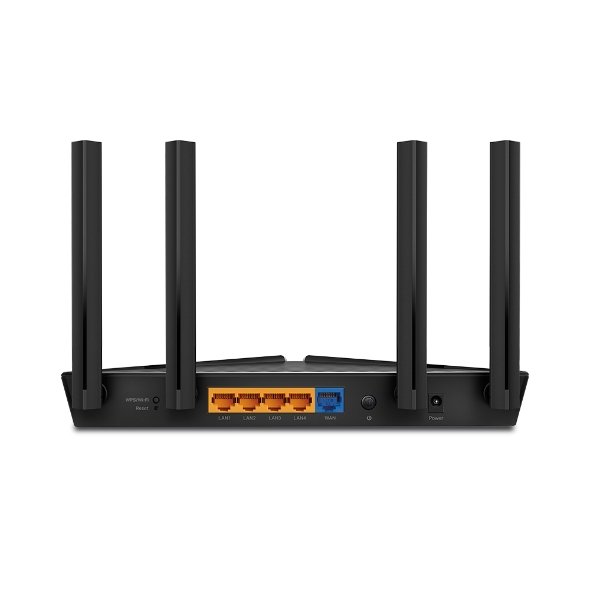

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
TP-Link Archer AX23 AX1800 SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability. Learn More> |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage Check Web Emulator> |
TP-Link Archer AX23 AX1800 OTHER |
|
|---|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DHCP Server App management |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TP-Link Archer AX23 AX1800 TEST DATA |
|
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity | EU Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT80_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11g 54Mbps:-75dbm 11n HT20_MCS0:-95dbm 11n HT20_MCS7:-75dbm 11n HT40_MCS0:-92dbm 11n HT40_MCS7: -72dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbmUS Version 5G 11a 6Mbps: -96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0: -95dbm 11ac VHT20_MCS8: -71dbm 11ac VHT40_MCS0: -92dbm 11ac VHT40_MCS9: -66dbm 11ac VHT80_MCS0: -89dbm 11ac VHT40_MCS9:-62dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -64dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -60dbm 11ax HE80_MCS0: -89dbm 11ax HE80_MCS11:-59dbm2.4G 11g 6Mbps:-96dbm 11a 54Mbps:-75dbm 11ac VHT20_MCS0:-95dbm 11ac VHT20_MCS8:-72dbm 11ac VHT40_MCS0:-92dbm 11ac VHT40_MCS9: -67dbm 11ax HE20_MCS0:-95dbm 11ax HE20_MCS11: -65dbm 11ax HE40_MCS0: -92dbm 11ax HE40_MCS11: -62dbm |
TP-Link Archer AX23 AX1800 PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 10.2 × 5.3 ×1.5 in (260.2 × 135.0 × 38.6 mm) |
| Package Content | Wi-Fi Router Archer AX23 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
