Description

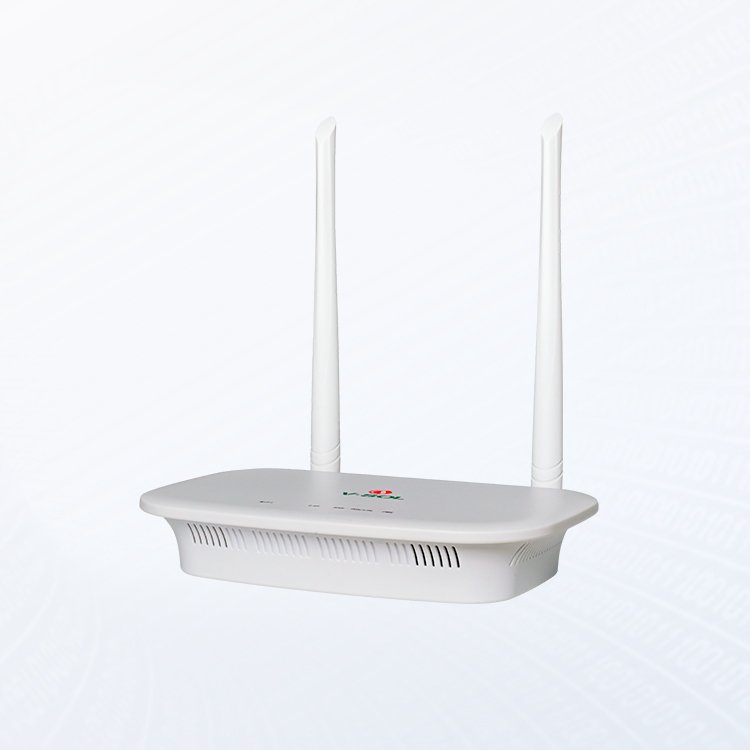

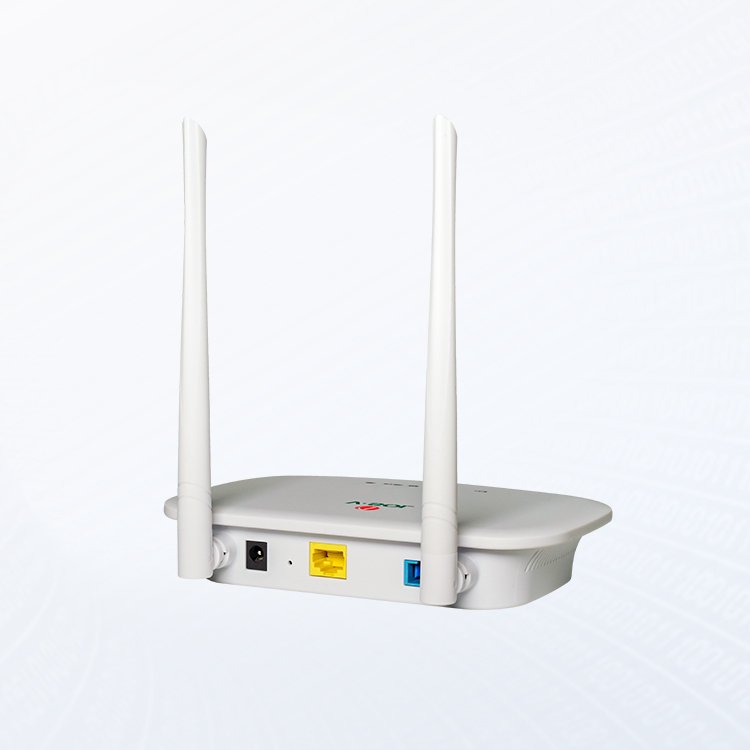

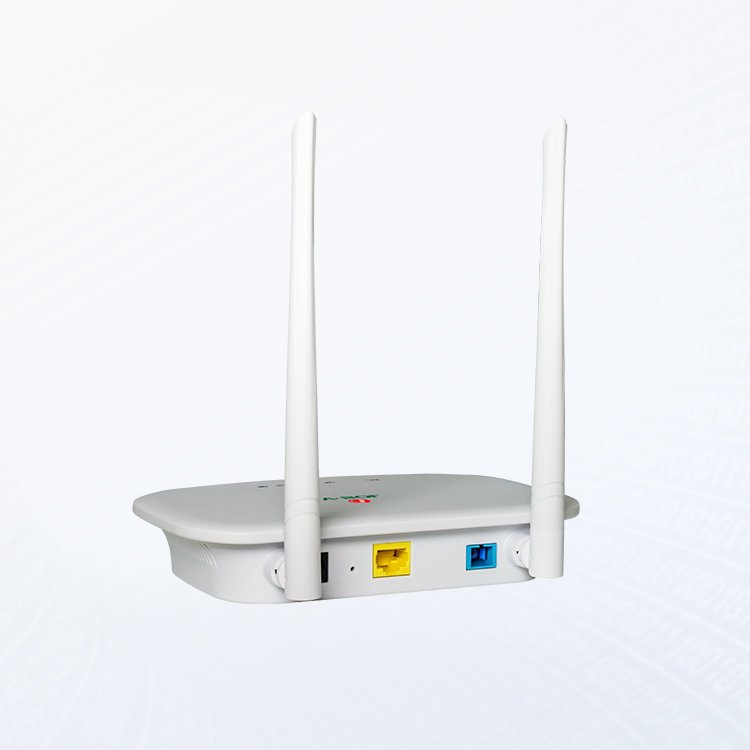

The VSOL V2801RGW 1GE WiFi 4 Router is a 1GE+WiFi 4 XPON ONT specially designed to meet the access requirements of telecom operators for FTTH and SOHO deployments. Built on a high-performance Realtek chipset, the Router supports dual-mode XPON operation, connecting to either GPON (ITU-T G.984.x) or EPON (IEEE 802.3ah) networks through a single SC/UPC optical port, giving ISPs the flexibility to deploy the same unit across different network types.It is best for small houses and offices with upto 10 or 15 devices.
It includes 1 Gigabit Ethernet port and 2.4GHz WiFi 4 (802.11b/g/n) connectivity, powered by a Realtek chipset with 64MB SDRAM, alongside robust Layer 2 and Layer 3 functionality for carrier-grade FTTH applications. It integrates routing, firewall, and WiFi capabilities in a single device, offering NAT, firewall protection (including DDoS defense), IPv4/IPv6, DHCP, PPPoE, DMZ, DDNS, VLAN (802.1Q), QinQ, and IGMP snooping — a fairly comprehensive feature set for a compact home ONU.
Built for reliable, hassle-free operation, the Router supports management through OAM, OMCI, Web, Telnet, and TR-069, making it particularly well suited to ISP deployments that need to configure and maintain large numbers of units remotely. It’s fully compliant with international standards such as IEEE802.3ah and ITU-T G.984, and offers QoS guarantees for smooth streaming, gaming, and browsing. Below are the full technical specifications.
VSOL V2801RGW Product Overview
| Specification | Details |
|---|---|
| Dimensions | 120 × 78 × 30 mm (L × W × H) |
| Net Weight | 0.15 kg |
| Power Adapter | DC 12V, 1A External AC-DC Power Adapter |
| Power Consumption | ≤6W |
| Interfaces | 1 × GE + WiFi 4 |

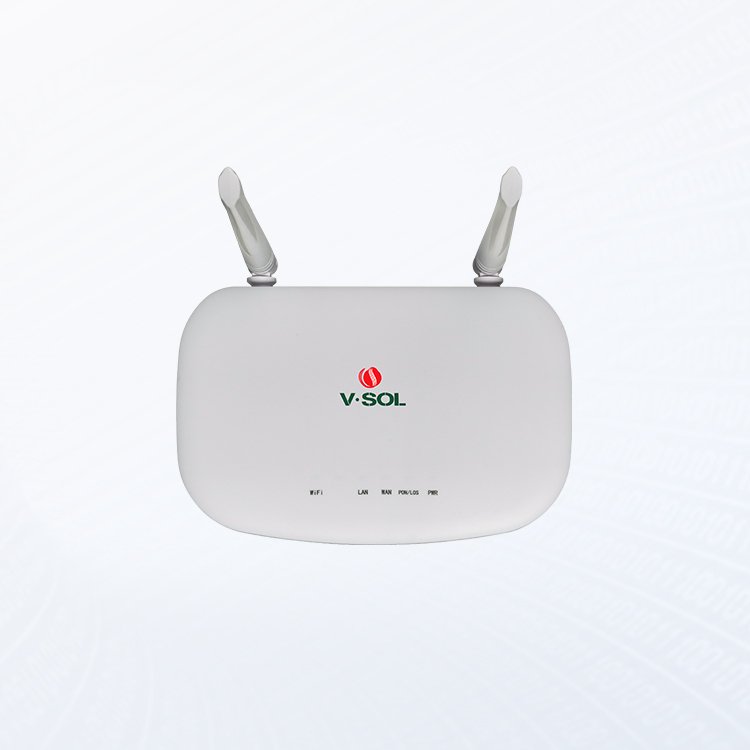

| Indicators | POWER, LOS, PON, LAN, WiFi |
VSOL V2801RGW Operating Conditions
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 5% to 95% (Non-condensing) |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 5% to 95% (Non-condensing) |
VSOL V2801RGW PON Interface
| Specification | Details |
|---|---|
| PON Port | 1 × XPON Port (EPON PX20+ & GPON Class B+) |
| Connector | SC Single Mode, SC/UPC |
| TX Optical Power | 0 to +4 dBm |
| RX Sensitivity | -27 dBm |
| Overload Optical Power | -3 dBm (EPON) / -8 dBm (GPON) |
| Transmission Distance | 20 km |
VSOL V2801RGW LAN Interface
| Specification | Details |
|---|---|
| LAN Port | 1 × GE Auto-Negotiation RJ45 Port |
VSOL V2801RGW WiFi Interface
| Specification | Details |
|---|---|
| WiFi Standard | IEEE 802.11b/g/n (WiFi 4) |
| Data Rate | Up to 300 Mbps |
| TX Power | 17 dBm / 16 dBm / 15 dBm |
| Channels | Supports 13 Channels |
VSOL V2801RGW Product Features
| Feature | Details |
|---|---|
| PON Mode | XPON Dual Mode |
| OLT Compatibility | Access to Mainstream EPON/GPON OLTs |
| Software Mode | Routing Mode |
VSOL V2801RGW WiFi Features
| Feature | Support |
|---|---|
| WiFi Authentication | WEP, WPA-PSK (TKIP), WPA2-PSK (AES) |
| Multiple SSID | Yes |
VSOL V2801RGW Firewall
| Feature | Support |
|---|---|
| Protection | DDOS, Filtering Based on ACL / MAC / URL |
VSOL V2801RGW Layer 2
| Feature | Support |
|---|---|
| 802.1D & 802.1ad Bridge | Yes |
| 802.1p CoS | Yes |
| 802.1Q VLAN | Yes |
VSOL V2801RGW Layer 3
| Feature | Support |
|---|---|
| IPv4 / IPv6 | Yes |
| DHCP Client / Server | Yes |
| PPPoE | Yes |
| NAT | Yes |
| DMZ | Yes |
| DDNS | Yes |
V2801RGW Multicast
| Feature | Support |
|---|---|
| IGMP | v1 / v2 / v3 |
| IGMP Snooping | Yes |
V2801RGW Security
| Feature | Support |
|---|---|
| Flow Control | Yes |
| Storm Control | Yes |
| Loop Detection | Yes |
V2801RGW Management
| Feature | Support |
|---|---|
| WEB | Yes |
| TELNET | Yes |
| OAM | Yes |
| OMCI | Yes |
| TR069 | Yes |
