Description

RG-ES207GS-PI-OD is a 7-port Gigabit Layer 2 smart cloud managed outdoor PoE switch built for CCTV, wireless, and remote network installations that need weatherproof reliability alongside flexible power input options. Made by Ruijie, this switch is well suited for outdoor surveillance points, remote access points, and installations where an indoor rack simply isn’t available.

At the core of RG-ES207GS-PI-OD is its IP65-rated housing, designed as an all-in-one outdoor switch with 4-in-1 integration, protecting effectively against harsh weather and environmental conditions. This weatherproof design eliminates the need for separate outdoor housings, keeping installations clean and straightforward.

Power flexibility is where RG-ES207GS-PI-OD truly stands out. Unlike AC-only outdoor switches, this model accepts either PoE or 12V DC input, giving installers genuine flexibility to power the switch itself from an existing PoE source or a standard DC adapter, depending on what’s already available at the installation site.

Connectivity is another strong point. RG-ES207GS-PI-OD provides five 10/100/1000BASE-T ports, with ports 1 to 4 supporting Power over Ethernet Out, along with two GE SFP ports for fiber uplinks, giving installers a practical mix of copper and fiber connections for outdoor cameras and access points.

Surveillance-focused features add real value too. RG-ES207GS-PI-OD includes camera troubleshooting capability, along with uninterrupted PoE power support, helping maintain stable operation for connected surveillance equipment even during switch restarts or network hiccups.

Durability is central to this switch’s design. RG-ES207GS-PI-OD adopts a fanless design and uses natural cooling, keeping the unit silent and low-maintenance while operating reliably in outdoor conditions. It also includes high-level weatherproofing backed by ±8kV PoE surge protection, protecting connected devices from electrical surges common in outdoor environments.

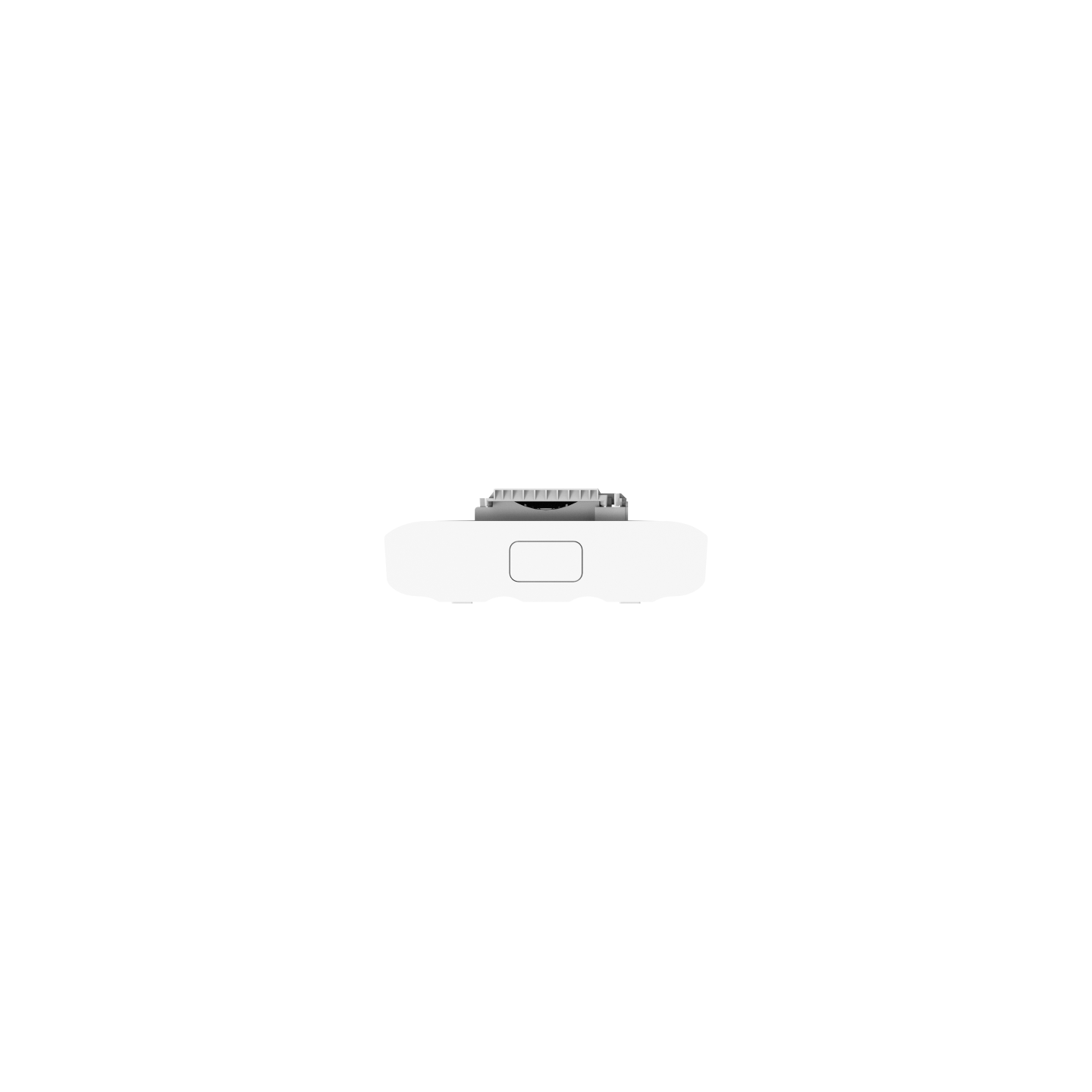

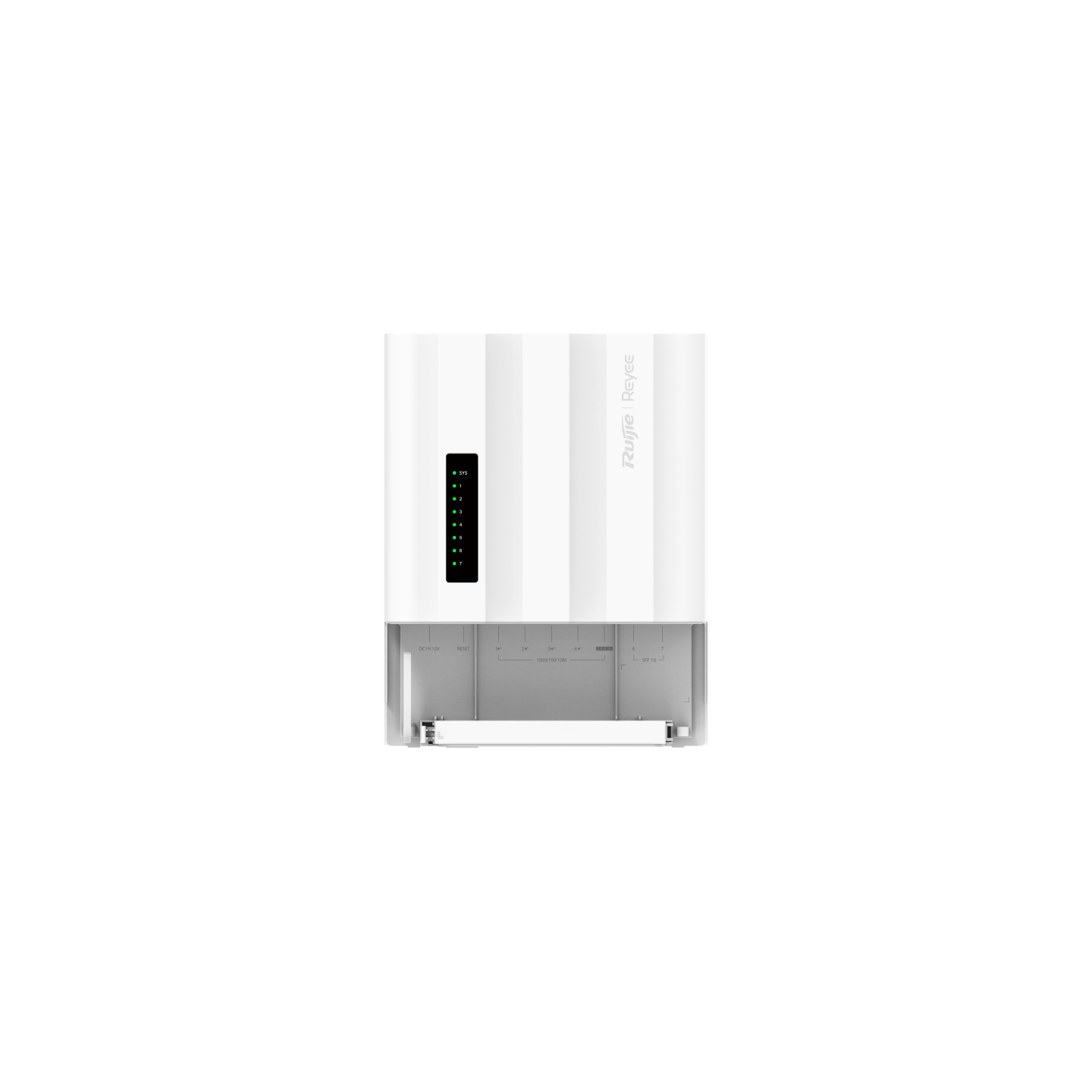

Physical design supports flexible mounting as well. RG-ES207GS-PI-OD includes an integrated mounting plate for pole mount or wall mount installation, along with multiple status LEDs on the front panel for straightforward, at-a-glance troubleshooting.

Management is genuinely convenient too. RG-ES207GS-PI-OD offers lifetime-free Ruijie Cloud management, letting administrators monitor and configure the outdoor network remotely from anywhere, at any time, without frequent site visits.

Whether deployed for outdoor CCTV coverage or a remote wireless access point, RG-ES207GS-PI-OD delivers dependable weatherproof PoE connectivity, flexible PoE/DC power input, and convenient cloud management in one outdoor-ready switch.

Full technical specifications are listed below.

RG-ES207GS-PD-OD PRODUCT INFORMATION

Feature	Specification
Product Category	Layer 2
Warranty	3 years

RG-ES207GS-PD-OD PORT SPECIFICATIONS

Feature	Specification
Total number of RJ45 ports	5
Number of 10/100/1000BASE-T ports	5
Total number of optical ports	2
Number of 1GE SFP ports	2

RG-ES207GS-PD-OD POWER SUPPLY AND CONSUMPTION

Feature	Specification
Number of PoE In ports	1
PoE In standard	• IEEE 802.3af (PoE) • IEEE 802.3at (PoE+) • IEEE 802.3bt (PoE++)
Number of PoE Out ports	4
Number of PoE/PoE+ Out ports	4
PoE budget	• PoE input (PoE++) at 90 W: 60 W • PoE input (PoE++) at 60 W: 40 W • PoE input (PoE+) at 30 W: 19 W • PoE input (PoE) at 15.4 W: 6 W
PoE power pins	1–2 (+), 3–6 (-)
PoE watchdog	Yes
