Description
The Ruijie Reyee RG-RAP6262(G) is a high-power outdoor omnidirectional access point built for demanding open-air environments such as villages, villas, parks, scenic spots, and public squares. Its distinctive ‘UFO’ design blends Wi-Fi 6 technology with a sleek, weather-resistant form factor suited for long-term outdoor deployment.
Adhering to the 802.11ax standard, the Ruijie Reyee RG-RAP6262(G) delivers an access rate of up to 1200 Mbps on 5 GHz plus 575 Mbps on 2.4 GHz, combining for a maximum of 1775 Mbps. Dual-band dual-stream MU-MIMO ensures consistent performance across both frequency bands simultaneously.
Coverage is a defining strength of this access point. Equipped with built-in omnidirectional high-gain antennas offering 3 dBi on 2.4 GHz and 5 dBi on 5 GHz, it delivers a coverage radius of up to 300 meters, connecting up to 256 simultaneous users across a single access point.
Built to withstand harsh outdoor conditions, the device features IP68 protection, making it completely sealed, waterproof, dustproof, moisture-proof, and flame-retardant. It also includes wind erosion protection and operates reliably across a wide temperature range of -30°C to +65°C.
Lightning and surge protection are built directly into the unit, with a high-profile lightning protector integrated into the device and both the antenna port and power port supporting 6kV lightning protection—eliminating the need for additional external protection hardware in most deployments.

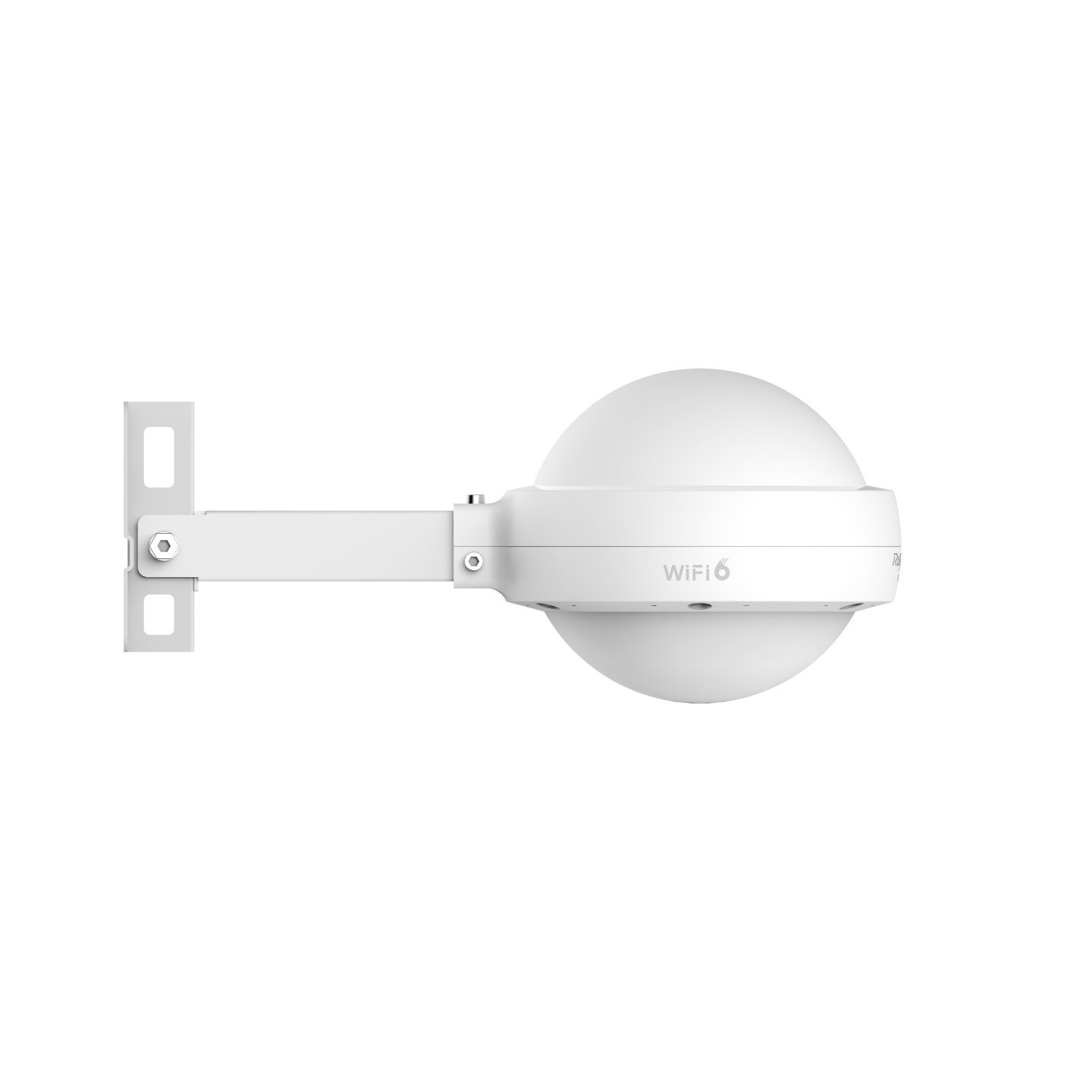

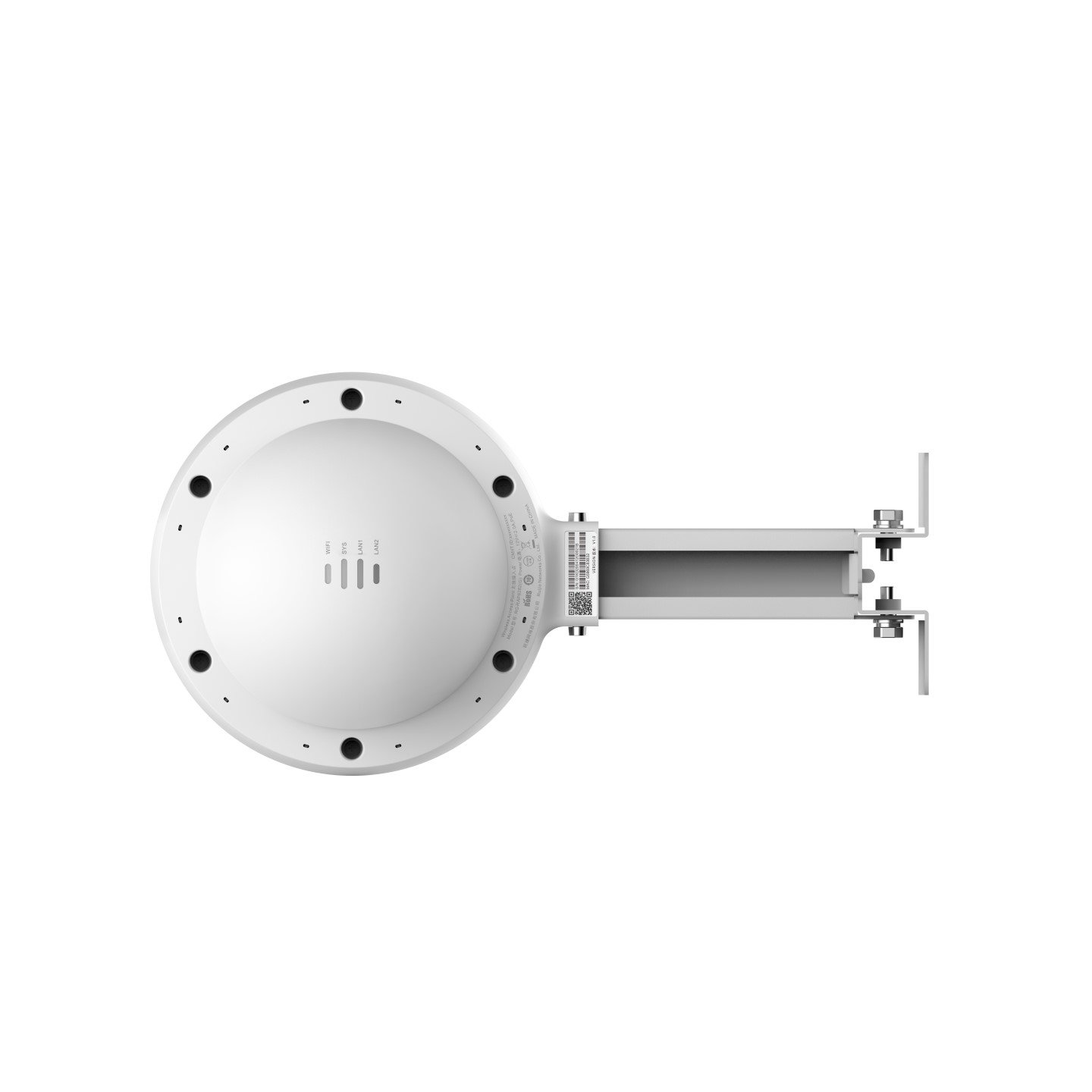

Installation is designed for elevated, exposed locations. The access point features a rack-separated mounting design for easy and secure installation on walls or poles, with cable glands and waterproof caps ensuring all connections remain sealed against the elements.
Network expansion is simplified through Reyee Mesh technology, allowing additional outdoor access points to be added easily to extend coverage across larger open spaces without extensive additional cabling.
Management is centralized through the Ruijie Cloud platform, offering remote monitoring, Wi-Fi management, cloud portal authentication, and wireless intelligent optimization—all accessible via web browser or mobile app, and included with free cloud management.
Altogether, the Ruijie Reyee RG-RAP6262(G) combines genuine Wi-Fi 6 performance, rugged IP68 durability, and long-range omnidirectional coverage, making it a smart, dependable choice for businesses needing outdoor wireless connectivity that withstands the elements.
RG-RAP6262(G) Product Information
RG-RAP6262(G) Hardware Specifications
RG-RAP6262(G) Wi-Fi Radio
| Radio design |
Dual-radio4 spatial streams● 2.4 GHz: 2 x 2, MU-MIMO● 5 GHz: 2 x 2, MU-MIMO |
| Maximum wireless data rate |
1774 Mbps |
| 6 GHz wireless data rate |
No |
| 5 GHz wireless data rate |
1201 Mbps |
| 2.4 GHz wireless data rate |
573 Mbps |
RG-RAP6262(G) Antenna
| Antenna |
2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 2 built-in omnidirectional antennas |
RG-RAP6262(G) Dimensions and Weight
| Product dimensions (diameter x height) |
Ø200 mm x 166 mm (Ø7.87 in. x 6.54 in.) (spherical device, excluding the mounting bracket) |
| Color |
White |
| Weight |
≤ 1.2 kg (2.65 lbs.) (without packaging materials) |
RG-RAP6262(G) Port Specifications
| Number of 10/100/1000BASE-T ports |
2 |
RG-RAP6262(G) Power Supply and Consumption
| Power supply |
● DC power adapter● PoE+Note: If both the DC power adapter and PoE+ are available for power supply, the DC power adapter is preferred. |
| Local power supply |
Yes, one DC power connector (12 V, 2 A) |
| Dimensions of the DC connector |
Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.) |
| PoE budget |
No |
| Maximum power consumption |
18 W |
RG-RAP6262(G) Environment and Reliability
| Operating temperature |
–30°C to +65°C (–22°F to +149°F) |
| Mounting options |
Wall/Pole |
| IP rating |
IP68 |
RG-RAP6262(G) Software Specifications
RG-RAP6262(G) WLAN
| Maximum number of associated wireless clients |
64 (2.4 GHz)256 (5 GHz)256 (2.4 GHz and 5 GHz enabled) |
| Maximum number of devices that can be managed |
300 |
RG-RAP6262(G) IP Service
RG-RAP6262(G) Order Information
| RG-RAP6262(G) Access Point |
1 |
| User Manual |
1 |
| Pole Clamps |
2 |
| Mounting Plate |
1 |
| Expansion Bolts (M8*60) |
4 |
| M8*20 Screws |
2 |
| Cable Glands (Pre-installed) |
2 |
| Connecting Rod (Pre-installed) |
1 |
| Warranty Card |
1 |
| Package Weight |
2.94 kg |
| Package Dimension (w x d x h) |
466 mm x 257 mm x 217 mm |
