Description

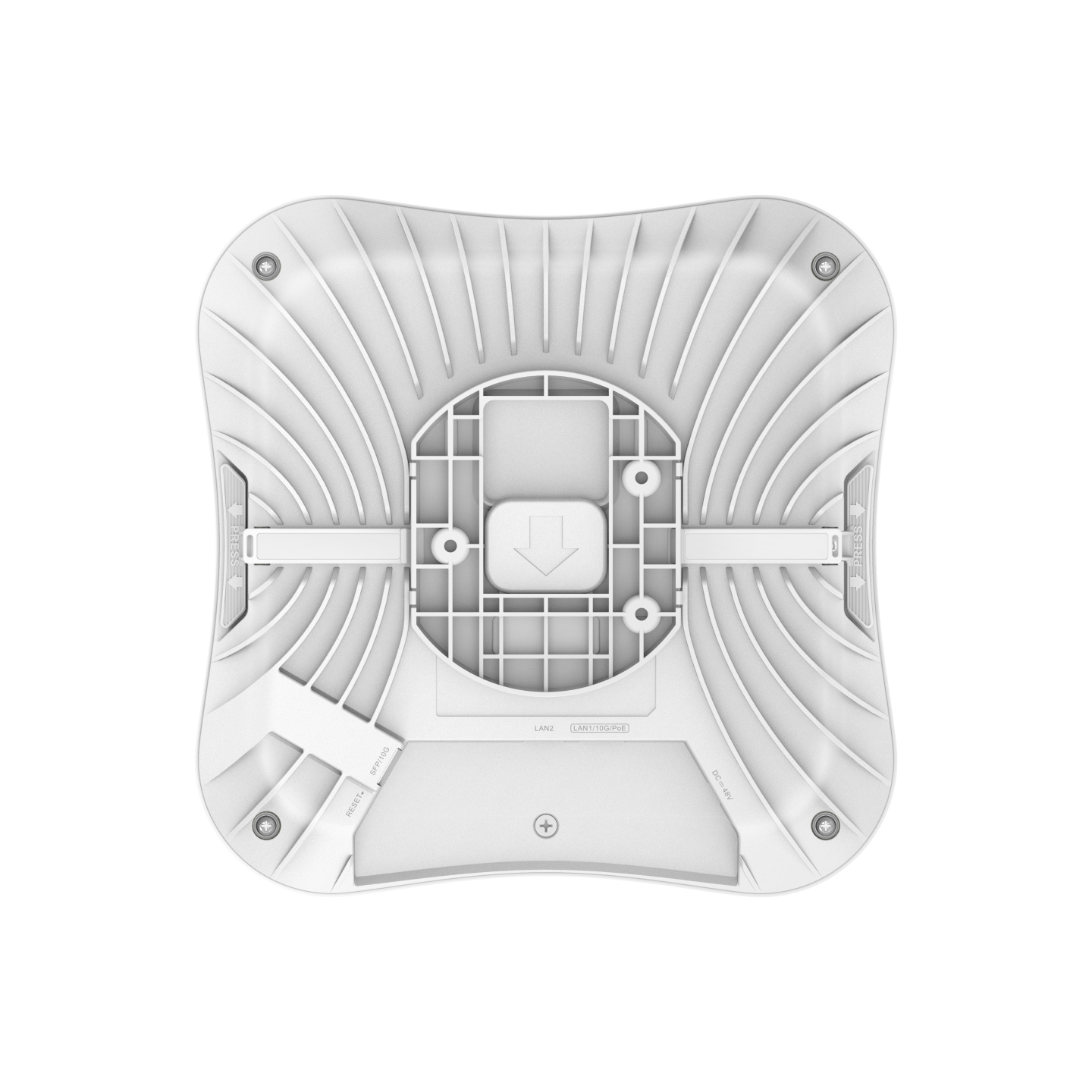

The Ruijie Reyee RG-RAP73HD is a flagship Wi-Fi 7 ceiling access point built for businesses that demand ultra-fast, high-capacity wireless performance. As part of Ruijie’s Reyee series, it brings enterprise-grade wireless technology into a simple, cloud-managed package suited for offices, retail spaces, and high-density environments.

At the heart of this access point is a tri-radio design supporting 2.4 GHz, 5 GHz, and 6 GHz bands simultaneously. With 12 spatial streams and 4×4 MU-MIMO on each radio, the Ruijie Reyee RG-RAP73HD delivers a combined maximum wireless data rate of up to 18,658 Mbps, making it one of the most powerful access points in its class.

Speed alone isn’t the only advantage. The device supports up to 1024 concurrent client connections, making it ideal for crowded environments like conference halls, classrooms, and open-plan offices where dozens of devices compete for bandwidth at once.

Connectivity options are equally impressive. The access point includes a 10GBase-T Ethernet port alongside a 10GBase-X SFP+ port, ensuring the wired backhaul never becomes a bottleneck for the wireless speeds it delivers. A secondary Gigabit Ethernet port adds further flexibility for network configurations.

Management is designed to be effortless through Ruijie’s Reyee unified networking platform. Administrators can monitor, configure, and troubleshoot the access point remotely using the Ruijie Cloud app, with support for firmware upgrades pushed directly through the cloud.

Roaming performance is another highlight. The Ruijie Reyee RG-RAP73HD supports Smart K/V Roaming along with seamless Layer 2 and Layer 3 roaming, allowing devices to move across access points without dropped connections or noticeable delays—critical for VoIP calls and video streaming.

Power flexibility is built in as well, with support for IEEE 802.3af/at/bt PoE standards, plus a DC power option for locations without PoE infrastructure. Maximum power consumption stays under 60W, keeping installation requirements straightforward.

Security and network organization are handled through Self-Organized Network (SON) technology, allowing multiple access points to form a mesh automatically, reducing setup complexity for larger deployments.

Additional features like AP Portal support and advertisement-ready authentication make this access point a strong fit for businesses that also want guest network management and marketing capabilities built into their wireless infrastructure.

Altogether, the Ruijie Reyee RG-RAP73HD combines cutting-edge Wi-Fi 7 speed, high client capacity, and simplified cloud management, making it a future-ready choice for growing businesses upgrading their wireless network.

RG-RAP73HD Product Information

RG-RAP73HD Wi-Fi Radio

RG-RAP73HD Antenna

RG-RAP73HD Dimensions & Weight

RG-RAP73HD Port Specifications

RG-RAP73HD Power Supply & Consumption

RG-RAP73HD Environment & Reliability

RG-RAP73HD WLAN

RG-RAP73HD IP Service
