Description

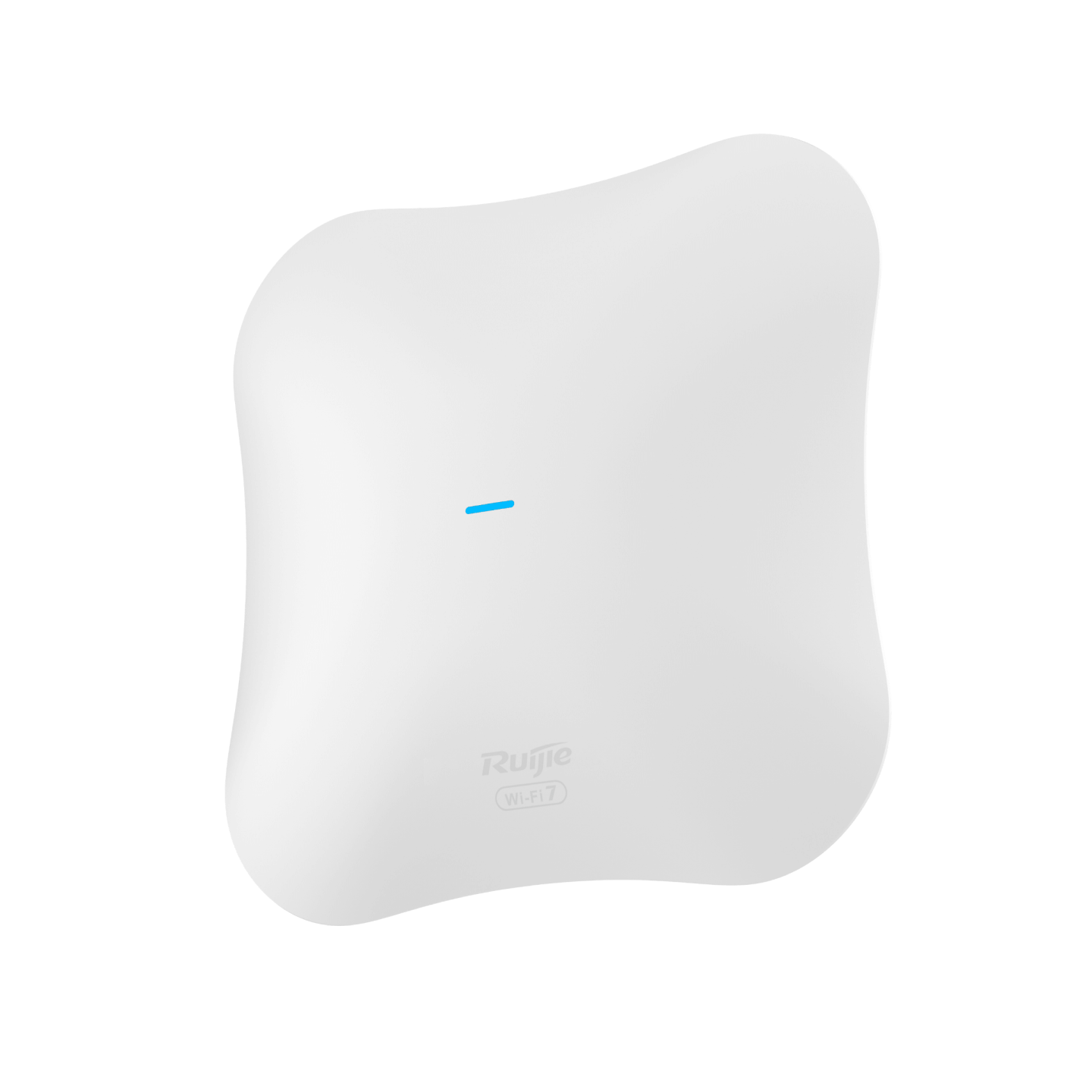

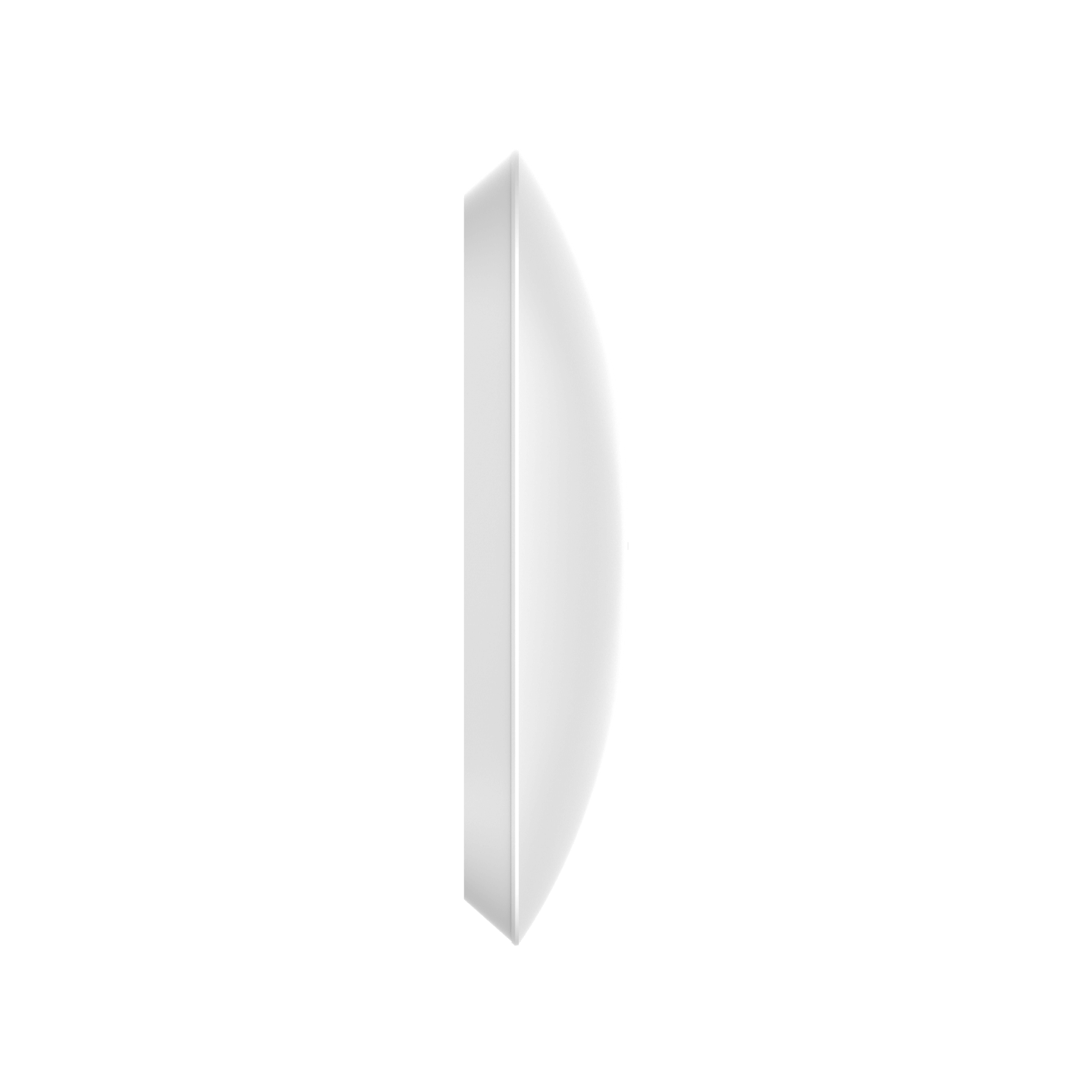

The Ruijie Reyee RG-RAP73Pro is a tri-band Wi-Fi 7 ceiling access point designed for high-density indoor environments where speed and reliability cannot be compromised. It’s built for general education, higher education, government, finance, and business settings that need to support large numbers of simultaneous wireless connections.

Supporting 2.4 GHz, 5 GHz and 6 GHz frequency bands, the RG-RAP73Pro delivers a data rate of up to 13,346 Mbps. As a genuine Wi-Fi 7 device, it features advanced technologies such as a wider channel width (320 MHz), higher-order modulation (4K-QAM), more flexible spectrum utilisation (Multi-RU), enhanced stability (MLO) and multi-AP collaboration, which together enable low-latency, high-throughput performance. Broadbandbuyer Broadbandbuyer

Client capacity is a major strength of this access point, with support for up to 600 maximum clients (200 recommended), making it well suited for lecture halls, conference centers, and other crowded indoor spaces. EnSurity

Coverage is enhanced through 8 internal omnidirectional antennas, delivering 3.6 dBi on 2.4GHz, 5.9 dBi on 5GHz, and 5.2 dBi on 6GHz, ensuring strong, consistent signal across larger rooms and open layouts. EnSurity

Connectivity is future-ready, offering 1 × 2.5GbE PoE+ port alongside 1 × SFP+ slot, giving network administrators flexible options for both copper and fiber uplinks depending on the deployment environment. EnSurity

Compatibility spans a wide range of standards, with the device able to work in IEEE 802.11be, IEEE 802.11ax, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, and IEEE 802.11n modes simultaneously, ensuring smooth interoperability with both new and older client devices. Broadbandbuyer

Management is centralized and effortless through Ruijie Cloud, which enables wireless client access control, operations and maintenance, and secure access control from a single dashboard, with support for the WebUI, mobile app, and cloud platform. Broadbandbuyer

Power flexibility is also built in, as the AP supports both local power supply and Power over Ethernet (PoE), providing flexible installation options based on the actual environment, specifically PoE+ 802.3bt at 30W or a DC 54V/0.55A adapter. Broadbandbuyer

Altogether, the Ruijie Reyee RG-RAP73Pro combines genuine Wi-Fi 7 speed, high client capacity, and flexible cloud management, making it a smart choice for organizations needing dependable, scalable wireless coverage in demanding, high-density environments.

RG-RAP73Pro Product Information

Product Type	Ceiling AP

RG-RAP73Pro Hardware Specifications

RG-RAP73Pro Wi-Fi Radio

Radio design	Tri-radio8 spatial streams● 2.4 GHz: 2 x 2, MU-MIMO● 5 GHz: 3 x 3, MU-MIMO● 6 GHz: 3 x 3, MU-MIMO
Maximum wireless data rate	13657 Mbps
6 GHz wireless data rate	8646 Mbps
5 GHz wireless data rate	4323 Mbps
2.4 GHz wireless data rate	688 Mbps

RG-RAP73Pro Antenna

Antenna	2.4 GHz: 2 built-in omnidirectional antennas5 GHz: 3 built-in omnidirectional antennas6 GHz: 3 built-in omnidirectional antennas

RG-RAP73Pro Dimensions and Weight

Product dimensions (W x D x H)	220 mm x 220 mm x 45 mm (8.66 in. x 8.66 in. x 1.77 in.) (excluding the mounting bracket)
Color	White
Weight	≤ 1.1 kg (2.43 lbs.) (without packaging materials)

RG-RAP73Pro Port Specifications

Number of 10/100/1000/2500BASE-T ports	1
Number of 10GE SFP+ ports	1

RG-RAP73Pro Power Supply and Consumption

Power supply	● DC power adapter● PoE+/PoE++Note: If both the DC power adapter and PoE+/PoE++ are available for power supply, the DC power adapter is preferred.
Local power supply	Yes, one DC power connector (54 V, 0.55 A)
Dimensions of the DC connector	Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Length: 10 mm (0.39 in.)
PoE budget	No
Maximum power consumption	30 W
