Description

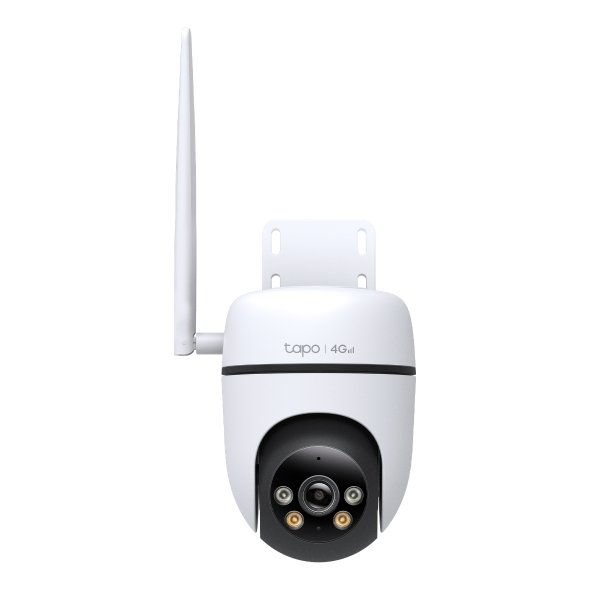

Tapo C501GW is a wired, pan/tilt security camera built for people who need reliable monitoring in locations without stable Wi-Fi. Made by TP-Link’s Tapo brand, this camera connects through 4G LTE, making it well suited for garages, farms, warehouses, and vacation homes where a home network simply isn’t available.
At the core of Tapo C501GW is its 1080P Full HD resolution, delivering sharp images and vivid detail with 1920 x 1080 pixels. This ensures footage stays clear and usable across a wide range of monitoring scenarios.
Connectivity is where Tapo C501GW truly stands out. Backed by TP-Link’s 4G networking expertise, the camera connects reliably through 4G LTE networks using a standard SIM card, eliminating the need for a home router entirely. For added flexibility, it also supports PoE and Ethernet, plus a detachable antenna that can be swapped for a more powerful option depending on signal strength.
Coverage is another strong point. Tapo C501GW offers 360° horizontal and up to 139° vertical viewing range, eliminating blind spots around a property. Users can track motion in real time or activate patrol mode to keep the camera cruising among multiple customized points for continuous coverage.
Smart detection is built directly into the system. Tapo C501GW uses AI to identify people, pets, and vehicles, while also detecting tampering and line crossing, sending alerts only when necessary. This helps keep notifications precise and free of unnecessary interruptions.
Night monitoring is handled through Starlight Color Night Vision, using an F1.6 aperture lens, starlight sensor, and built-in spotlights to reveal vivid colors even in low light. A smart mode automatically activates color night vision the moment a person is detected.
Durability is equally important outdoors. With an IP66 weatherproof rating, Tapo C501GW performs reliably in rain, dust, and heat, making it dependable in nearly any outdoor environment or climate.
Storage stays flexible too, supporting local microSD recording up to 512GB or optional Tapo Care cloud storage with 30-day video clip history. For everyday convenience, Tapo C501GW works with Amazon Alexa and Google Assistant, and lets users monitor SIM card data usage directly through the Tapo app.
Whether securing a remote farmhouse or a warehouse without internet access, Tapo C501GW delivers dependable 1080P clarity, smart AI detection, and true Wi-Fi-independent connectivity in one camera.
Full technical specifications are listed below.
Tapo C501GW CAMERA
| Feature | Specification |
| Image Sensor | 1/2.9” CMOS Sensor |
| Lens |
• Focal Length: 3.17 mm • Aperture: F1.65 • Field of View: 122° (Diagonal), 105° (Horizontal), 59° (Vertical) |
| Night Vision |
• 850 nm IR LED (98 ft / 29.9 m) • Starlight Color Night Vision |
| Interface & Button |
• 1× DC Port • 1× Ethernet Port, PoE • 1× RESET Button • 1× MicroSD Card Slot (Up to 512GB) • 1× Nano-SIM Card Slot |
| Pan/Tilt Range |
• Pan Mechanical Range: 340° (360° Pan Coverage)
• Tilt Mechanical Range: 90° (149° Tilt Coverage) |
Tapo C501GW VIDEO & AUDIO
| Feature | Specification |
| Maximum Resolution | 1920 × 1080 px (1080p Full HD) |
| Frame Rate | 15/20/25/30 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
Tapo C501GW STORAGE
| Feature | Specification |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
Tapo C501GW DETECTION and NOTIFICATIONS
| Feature | Specification |
| AI Detection |
• Motion Detection • Person Detection • Pet Detection • Vehicle Detection • Tamper Detection • Line-Crossing Detection • Meow Detection • Bark Detection • Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification |
• System Notification
• System Notification with Snapshot (Tapo Care Services) |
Tapo C501GW NETWORK & 4G
| Feature | Specification |
| Network Connectivity | 3G/4G LTE / LAN Cable |
| 4G Frequency |
• LTE-FDD: B1/3/5/7/8/20/28 • LTE-TDD: B38/40/41 |
| RTSP | Yes |
| ONVIF | Yes (Only Available in Ethernet Mode) |
Tapo C501GW POWER
| Feature | Specification |
| Power Source |
• 12V DC Power Adapter • PoE: 802.3 af/at |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | DC Power: 12V, 1A |
Tapo C501GW GENERAL
| Feature | Specification |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Android 4.4 or higher |
| Mounting Options |
• Ceiling-Mounted • Wall-Mounted • Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions (W × D × H) |
• Camera: 5.15 × 3.31 × 4.57 in (130.8 × 84.0 × 116.1 mm)
• With antennas & bracket: 5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm) |
| Package Content |
• Tapo C501GW Camera • Detachable Antenna • DC Power Adapter • Mounting Template • Mounting Bracket • Mounting Anchors • Bracket Screws • Mounting Screws • Waterproof Seal • Waterproof Cable Attachments • Quick Start Guide |
| Certifications | CE, NTRA, RCM, VCCI, NCC, BSMI, ROHS |
