Description

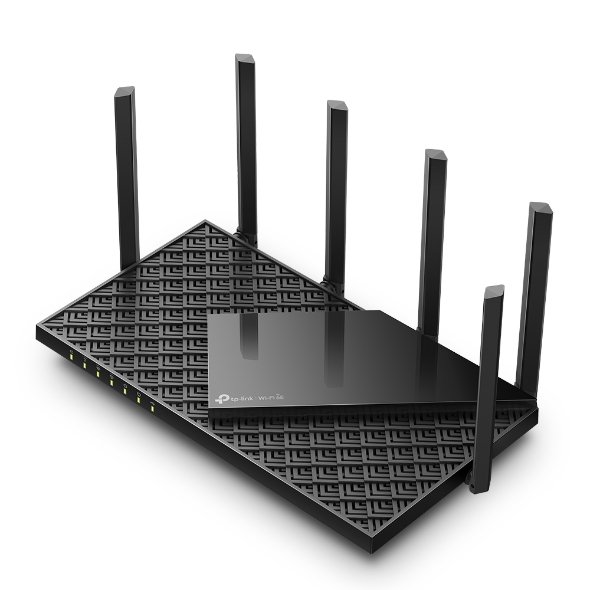

The TP-Link Archer AXE75 AXE5400 delivers Tri-Band WiFi speeds up to 5400Mbps, splitting bandwidth across the 2.4GHz, 5GHz, and brand-new 6GHz bands. The TP-Link Archer AXE75 AXE5400 unlocks the 6GHz band’s biggest advantage: a congestion-free frequency free from interference by older devices, offering more bandwidth, faster speeds, and near-zero latency for compatible WiFi 6E devices like newer phones and laptops.
Powered by a 1.7GHz Quad-Core CPU and 512MB of memory, the Archer AXE75 handles enormous amounts of data while minimizing latency, even under heavy multi-device use. OFDMA technology increases network capacity by up to 4 times, enabling simultaneous transmission to more devices for more responsive gaming and video chatting, while six external antennas combined with Beamforming technology detect connected devices and concentrate signal strength toward them, especially in previously hard-to-reach areas of the home.
The TP-Link Archer AXE75 AXE5400 includes TP-Link HomeShield for enhanced network security and control, along with WPA3 encryption and support for VPN clients including OpenVPN, PPTP, and L2TP for secure remote access. A SuperSpeed USB 3.0 port offers up to 10x faster transfer speeds than USB 2.0 for easy file sharing, and the router is EasyMesh and OneMesh-compatible, letting households add a compatible extender to build seamless whole-home multi-gigabit mesh WiFi. Setup and management are handled through the TP-Link Tether app, with OTA updates enabling quick, one-click firmware upgrades to keep security current. Below are the full technical specifications.
TP-Link Archer AXE75 AXE5400 WIRELESS |
|
|---|---|
| Standards and Protocols | IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AXE5400 6 GHz: 2402 Mbps (802.11ax) 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 2-3 Bedroom Houses
6× Fixed High-Performance Antennas Beamforming High-Power FEM |
| WiFi Capacity | Very High
Tri-Band OFDMA Airtime Fairness DFS 6 Streams |
| Working Modes | Router Mode Access Point Mode |
TP-Link Archer AXE75 AXE5400 SECURITY |
|
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer GatewayHomeShield Security Real-Time IoT Protection |
| Guest Network | 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN Server PPTP VPN Server L2TP VPN Server |
| VPN Client | Open VPN Client PPTP VPN Client L2TP VPN Client |
| WiFi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
TP-Link Archer AXE75 AXE5400 HARDWARE |
|
|---|---|
| Processor | 1.7 GHz Quad-Core CPU |

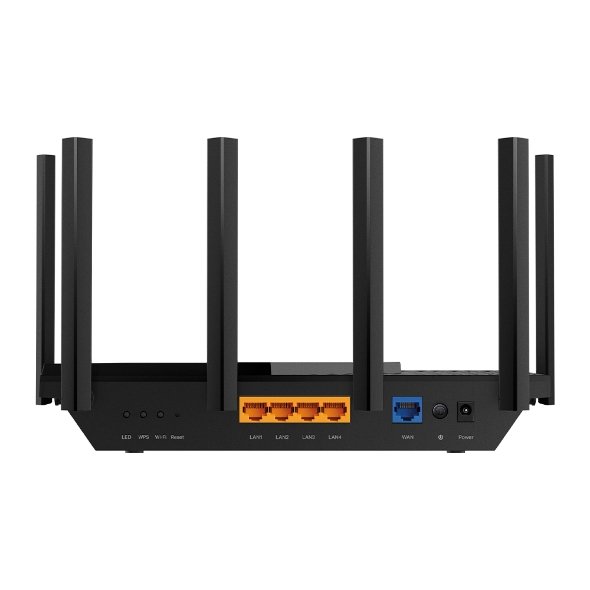

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| USB Support | 1× USB 3.0 Port
Supported Partition Formats: Supported Functions: |
| Buttons | Wi-Fi On/Off Button Power On/Off Button LED On/Off Button WPS Button Reset Button |
| Power | 12 V ⎓ 2.5 A |
TP-Link Archer AXE75 AXE5400 SOFTWARE |
|
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| OneMesh™ | OneMesh™ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products. Learn More> All OneMesh Products> |
| EasyMesh | Mesh networking creates smooth, fast, stable roaming. Archer C50 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Learn More> |
| Parental Controls | HomeShield Parental Controls
Custom Profiles |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | Auto Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP Virtual Server |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management Features | Tether App Webpage |
TP-Link Archer AXE75 AXE5400 OTHER |
|
|---|---|
| Network Services Enabled by Default | Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DHCP Server App management |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing |
TP-Link Archer AXE75 AXE5400 TEST DATA |
|
|---|---|
| WiFi Transmission Power | FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz) |
| WiFi Reception Sensitivity | 2.4 GHz: 11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm 11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm 5 GHz: 11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm 11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm 11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm 11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm 6 GHz: 11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm 11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm 11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm 11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm |
TP-Link Archer AXE75 AXE5400 PHYSICAL |
|
|---|---|
| Dimensions (W×D×H) | 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm) |
| Package Content | Wi-Fi Router Archer AXE75 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
