Description

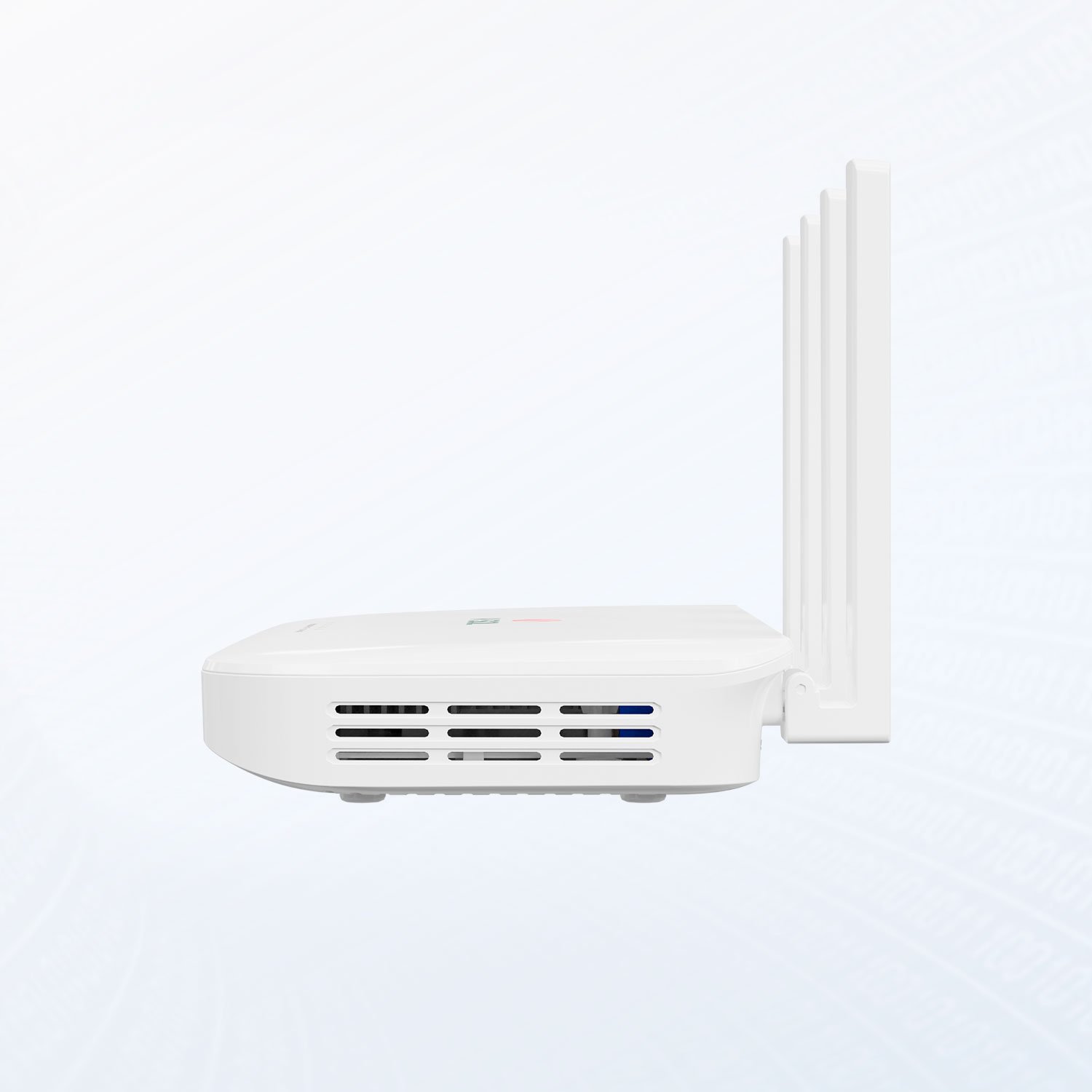

The VSOL V2804AX AX1800 WiFi 6 XPON Router is a broadband access device specially designed to meet the needs of fixed network operators delivering FTTH connectivity to homes and small businesses. It functions as a complete home gateway unit, combining a fiber terminal, router, and wireless access point in a single device, so customers don’t need a separate router sitting alongside their ONT. The VSOL V2804AX AX1800 WiFi 6 XPON Router is built on high-performance chip solutions, giving it enough processing power to handle demanding household networks without bottlenecking.

On the connectivity side, the V2804AX supports dual-mode XPON technology, automatically detecting and connecting to either EPON or GPON networks, which gives ISPs universal deployment flexibility rather than needing separate hardware for each PON standard. It includes 4 Gigabit Ethernet LAN ports for connecting PCs, NAS devices, set-top boxes, or smart TVs, along with a USB 3.0 port for file or printer sharing across the network. This port combination means the VSOL V2804AX AX1800 WiFi 6 XPON Router can serve as the single hub for both wired and wireless devices throughout a home or small office.

WiFi performance is where this model stands out. The VSOL V2804AX AX1800 WiFi 6 XPON Router supports IEEE802.11b/g/n/ac/ax WiFi 6 technology across both 2.4GHz and 5GHz bands, delivering faster speeds, lower latency, and more stable connections compared to older WiFi standards. Compared to the previous generation AC1200 ONT, the AX-series rate is more than 52% higher, while OFDMA and MU-MIMO support help the unit handle multiple connected devices simultaneously without the slowdown that typically happens when a household has many phones, laptops, and smart devices competing for bandwidth at once. A single SSID for dual-band operation also simplifies the connection experience for end users, since devices can move between bands automatically without needing to manually switch networks.

Security and network management are equally well covered. The VSOL V2804AX AX1800 WiFi 6 XPON Router includes a built-in firewall with DDoS protection, along with ACL, MAC, and URL filtering for more granular control over what’s allowed on the network. It supports IPv4/IPv6 dual stack, PPPoE, DHCP, NAT, DMZ, and DDNS, plus VLAN tagging with support for up to 8 VLANs and IGMP v1/v2 multicast with snooping — a fairly extensive feature set for a device primarily aimed at homes and small offices. QoS support with 802.1p tagging, 4 queues, and SP/WRR scheduling helps prioritize latency-sensitive traffic like video calls or gaming over background downloads.

For ISPs managing large customer bases, the VSOL V2804AX AX1800 WiFi 6 XPON Router supports remote configuration and monitoring through OAM/OMCI, Web GUI, Telnet, and TR-069, allowing service providers to push updates and troubleshoot issues without dispatching a technician for every customer request. It’s compliant with international standards including IEEE802.3ah and ITU-T G.984, and offers QoS guarantees to keep different types of traffic running smoothly at the same time. Compact and lightweight at roughly 250mm x 145mm x 36mm and 0.34kg, it’s easy to install in a typical home or small office setting without taking up excessive space. Below are the full technical specifications.

VSOL V2804AX Product Overview

VSOL V2804AX Operating Conditions

VSOL V2804AX PON Interface

VSOL V2804AX User Interface

VSOL V2804AX Operation & Management

VSOL V2804AX Internet Connection

VSOL V2804AX Multicast

VSOL V2804AX Wi-Fi

VSOL V2804AX Layer 2

VSOL V2804AX Layer 3

VSOL V2804AX Firewall
